outdoor P4 P5 P6 P8 P10 led display screen led video wall for advertising water-proof fixed outdoor led
outdoor P4 P5 P6 P8 P10 led display screen led video wall for advertising water-proof fixed outdoor led
outdoor P4 P5 P6 P8 P10 led display screen led video wall for advertising water-proof fixed outdoor led
outdoor P4 P5 P6 P8 P10 led display screen led video wall for advertising water-proof fixed outdoor led
outdoor P4 P5 P6 P8 P10 led display screen led video wall for advertising water-proof fixed outdoor led
outdoor P4 P5 P6 P8 P10 led display screen led video wall for advertising water-proof fixed outdoor led
outdoor P4 P5 P6 P8 P10 led display screen led video wall for advertising water-proof fixed outdoor led
outdoor P4 P5 P6 P8 P10 led display screen led video wall for advertising water-proof fixed outdoor led
outdoor P4 P5 P6 P8 P10 led display screen led video wall for advertising water-proof fixed outdoor led
outdoor P4 P5 P6 P8 P10 led display screen led video wall for advertising water-proof fixed outdoor led
outdoor P4 P5 P6 P8 P10 led display screen led video wall for advertising water-proof fixed outdoor led
outdoor P4 P5 P6 P8 P10 led display screen led video wall for advertising water-proof fixed outdoor led
Specifications
Brand Name :
JuCaiYuan
Model Number :
P4 P5 P6 P8 P10
Certification :
CE/ROHS/FCC
Place of Origin :
Shenzhen,China
MOQ :
1 Square meter
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000sqm per month
Delivery Time :
3-25 working days after finished the payment
Packaging Details :
Strong Carton Box, Standard Wood Case, Flight Case etc
product :
Transparent P3.91mm LED Display
Brightness :
Over 5000nits
Warranty :
2 Years
Application :
Indoor
Technology :
Frontage-lighting
Screen Dimension :
Customized
Material :
Acrylic Frame Rental Led Wall
High Light :
transparent led curtain display, glass wall led display
Description
Overview
Quick Details
Application:
Outdoor advertising, Outdoor Advertising
Color:
full color
Panel Size:
customized
Pixel Pitch:
8mm
Place of Origin:
Shenzhen,China
Model Number:
P8
Brand Name:
JUCAIYUAN
Product name:
P8 Outdoor Led Display
Display Function:
Video
Screen Dimension:
Custom Made
Certificate:
CE ROHS FCC
Module size:
160mm*320mm
Warranty:
2 Years
Brightness:
6000cd/sqm
Refresh rate:
1920 Hz
Cabinet size:
960x960
Packaging & Delivery
Packaging Details
1.Carton case
2.Wooden case
3.Flight case
4.Customized
Picture Example:
Lead Time:
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 5 To be negotiated
Product Description
Technical Parameters
LED Configuration
SMD3535
SMD3535
Pixel Pitch(mm)
8
10
Module Resolution(W×H)
40*20
32*16
Module weight(kg)
0.53
0.6
Modules per Cabinet (W×H)
3*6
3*6
Cabinet Resolution(W×H)
120*120
96*96
Cabinet Dimension(mm)
960(W)×960(H)×93(D)
960(W)×960(H)×93(D)
Cabinet Weight(kg)
30
32
Pixel Density(dots/m2)
15625
10000
Brightness(nits)
≥4500-6000
≥5500-6500
View Angle(H/V°)
170/120
170/120
Brightness/Color Uniformity
≥97%
≥97%
Max(Average) Power Consumption(W/m2)
800(280)
850(240)
Power Supply
AC110/220V,Frequency 47-63(Hz)
AC110/220V,Frequency 47-63(Hz)
Refresh Frequency(Hz)
50&60
50&60
Drive Mode
Constant Current Drive, 5Scan
Constant Current Drive,4 Scan
Gray Level
16384
16384
Refresh rate(Hz)
≥1920
≥1920
Color Processing Digit
12-16bit
12-16bit
Functions
2K HD,4K Ultra HD Videos
2K HD,4K Ultra HD Videos
Lifespan(hrs)
100,000H
100,000H
Operating Temperature/Humidity(℃/RH)
'-20 – 60 / 10%-95%RH
'-20 – 60 / 10%-95%RH
Best Selling

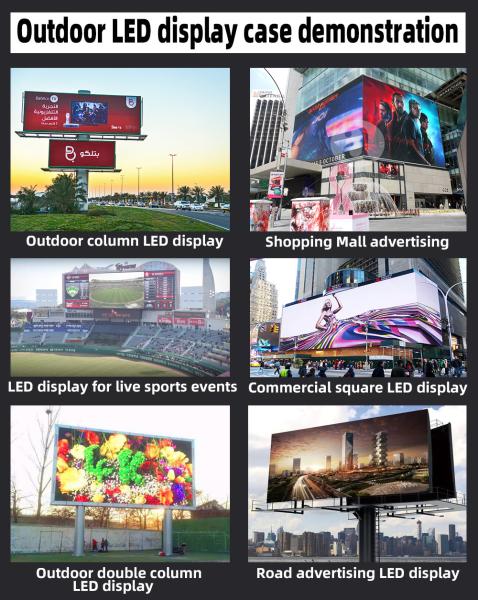

Outdoor LED display installation types:
Product packaging
Product case
Product tags

p20 outdoor led display screen

,

p20 outdoor led screen

,

led display outdoor screen
