Specifications
Brand Name :
JuCaiYuan
Model Number :
P2.976 P3.91 P4.81 P2.604
Certification :
CE/ROHS/FCC
Place of Origin :
Shenzhen,China
MOQ :
1 Square meter
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000sqm per month
Delivery Time :
3-25 working days after finished the payment
Packaging Details :
Strong Carton Box, Standard Wood Case, Flight Case etc
product :
Transparent P3.91mm LED Display
Brightness :
Over 5000nits
Warranty :
2 Years
Application :
Indoor
Technology :
Frontage-lighting
Screen Dimension :
Customized
Material :
Acrylic Frame Rental Led Wall
High Light :
transparent led curtain display, glass wall led display
Description
Overview
Quick Details
Application:
outdoor advertising or stage rental
Color:
Full color
Panel Size:
500*500 mm
Pixel Pitch:
3.91 mm
Place of Origin:
Guangdong, China
Model Number:
out--500-3.91
Brand Name:
JUCAIYUAN
Brightness:
5000MCD
Certificate:
CE ROHS FCC
Warranty:
2 Years
Module size:
250*250mm
Cabinet material:
Alumium
IP rate:
IP65
Service life:
100000H
Cabinet size:
500*500mm
Input Voltage:
AC100~240V 50 /60 HZ
Scan mode:
1/16
Supply Ability
Supply Ability
1 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
Wooden Case / Flight Case
Port
Yantian, Shekou
Picture Example:
Lead Time:
Quantity(Pieces) 1 - 4 5 - 100 101 - 300 >300
Est. Time(days) 7 15 25 To be negotiated
Products Description
Outdoor Frontal Service Rental LED display
ABX500 Rental LED display is outdoor Frontal service LED screen.
Frontal and Rear maintenance is available for LED Panels and Power Box.
Perfect Design with new technology and elegant appearance,
-Higher Utilisation
-Support More Applications
-Better ROI( return on investment)
Lightweight
-Panel weight only 7 Kg
-More than 20% Lighter than regular products
Quick
-One man installation
-Quickly service power box

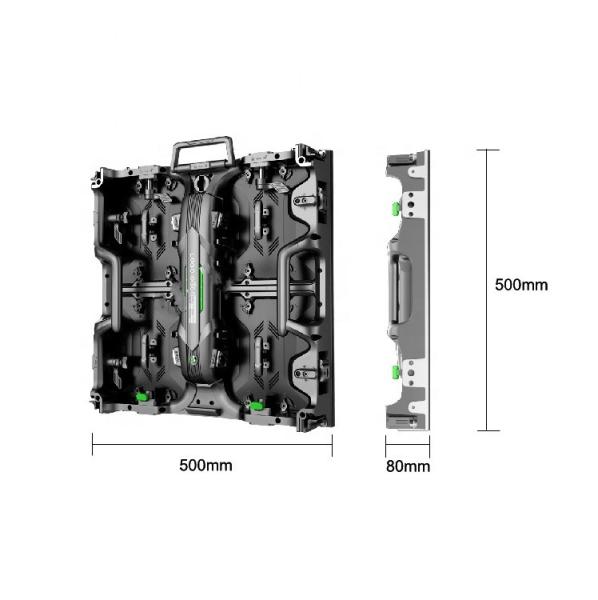

Ultra lightweight, Slim design
500*500mm standard cabinet size
Ultra-Light die-casting aluminum. ultra-thin thickness with 80mm.For easy transport and Portable;
Dual Service Design
ABX 500 Rental LED Screen adopts Magnet Adsorption LED Panel to make the cabinet is accessed with frontal & rear design.
easy installation for LED panels.
Perfect Cabinet Design With Each Part
ABX500 Rental LED display is designed with aesthetics and industrial idea.Excellent product came in all details from cabinet handle. cabinet fixed slot, fast lock, magnet adsorption module, module installation knob,Power& signal connector, detachable power boxing, and more
Magnetic Module, High Waterproof
ABX500 Rental LED Screen adopts magnetic adsorption LED panels with ultra thin design, broadside waterproof interface and installation knob.Fast replacement, assemble, disassemble with safety protection.

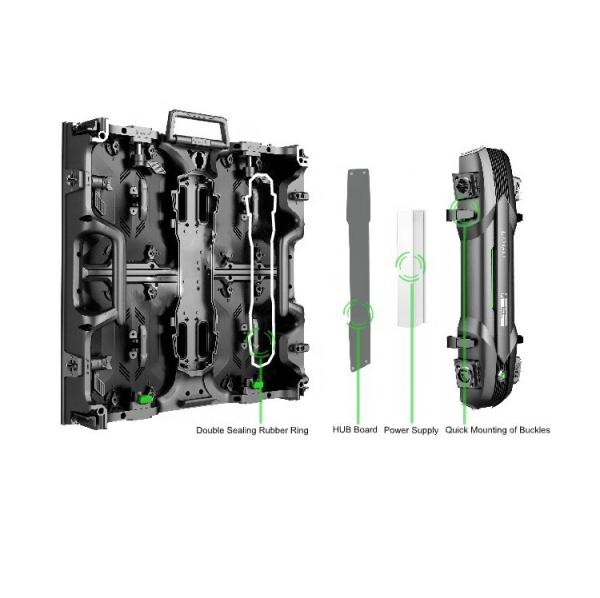

Detachable Back Cover, High Waterproof
Hard Connection Design with detachable Power box and HUB Board,
High IP65 Waterproof with Double Sealing Rubber Ring,
Quick Mounting of Buckles for assemble and disassemble of back cover.
High Precision Curve Lock

High Precision Curve Lock design (-10° to +10°) is adopted to solve the problem that the old curved lock is difficult to use before.
Rotational control, more accurate, easy to use and quickly adjust curve degree.
Curved Installation
Corner Protector for LED
ABX500 front service LED sign has four corner protectors in each corner to prevent LED to be damaged,more security for transport, installation, operation, assemble & disassemble foldable design, and easy to use.
More Features & More Advantages
* 3 times aging process
* Salty spray test, high voltage test, varying temperature test, waterproof test, vibration test
* Long service time and low attenuation by applying dual channels for heat dissipation
* High protection grade of IP65 achieved by patented mask design with waterproof and dustproof function
* No deformation under sunlight by the use of Anti-UV module mask, Anti-Oxidation module frame with protection from deformation
our service

Pre-sales service

A. Quick Response to Inquires and Demands B. Technical Solution with Quotation and specification C. Professional Salesman and Engineers recommendation

After-Sales Service

A. Quick Response to Inquires and Demands B. Technical Solution with Quotation and specification C. Professional Salesman and Engineers recommendation

In-Sales Service

A. Installation Guidance and User Manual B. Software Control on Site or Remote support C. Training and Important Notice

Warranty & Maintenance

ABXLED guarantee all our LED display for 2~5 yeas. we will be responsible for repairing led display including led modules,power supply receiver cards under warranty and supply technical support.

Design Drawing

ABXLED design the cad drawing on how to fix up the led display for free and some other expert suggestion,we will send our engineers to your place if we are expected after our negotiation.

Installation&Control

ABXLED provide the operation training and maintenance training for free in the factory or we can send our engineers to your site by negotiation manual control solutions,software,etc is provided together.
Specification
500*500 LED Display Series
ITEM
UNIT
Ren-500-2.604
Ren-500-2.976
Ren-500-3.91
Ren-500-4.81
Pixel Pitch
mm
2.604
2.976
3.91
4.81
Pixel Matrix Per
Pixel/sqm
147456
112896
65536
43264
Module Pixel structure
N/A
SMD2121/1515
SMD2121/1515
SMD2121/1921
SMD2121/1921
Brightness
nits
800-4500MCD
800-4500MCD
800-4500MCD
800-4500MCD
Scan
N/A
1/32
1/28
1/16
1/13
Cabinet Resolution
Pixel
192×192
168×168
128×128
104×104
Power Con. (Max / Avg)
W/sqm
600/180
600/180
600/180
600/180
Module Dimension
mm
250x250
250x250
250x250
250x250
Cabinet Dimension
mm
500x500x90
500x500x90
500x500x90
500x500x90
Cabinet Weight
kg
7.5kg
7.5kg
7.5kg
7.5kg
Service Access
N/A
Rear/Front
Rear/Front
Rear/Front
Rear/Front
View angle
℃
160°/ 140°
160°/ 140°
160°/ 140°
160°/ 140°
Refresh Rate
Hz
1920/3840
1920/3840
1920/3840
1920/3840
Grey Scale (bit)
bit
16
16
16
16
IP Rate
IP
IP31/65
IP31/65
IP31/65
IP31/65
Life span
hrs
100000 hrs
100000 hrs
100000 hrs
100000 hrs
Working Temperature
℃
-30-40 ℃
Storage Temperature
℃
-30-60 ℃
Power Supply
V
AC100-240V(50-60Hz)
Color temperature
N/A
3000-10000 K(adjustable)
Led display system control diagram

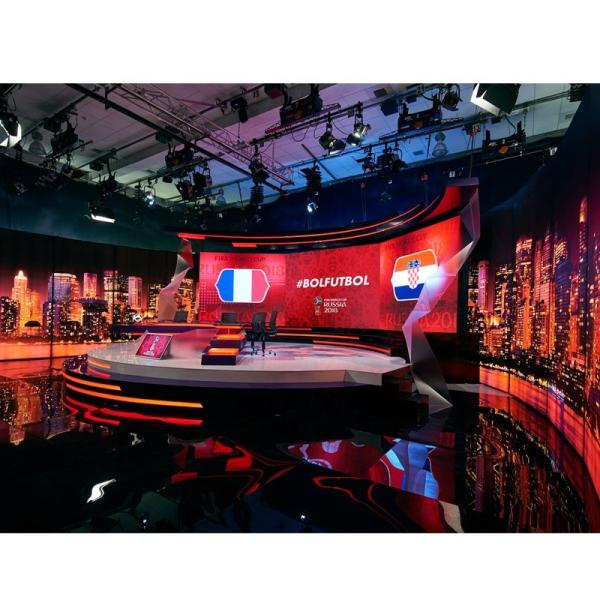

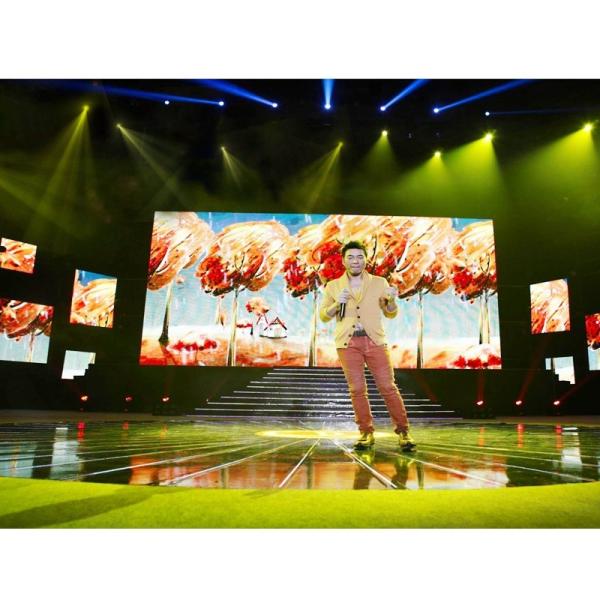

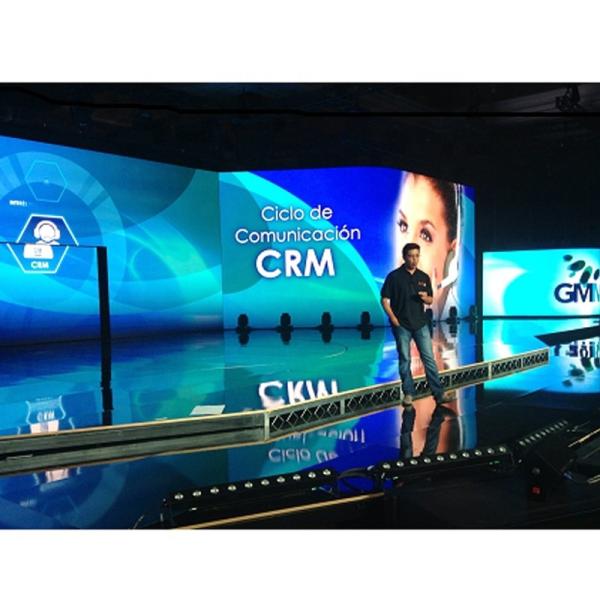

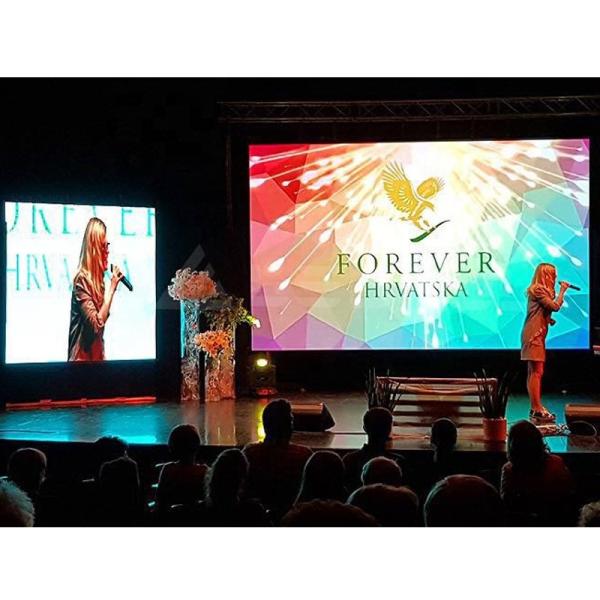

LED display case
