Specifications
Brand Name :
JuCaiYuan
Model Number :
p5 p6 p8 p10 p4
Certification :
CE/ROHS/FCC
Place of Origin :
Shenzhen,China
MOQ :
1 Square meter
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000sqm per month
Delivery Time :
3-25 working days after finished the payment
Packaging Details :
Strong Carton Box, Standard Wood Case, Flight Case etc
product :
Transparent P8 mm LED Display
Brightness :
Over 5000nits
Warranty :
2 Years
Application :
Indoor
Technology :
Frontage-lighting
Screen Dimension :
Customized
Material :
Acrylic Frame Rental Led Wall
High Light :
transparent led curtain display, glass wall led display
Description
Overview
Quick Details
Application:
Outdoor
Color:
Full Color
Panel Size:
960mmx960mm
Pixel Pitch:
8mm
Place of Origin:
Guangdong
Model Number:
P8 P10
Brand Name:
JUCAIYUAN
Function:
SDK
Type:
LED
Module Size:
320mm x 160mm
Module Resolution:
40dots x 20dots
LED Chip:
SMD3535
Scan Mode:
1/5scan
Pixel Density:
15625dots/sqm
Refresh Rate:
1920hz
Brightness:
6500nits

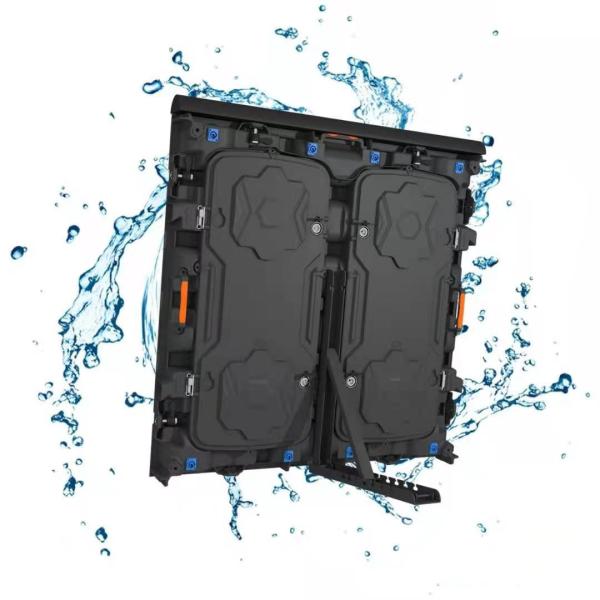

Waterproof:
IP 65
Warranty:
2years
Certificate:
CE ROHS FCC
Supply Ability
Supply Ability
1000 Square Meter/Square Meters per Month
Packaging & Delivery
Packaging Details

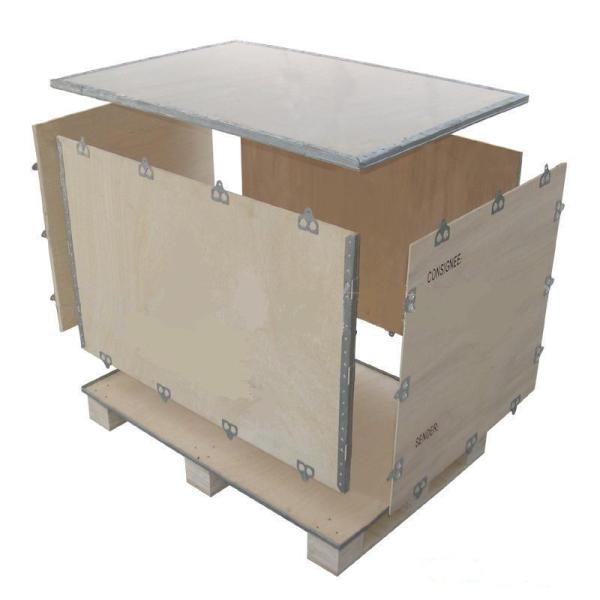

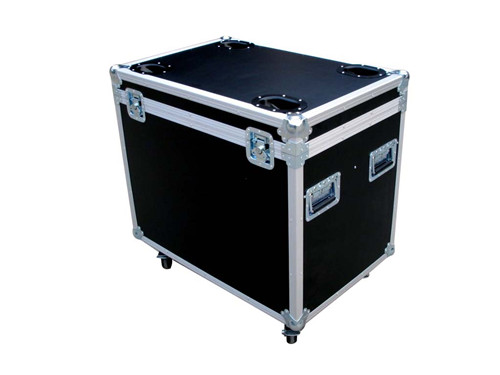

Fright case or Wooden case
Port
Shenzhen
Picture Example:
Lead Time:
Quantity(Square Meters) 1 - 100 >100
Est. Time(days) 15 To be negotiated
Recommended by seller






Products Description
Specification
Item
P8
Pixels(Pixel Pitch)
8mm
Pixel Density
15,625dots/㎡
Color Configuration
1R1G1B 3in1
LED Encapsulation
SMD3535
Drive Duty
1/5scan
Cabinet Resolution
120dots x 120dots
Cabinet Size
960mm x 960mm
Cabinet Net Weight
≈9kg
Best Viewing Distance
8m - 80m
Best Viewing Angle
H:160 °, V: 120°
Gray Level
256levels of Each Color
Display Colors
16.7millions
Max. Power Consumption
700W/㎡
Ave. Power Consumption
280W/㎡
MTBF
>10,000hours
Working Voltage
AC 110-220V, 50-60HZ
Working Temperature
-30℃ - +60℃
Working Humidity
10% - 95%RH
Warranty
2 Full Years
Packing&Delivery
Why Choose Us
Exhibition & Customer Photos
Successful Projects
FAQ
Q1:LED display models are generally expressed in PX, such as P2 P3 P4.....P8, P10, what does this mean?
A: P3 P4.....P8,P10 means that the pixel pitch is 3mm 4mm....10mm, which determines resolution of a display .Pixel pitch is smaller, led display resolution is higher.

Q2:What pixel pitch should I choose on my display?
A:Using the PX screen, it is determined mainly by the viewing distance, the size of the display screen, the desired effect and the customer budget.

Q3: To order a display ,What kind of information do I have to offer you?
A:You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements,then I can provide you with a detailed list of quotations.

Q4:How to install?
A:Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram, free remote debugging. We can also send our engineers to the site to guide the installation if needed.

Q5:What about your quality?
A:The quality of our display is excellent. We use the materials of high quality suppliers in the world, strictly control the production process, and pass the multiple quality inspection to ensure that every product is qualified.

Q6:What about the warranty?
A:Two year warranty.

Q7:What about the lead time?
A:Orders less than 50 square meter display, lead time is 15 working days.

Q8:Can I order a sample?

A:Yes,We welcome customers to order samples to check our product quality of our products and service.
