P8 P10 5000nits Digital LCD Billboard SMD3535 Advertising Frontage Lighting
P8 P10 5000nits Digital LCD Billboard SMD3535 Advertising Frontage Lighting
P8 P10 5000nits Digital LCD Billboard SMD3535 Advertising Frontage Lighting
P8 P10 5000nits Digital LCD Billboard SMD3535 Advertising Frontage Lighting
P8 P10 5000nits Digital LCD Billboard SMD3535 Advertising Frontage Lighting
P8 P10 5000nits Digital LCD Billboard SMD3535 Advertising Frontage Lighting
P8 P10 5000nits Digital LCD Billboard SMD3535 Advertising Frontage Lighting
P8 P10 5000nits Digital LCD Billboard SMD3535 Advertising Frontage Lighting
P8 P10 5000nits Digital LCD Billboard SMD3535 Advertising Frontage Lighting
P8 P10 5000nits Digital LCD Billboard SMD3535 Advertising Frontage Lighting
P8 P10 5000nits Digital LCD Billboard SMD3535 Advertising Frontage Lighting
P8 P10 5000nits Digital LCD Billboard SMD3535 Advertising Frontage Lighting
Specifications
Brand Name :
JuCaiYuan
Model Number :
Outdoor P5 P4 P6 P8 P10
Certification :
CE/ROHS/FCC
Place of Origin :
Shenzhen,China
MOQ :
1 Square meter
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000sqm per month
Delivery Time :
3-25 working days after finished the payment
Packaging Details :
Strong Carton Box, Standard Wood Case, Flight Case etc
product :
outdoor led screen P3 P4 P5 P6 P8 P10
Brightness :
Over 5000nits
Warranty :
2 Years
Application :
Indoor Outdoor
Technology :
Frontage-lighting
Screen Dimension :
Customized
Material :
Acrylic Frame
High Light :
transparent led curtain display, glass wall led display
Description
Overview
Quick Details
Application:
outdoor advertising
Color:
full color
Panel Size:
320mm*160mm
Pixel Pitch:
10mm, 10mm
Place of Origin:
Guangdong, China
Model Number:
JCY-P10mm-2S
Brand Name:
JUCAIYUAN
Module size:
320 mm X 160 mm
Module Pixel Resolution:
32dots*16dots
Module Pixles:
512 dots
Pixels Density:
10000dots/m2
Brightness:
7000nits
Package Mode:
SMD3535
Life span:
10 Years
Warranty:
2 Years
Name:
Outdoor waterproof full color p10 advertising large led display screen
Supply Ability
Supply Ability
500 Square Meter/Square Meters per Month
Packaging & Delivery
Packaging Details
Wooden case , Flight case
Port
Shenzhen
Picture Example:
Lead Time:
Quantity(Square Meters) 1 - 50 51 - 100 101 - 200 >200
Est. Time(days) 15 18 25 To be negotiated
Product Description
00:00
00:19
Specification
Para Name
Parameter
Module No
JCY-OF4R
JCY-OF5R
JCY-OF6R
JCY-OF8R
JCY-OF10R
Pixel pitch
4mm
5mm
6mm
8mm
10mm
Module size
256 x 128mm
320x 160mm
192 x 192mm
256mm x 128mm
320 x 160mm
Module resolution
64 x 64
64 x 32
32 x 32
32 x 16
32 x 16
Pixel density
62,500pixels/㎡
40,000pixels/㎡
27,777pixels/㎡
15,625 pixels/㎡
10,000 pixels/㎡
LED package
SMD
SMD
SMD
SMD
SMD
cabinet size
1024x 1024mm or Custom size
960 x 960mm
or Custom size
960 x 960mm
or Custom size
1,024 x 1,024mm
or Custom size
1280 x 1280mm
or Custom size
cabinet resolution
128 x 128
128 x 128
128 x 128
128 x 128
128 x 128
Brightness
5,000nits
5,500nits
6,000nits
6,500nits
7,000nits
Scan mode
1/8 Scaning
1/8 Scaning
1/8 Scaning
1/4 Scaning
1/2 Scaning
Refresh rate
≥ 1,920hz
Power consumption
Max: 980 W/㎡; Average: 380 W/㎡
working temprature
-20℃~60℃
Working Humidity
10~99%
Best view distance
≥4m
≥5m
≥6m
≥8m
≥10m
Viewing Angle
Horizontal 140°(+70/-70) , Vertical 120°(+60/-60)
Ingress Protection
Front IP65, Back IP54
P10 mm, 3535 packaging, a large angle of view,power consumption, color uniformity, easy maintenance and operation simple.
High brightness, High reliability. It can be based on outdoor environment brightness, humidity, temperature automatic adjustment ,energy-saving, intelligent control.
Recommended viewing distance for various Pixel pitch.
Since the size of the screen has an influence on the viewing distance, it is necessary to select a suitable model and size according to the actual situation.

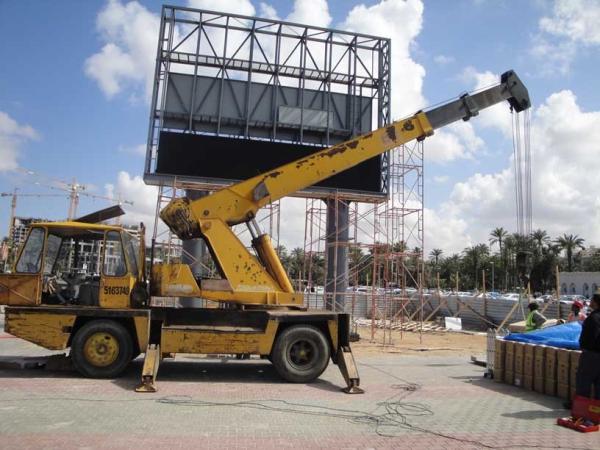

Where is LED display installed?
Contact us soon,we can provide structure frame design drawing and installation suggestions.

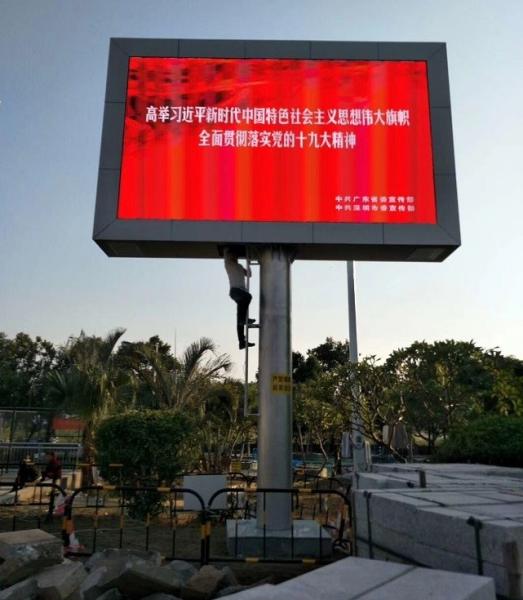

Pillar / Pole LED display

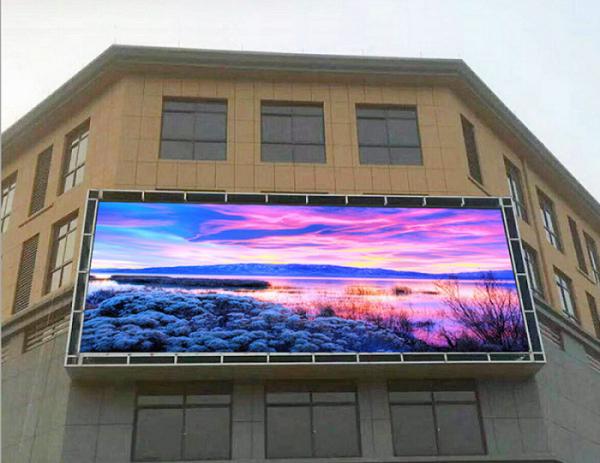

Wall Mounted led display

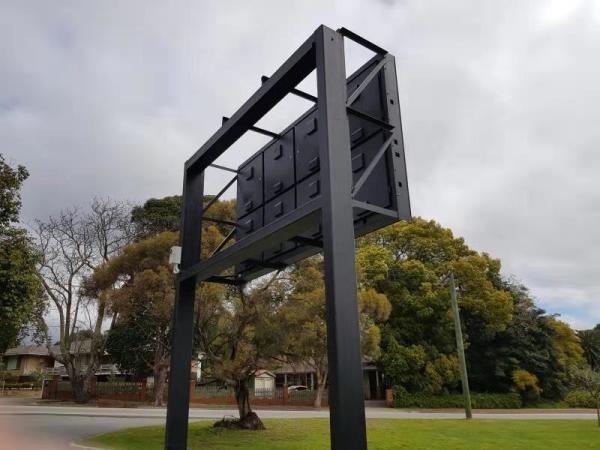

Base type installtion led display screen
Hang mounted led display screen

Application
Ceitification
Packing & Delivery

FAQ
