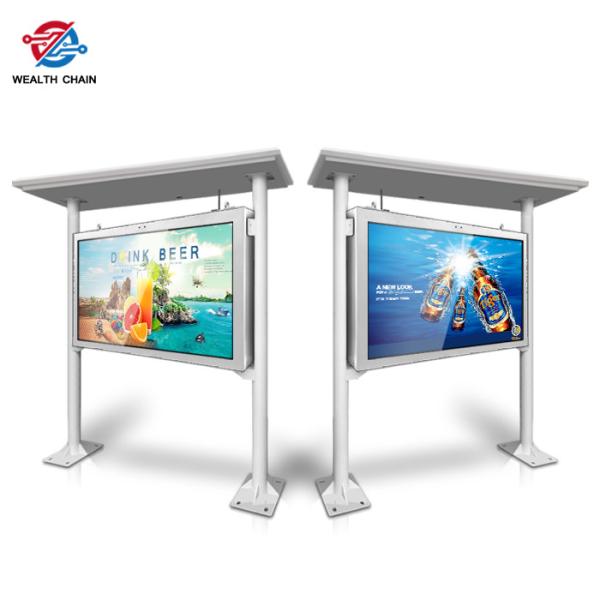

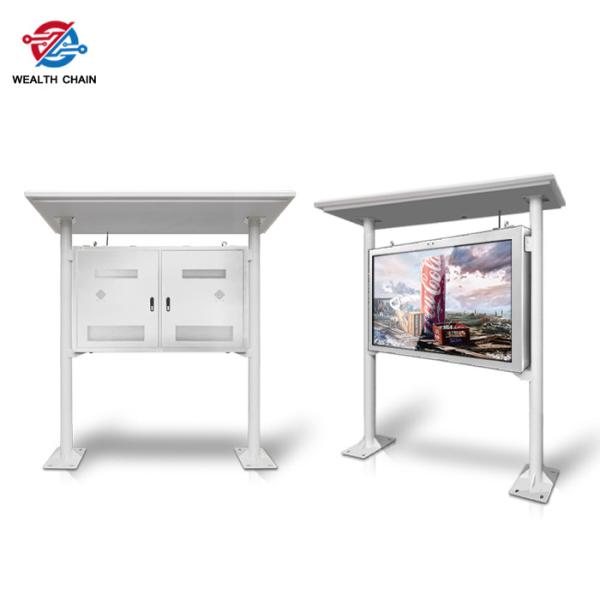

8ft High pole installation Outdoor LCD display 75inch screen
Wanda has 11 years production experience on outdoor LCD display related products. Covering outdoor floor standing series and wall mounted series. Support customization such as appearance change , logo print , adding wheels etc..
The IP65 and IP55 rated housing designs provide full protection against dust and water. Built-in intelligent heating and cooling, as well as intelligent automatic air circulation system.
SPECIFICATION
Mainboard parameters | CPU | 3288/3399(optional) |
System | Android (with CMS) | |
RAM | 2G (4G optional) | |
Memory | 16G (32G -128G optional) | |
Interface | USB/RG45/HDMI IN/RS232/TF/VGA/4G module | |
WIFI | Yes | |
LCD screen | Panel | TFT-LCD, LED backlight |
Display ratio | 16:9 | |
Max resolution | 3840x2160px | |
Brightness | 2500 nits | |
Contrast ratio | 5000:1 | |
Response time | 5ms | |
Dot pitch | 0.53(H)X0.53(V)mm | |
Colour | 16.7M | |
Viewing angle | 178°(H)/178°(V) | |
Operating environment | Temperature | -10℃ to 50℃ |
Humidity | 10~90%RH | |
Input voltage | AC100-240V~(+/-10%),50/60Hz | |

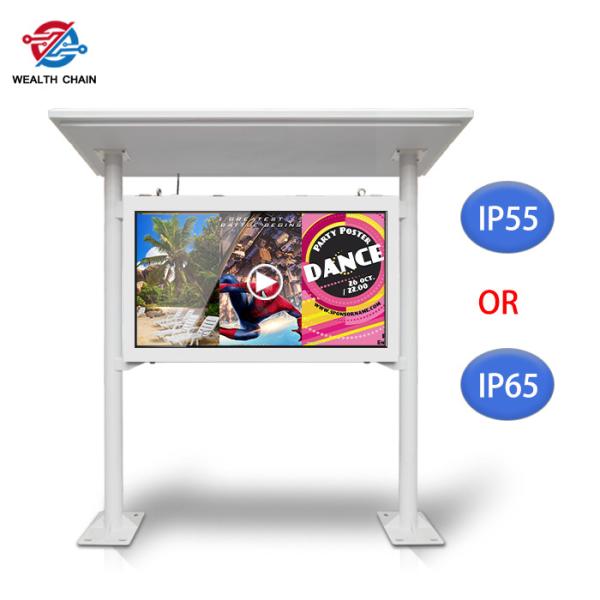

Enclosure | Protection grade | IP55 / IP65 |
Color | Black/Red/White/Gray/Customized | |
Housing material | Sheet metal +tempered glass +Aluminum frame | |
Playing format | Video format | MPG, MPG-1, MPG-2, MPG-4, AVI, MP4, TS, MKV, WMV |
Image Format | GIF, JPEG, PNG, BMP |
FEATURE
♦ Wider Viewing Angles
♦ High brightness LCD
♦ High protection rating
♦ Built-in sensor automatically adjusts the brightness of the screen
♦ Higher Contrast Ratios
♦ Better Color Accuracy
♦ Better Visual Clarity
♦ No Image Distortion
♦ No Color Shifting
♦ Improved viewing comfort
APPLICATION
Airports, Bus , Train Stations , Gardens , Ships , Resorts , Schools , Universities , Colleges , Shopping Malls , Retail Parks ,Theme Parks , Zoos etc.
