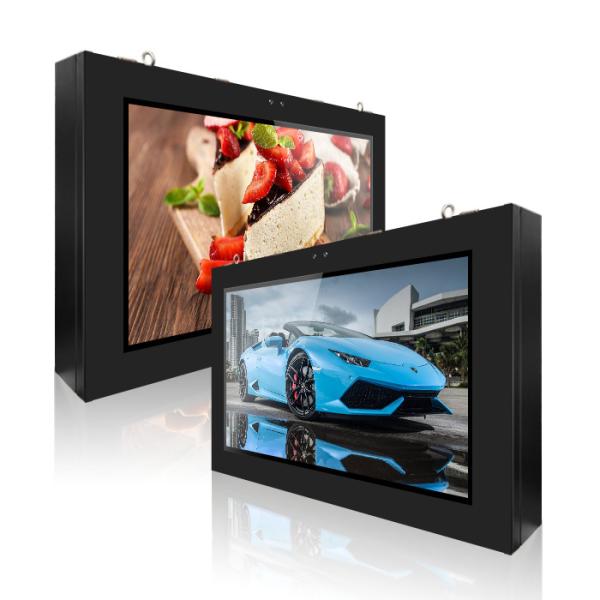

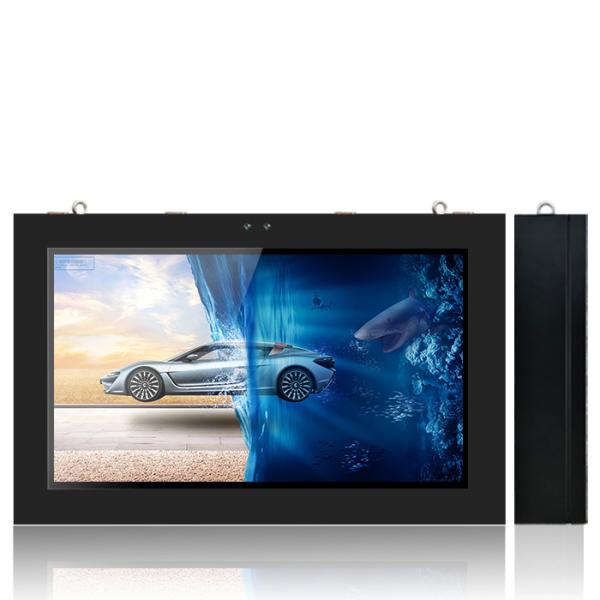

Windows OS based outdoor kiosk has fast running speed by adopting Intel i3 / i5 / i7 processor. Providing cloud-based management platform that helps you design, schedule and distribute content and manage terminals professionally remotely. You can display your medias such as videos, web page , documents or YouTube on screen in seconds.
Screen Size | 49” (21.5” 32” 43” 55” 65” 75” 86” 100” are available) |
Protection grade | IP55 / IP65 |
CPU | Intel core i3 / i5 / i7 |
System | Windows 10 |
Software | Provide Content Management Software (CMS) |
RAM | 4GB ( 8G optional) |
Memory | 128GB ( 256GB optional) |
Interface | USB/RG45/HDMI /RS232/TF/VGA/4G module optional |
WIFI | Yes |
Temperature control | Intelligent fans cooling system / Air conditioning system |
Display ratio | 9:16(Landscape) /16:9(Portrait) |
Viewing angle | 178°(H)/178°(V) |
Video format | MPG, MPG-1, MPG-2, MPG-4, AVI, MP4, TS, MKV, WMV |
Image Format | GIF, JPEG, PNG, BMP |
Working Temperature | -30℃ to 50℃ |
Humidity | 10~90%RH |
Input voltage | AC100-240V~(+/-10%),50/60Hz |
Color | Black , White , Gray or customized |
Material | Sheet metal , tempered glass |
Installation | Wall mounted / Ceiling hanging |

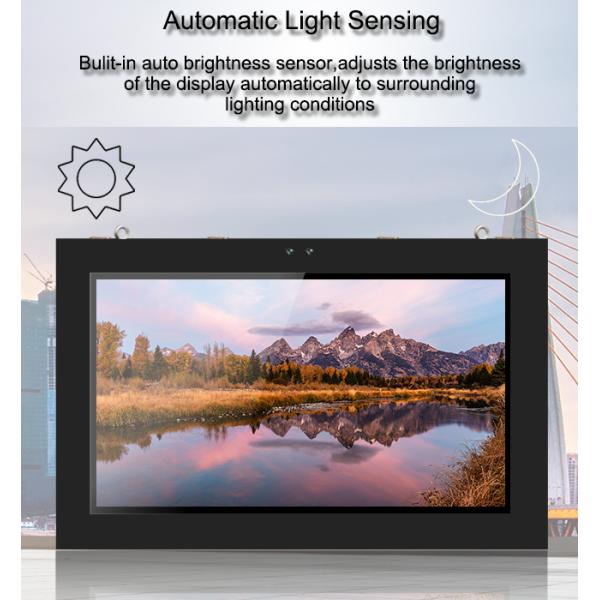

- Bulit-in auto brightness sensor,adjusts the brightness of the display automatically to surrounding lighting conditions.
- Highly visible monitor 2000 nits screen brightness enhance readability in outdoor.
- Continuously on for 24 hours at its installation.

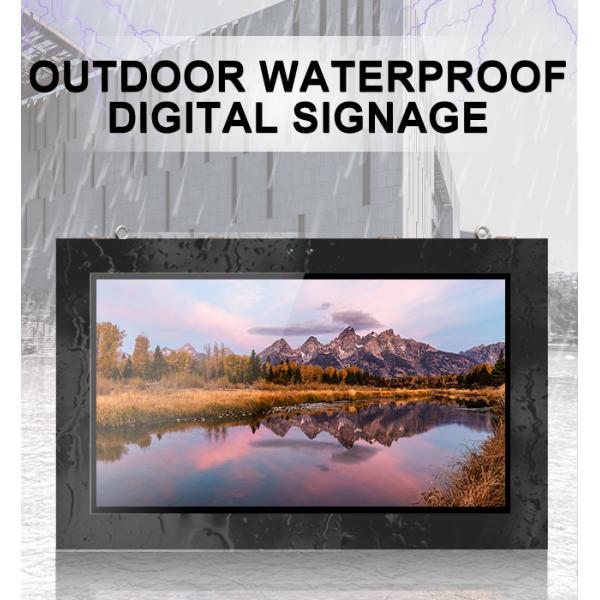

- Full weatherproof .Protection grade IP55 (IP65 available) , against all harsh environment conditions.
- Build-in WIFI, Bluetooth and speakers.
- Fans cooling temp system protect displays from overheat or over-cooling. Air-conditions system is available.
- Anti-explosion tempered glass and post-processing technology prevent breaks, scratches and defacement and optimize the signage for outdoor usage .
- Wide operating temperature range.-30℃ -50℃
- Long-term usage and extended operation hours - 24/7 performance.
- Support CMS for content management on screen.

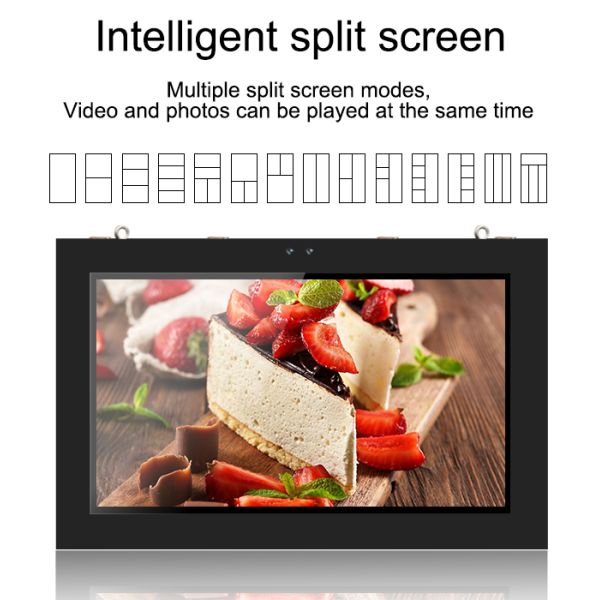

1) Intelligent Split Screen display mode
2) Display management (easy registration, remote management)
3) Layout management (Make layout and add contents to create playlist)
4) Scheduling ( preset daily, weekly , monthly,Designed to run 24×7.)
5) Loop play 24/7.
6) Program management( manage contents like videos , images,social&news feed, weather, presentation, collaboration and many more remotely) .
7) Integration with WIFI /LAN / WAN or Intranet / Internet /4G Connectivity.
8) Remotely control switch on / off
