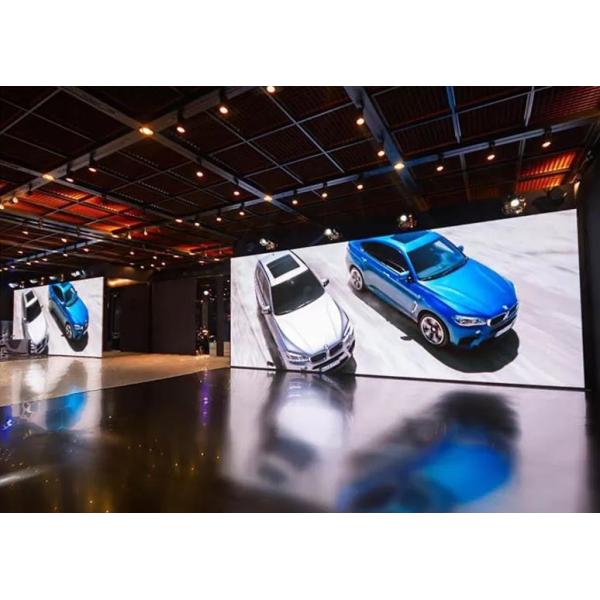

640x480mm Narrow Pixel Pitch Led Display UHD P1.2 P1.8 Led Screen Luxury Store
640x480mm Narrow Pixel Pitch Led Display UHD P1.2 P1.8 Led Screen Luxury Store
640x480mm Narrow Pixel Pitch Led Display UHD P1.2 P1.8 Led Screen Luxury Store
640x480mm Narrow Pixel Pitch Led Display UHD P1.2 P1.8 Led Screen Luxury Store
640x480mm Narrow Pixel Pitch Led Display UHD P1.2 P1.8 Led Screen Luxury Store
640x480mm Narrow Pixel Pitch Led Display UHD P1.2 P1.8 Led Screen Luxury Store
Specifications
Brand Name :
EliteLED
Model Number :
P1.2 P1.5 P1.8
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
1sqm
Price :
Negotiable
Supply Ability :
3000sqm/month
Delivery Time :
18 days
Packaging Details :
Wooden cases or flight cases
Application :
Indoor
Pixel Pitch :
P1.2
Brightness :
600nits
Product name :
UHD led screen
Cabinet size :
640x480mm
Module size :
320x160mm
LED chip :
Kinglight
Control system :
Nova
Certificate :
CE ROHS
Warranty :
2 Years
Description

Small Pixel Pitch P1.2 P1.5 P1.8 UHD Indoor Led Screen Display For Luxury Store

Features:

1. 320*160mm module size design, compatible with 640*480mm die cast aluminum cabinet, compatible with P1.25/P1.538/P1.667/P1.86/P2/P2.5, etc

2. Select high-performance PCB board substrate and cooperate with rigorous process to greatly reduce the color temperature phenomenon

3. Die cast aluminum cabinet structure, ultra-light and ultra-thin, with a weight of 6Kg and a thickness of 50mm

4. Unit cabinet seamless splicing, more convenient for assembly and transportation

5. Wireless connecting between module and board, front maintenance design, easy installation and cost saving

6. High precision, the cabinet is CNC processed

7. Reliable, high strength and good heat dissipation

8. Front access, cabinet and module are magnetic, easy maintenance

Pixel Pitch(mm) 1.538 1.667 1.86 2 2.5 3.076
Pixel Matrix Per Sq.m 422,500 360,000 288,888 250,000 160,000 105,625
Pixel Configuration SMD1212 SMD1515 SMD2121
Brightness (nits) 800 800 800 1000 1000 1000
Scan 1/52 1/48 1/43 1/40 1/32 1/24
Cabinet Resolution 416x312 384x288 344x258 320x240 256X192 208X156
Power Con. (Max / Avg) 500/150 w/sqm
Module Dimension 320x160mm
Cabinet Weight 6kg ( Die-casting Aluminum)
Cabinet Dimension 640x480mm
Service Access Full Front
Refresh Rate (HZ) ≥3840
Grey Scale (bit) 16
Viewing Angle (H/V) 160 / 160
IP Rate IP41
Input Voltage (AC) 110V / 240V

640x480mm Narrow Pixel Pitch Led Display UHD P1.2 P1.8 Led Screen Luxury Store

About Us:

Shenzhen EliteLED Electronics Co.,Ltd specialized in LED indoor display and Outdoor led display , small pixel pitch LED Wall. It is a leader in the field of led optoelectronics integrated operational services. Over these years, EliteLED has been not only concentrating in researching in the field of the led technology and the production of led video wall ,sales and services, but also committing to providing customers with comprehensive solutions. The led display product sell well in Asia, Europe, north America, south America, Africa, and Oceania more than 100 countries and regions.

640x480mm Narrow Pixel Pitch Led Display UHD P1.2 P1.8 Led Screen Luxury Store

After-sales Service:

1. How about the quality?

Our led products must be aging at least 48 hours before shipping, from purchasing raw materials to ship, each process has strict quality control systems to ensure led display with good quality.

2. What about the warranty?

We have two years warranty, spare parts such as led module, control card, power supply are damaged not caused of artificial damaged, then it's free maintenance and ship back new ones for replacement.

3. Can you offer a technical support?

We provide free training for our customer, teach the client how to set up screens, make configuration of parameters, broadcast the videos through Novastar and colorlight or Linsn control systems, our engineer can directly teach you how to operate. We're innovative high-end led display with over 10 years manufacturing experience, and we believe you can get a professional solution and best service from us. We're happy to serve you. If any question, you are welcome to contact us!
