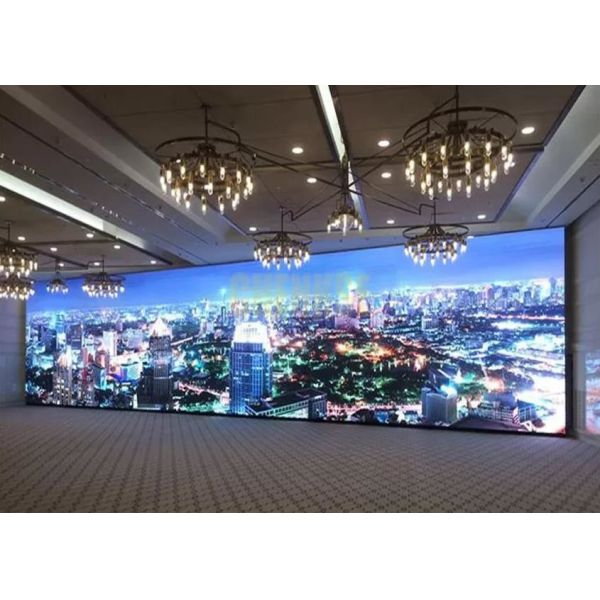

320x160mm P1.86 Fine Pitch LED Display 4K LED Video Wall For Meeting Room
320x160mm P1.86 Fine Pitch LED Display 4K LED Video Wall For Meeting Room
320x160mm P1.86 Fine Pitch LED Display 4K LED Video Wall For Meeting Room
320x160mm P1.86 Fine Pitch LED Display 4K LED Video Wall For Meeting Room
320x160mm P1.86 Fine Pitch LED Display 4K LED Video Wall For Meeting Room
320x160mm P1.86 Fine Pitch LED Display 4K LED Video Wall For Meeting Room
Specifications
Brand Name :
EliteLED
Model Number :
P1.86
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
1sqm
Price :
Negotiable
Supply Ability :
3000sqm/month
Delivery Time :
18 days
Packaging Details :
Wooden cases or flight cases
Application :
Indoor
Pixel Pitch :
P1.86
Brightness :
800nits
Product name :
4K led video wall
Cabinet size :
640x480mm
Module size :
320x160mm
LED chip :
Kinglight
Control system :
Nova
Certificate :
CE ROHS
Warranty :
2 Years
Description

4K Indoor LED Video Wall P1.86 UHD Led Screen For Meeting Room TV Station

Features:

1. 320*160mm module size design, compatible with 640*480mm die cast aluminum cabinet, compatible with P1.25/P1.538/P1.667/P1.86/P2/P2.5, etc

2. Select high-performance PCB board substrate and cooperate with rigorous process to greatly reduce the color temperature phenomenon

3. Die cast aluminum cabinet structure, ultra-light and ultra-thin, with a weight of 6Kg and a thickness of 50mm

4. Unit cabinet seamless splicing, more convenient for assembly and transportation

5. Wireless connecting between module and board, front maintenance design, easy installation and cost saving

6. High precision, the cabinet is CNC processed

7. Reliable, high strength and good heat dissipation

8. Front access, cabinet and module are magnetic, easy maintenance

Pixel Pitch(mm) 1.538 1.667 1.86 2 2.5 3.076
Pixel Matrix Per Sq.m 422,500 360,000 288,888 250,000 160,000 105,625
Pixel Configuration SMD1212 SMD1515 SMD2121
Brightness (nits) 800 800 800 1000 1000 1000
Scan 1/52 1/48 1/43 1/40 1/32 1/24
Cabinet Resolution 416x312 384x288 344x258 320x240 256X192 208X156
Power Con. (Max / Avg) 500/150 w/sqm
Module Dimension 320x160mm
Cabinet Weight 6kg ( Die-casting Aluminum)
Cabinet Dimension 640x480mm
Service Access Full Front
Refresh Rate (HZ) ≥3840
Grey Scale (bit) 16
Viewing Angle (H/V) 160 / 160
IP Rate IP41
Input Voltage (AC) 110V / 240V

320x160mm P1.86 Fine Pitch LED Display 4K LED Video Wall For Meeting Room

About Us:

SHENZHEN ELITELED ELECTRONICS CO., LTD. is a leading LED display applications products and solutions provider, specialized in LED research and development, manufacturing. Sales and service, dedicated to providing high-quality, high-performance LED applications and solutions for professional channel customers and end-users at home and abroad.


Our products have been widely used both at home and abroad. Since its foundation, we have become one of the best LED product and solution providers in the country through our unremitting efforts and have won the industry's highest recognition

The development of the company so far, the sales outlets throughout the country, the export products exported to more than 100 countries and regions, 3C, FCC, CE, IP65, IP67, IS9001, ROHS, and other qualifications, product testing reports, patent certificate.

320x160mm P1.86 Fine Pitch LED Display 4K LED Video Wall For Meeting Room

FAQ:

Q1: What is the Warranty for LED?

A1: We have 2 years warranty.

Q2: How soon can I get samples for test to check quality?

A2: After price confirm,for our normal products(not customized products),we can send samples for you in 7 days. And our samples usually not for free, after large order placed samples costs can be refundable.

Q3: Can you accept OEM&ODM service business?

A3: Yes,we can. We can customized the products, labels, package as your demands.

Q4: How to proceed an order?

A4: Firstly let us know your requirements or application.
Secondly we quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly we arrange the production.

Q5: What’s your payment terms?

A5:Standard terms: T/T in advance. Large amount: L/C at sight. Small amount like sample fees: Paypal and Western Union.

Q6: What about delivery time?

A6: Within 7 days for the sample order, and 15-25 days for bulk order.

Q7: How do you usually ship the goods?

A7: For small order, by express. For large order, if you need urgently, by air, and also can by sea. We promise to find the most economic and safe way to delivery the goods for you.
