P6 P10 Wall Mounted Fixed Outdoor Full Color Led Display Low Power Consumption

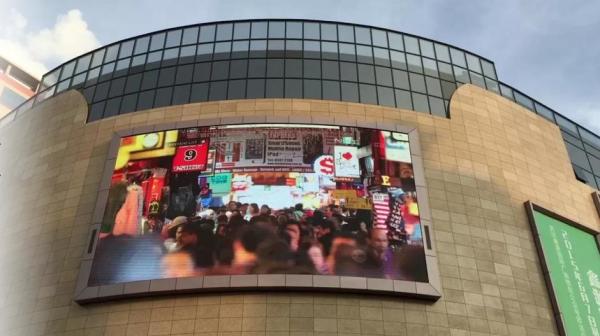

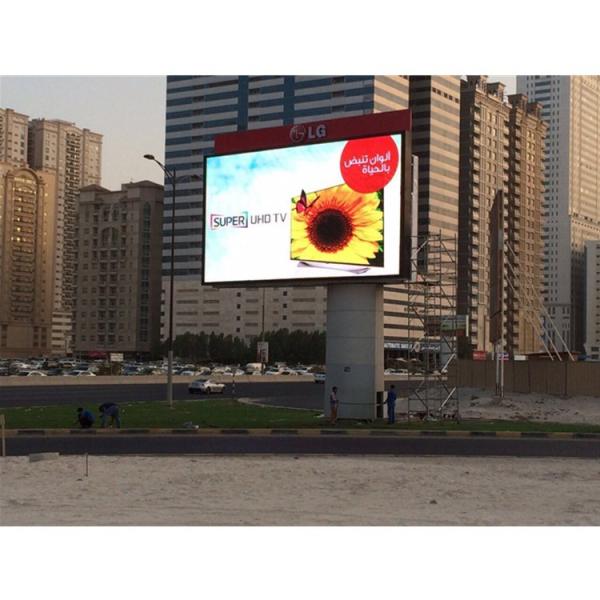

Mainly for outdoor advertising, information publishing, journalism and communication in some places, such as cultural square, traffic arteries, stations, terminals, information centers, entertainment venues, shopping, centers, commercial city and etc.
Key Specifictions:
1. High brightness SMD3535 and SMD2727 LED is used for outdoor LED display, keeps the display content visible even if facing the strong sunshine directly.
2. Weatherproof design, completely outdoor use.
3. High color uniformity and clear image can bring you a vivid audio visual effect.
4. Easy for assembling and connection with the connector added.
5. Optional of convex shaped,concave shaped and wave shaped screens

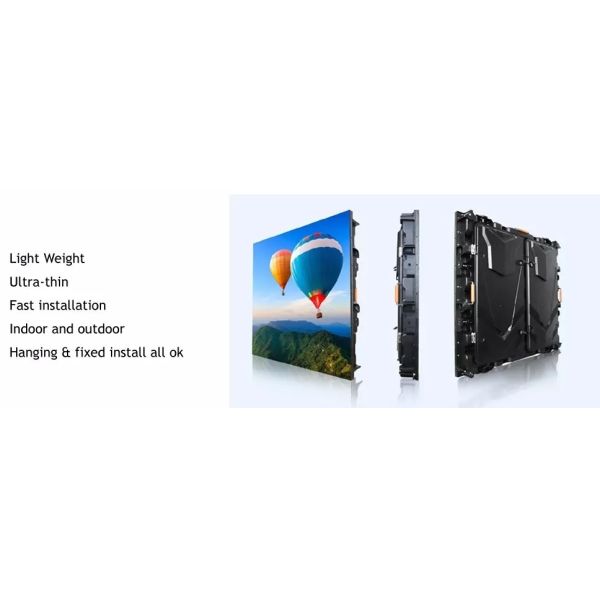

6. Standard cabinet achieves seamless and smooth assembling overall the display.
7. The cabinet can be operate in all-weather for its slim design and waterproofing that with a protection level of class IP65 in front and IP54 in back.
8. Easy installment and low maintenance cost
Model | P4 | P5 | P6 | P8 | P10 |
Pixel Pitch(mm) | 4 | 5 | 6.67 | 8 | 10 |
LED Chips | SMD1921 | SMD2525 | SMD3535 | SMD3535 | SMD3535 |
Pixel density(dots/m2) | 62500 | 40000 | 22477 | 15625 | 10000 |
Driving Method | 1/10 scanning | 1/8 scanning | 1/6 scanning | 1/5 scanning | 1/2 scanning |
Module Size(mm) | 320*160 | 320*160 | 320*160 | 320*160 | 320*160 |
Module Resolution | 80*40 | 64*32 | 48*24 | 40*20 | 32*16 |
Cabinet Size( W*L mm) | 960*960 | 960*960 | 960*960 | 960*960 | 960*960 |
Cabinet Material | Magnesium Alloy | Magnesium Alloy | Magnesium Alloy | Magnesium Alloy | Magnesium Alloy |
Cabinet Weight( Kg/m2 ) | 35 | 35 | 35 | 35 | 35 |
Max.Consumption(W/m2) | 800 | 800 | 800 | 800 | 800 |
Ave.Consumption(W/m2) | 350 | 350 | 350 | 350 | 350 |
Brightness( Nits ) | ≥5500 | ≥5000 | ≥5500 | ≥5800 | ≥6000 |
Viewing Angle (Vertical / Horizontal) | 120° / 120° | 120° / 120° | 120° / 120° | 120° / 120° | 120° / 120° |
Refresh Rate | ≥1920Hz | ≥1920Hz | ≥1920Hz | ≥1920Hz | ≥1920Hz |
IP Level | IP65 | IP65 | IP65 | IP65 | IP65 |
FAQ:
Q1: What's the pixel pitch for Indoor LED Display Screen ?
A1: Outdoor P3.91mm
Q2: Where is it used for?
A2: Indoor rental use. Widely used for backdrop of staging event, rental business, liveshow, concert, etc.
Q3: Can it play HD video?
A3: Yes, it can realize HD video function with Novastar controlling system.
Q4: What's the controlling system?
A4: Our standard controlling system for this model is Novastar. Also support other controlling system, like Linsn, etc.
Price Advantage:
We have the best competitive price at the market, also have the same even better quality
Quality advantage:
From material to finished product, from design to produce, we control all steps,that's the guarantee of the quality and reliability
Service advantage:
Better service at same situation, better cooperation at same service.
After-sales Service:
1. How about the quality?
Our led products must be aging at least 48 hours before shipping, from purchasing raw materials to ship, each process has strict quality control systems to ensure led display with good quality.
2. What about the warranty?
We have two years warranty, spare parts such as led module, control card, power supply are damaged not caused of artificial damaged, then it's free maintenance and ship back new ones for replacement.
3. Can you offer a technical support?
We provide free training for our customer, teach the client how to set up screens, make configuration of parameters, broadcast the videos through Novastar and colorlight or Linsn control systems, our engineer can directly teach you how to operate. We're innovative high-end led display with over 10 years manufacturing experience, and we believe you can get a professional solution and best service from us. We're happy to serve you. If any question, you are welcome to contact us!
