Low Voltage Led Dispaly Panel Energy Saving LED Display Screen For Advertising
Energy Saving LED Billboard Features:
1. High IP Rating IP65, good waterproof and dust resistance, suitable for every condition.
2. Wide viewing angle 160° for broader reach, seamless in all direction with same image quality output, suitable for large gatherings.
3. High brightness from 6,000nits to 9,000nits, visible from every direction even face to direct sunshine.

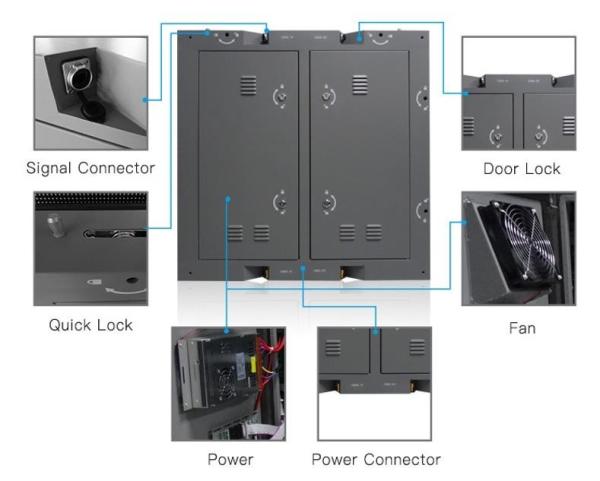

4. Good heat dissipation with fans and using meanwell power supply, long lifespan.
5. High fresh rate up to 2,000Hz, high contrast to 2,000:1, vivid color.
6. Curved screen adjustable, creative design to meet your requirement.
7. With Energy Saving technique, the power consumption reduce from 350W/Sqm to 150W/Sqm.
Model | P4 | P5 | P6 | P8 | P10 |
Pixel Pitch(mm) | 4 | 5 | 6.67 | 8 | 10 |
LED Chips | SMD1921 | SMD2525 | SMD3535 | SMD3535 | SMD3535 |
Pixel density(dots/m2) | 62500 | 40000 | 22477 | 15625 | 10000 |
Driving Method | 1/10 scanning | 1/8 scanning | 1/6 scanning | 1/5 scanning | 1/2 scanning |
Module Size(mm) | 320*160 | 320*160 | 320*160 | 320*160 | 320*160 |
Module Resolution | 80*40 | 64*32 | 48*24 | 40*20 | 32*16 |
Cabinet Size( W*L mm) | 960*960 | 960*960 | 960*960 | 960*960 | 960*960 |
Cabinet Material | Magnesium Alloy | Magnesium Alloy | Magnesium Alloy | Magnesium Alloy | Magnesium Alloy |
Cabinet Weight( Kg/m2 ) | 35 | 35 | 35 | 35 | 35 |
Max.Consumption(W/m2) | 800 | 800 | 800 | 800 | 800 |
Ave.Consumption(W/m2) | 350 | 350 | 350 | 350 | 350 |
Brightness( Nits ) | ≥5500 | ≥5000 | ≥5500 | ≥5800 | ≥6000 |
Viewing Angle (Vertical / Horizontal) | 120° / 120° | 120° / 120° | 120° / 120° | 120° / 120° | 120° / 120° |
Refresh Rate | ≥1920Hz | ≥1920Hz | ≥1920Hz | ≥1920Hz | ≥1920Hz |
IP Level | IP65 | IP65 | IP65 | IP65 | IP65 |
About Us:
SHENZHEN ELITELED ELECTRONICS CO., LTD. is a leading LED display applications products and solutions provider, specialized in LED research and development, manufacturing. Sales and servic, dedicated to providing high-quality, high-performance LED applications and solutions for professional channel customers and end-users at home and abroad.
Our products have been widely used both at home and abroad. Since its foundation, we have become one of the best LED product and solution providers in the country through our unremitting efforts and have won the industry's highest recognition
The development of the company so far, the sales outlets throughout the country, the export products exported to more than 10 countries and regions, 3C, FCC, CE, IP65, IP67, IS9001, ROHS, and other qualifications, product testing reports, patent certificate.
FAQ:
Q1. Are you trading company or manufacturer?
A: We are a professional led screen manufacturer.
Q2. What is your terms of payment?
A: T/T or Western Union 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. Do you provide samples ? is it free or extra?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q4. How about your delivery time?
A: Generally, sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q5. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q6. Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
