Specifications
Brand Name :
ELITELED, OEM
Model Number :
P2.6
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
2 Pieces
Price :
Negotiable
Supply Ability :
3000 Square Meter/Month
Delivery Time :
15 days
Packaging Details :
Flight case, 6-8pcs cabinets in one flight case.
Application :
Indoor
Color :
Full color
Pixel Pitch :
2.6mm
LED Chip :
KN-light, Nationstar
Refresh rate :
3840Hz
Cabinet size :
500x500mm
Product name :
Led video wall
Life Span :
100000 Hours
Driving Method :
1/32 scan
Warranty :
2 years
Description

Stage Background Indoor Rental LED Video Wall Panel With 3840Hz High Refresh

Cabinet Features:

1.Standard dimension,module size 250mm * 250mm, cabinet size 500mm * 500mm, compatible indoor P2.604/2.97/3.91 and outdoor P3.91/4.81.

2.High-precision die-cast aluminum cabinet, seamless unit box.

3.New design of hanging bar lock, one hand to fix two cabinets,anti-fool design to avoid loose cabinet caused by unintentional touch.

4.Total hard connection ,easy to take off the power supply and receiving card.

5.Module with touchable back screw , uncessary to prepare tool, easy to fix and take off modules by hand.

6.Corners with small protectors, protect pixel while moving.

100000 Hours P2.6 LED Wall 3840Hz Stage Background Led Screen


Our Advantages:


1. High refresh rate, >=3840HZ, which let the picture is vivider

2. All led panels have high strength corner protectors. Protect leds from damage during transportation and installation.

3. Convenient maintainance --- module front & rear service

4. Independent power supply box without wire

5. Support curve connection --- ±2.5°&5° concave & converse connection


100000 Hours P2.6 LED Wall 3840Hz Stage Background Led Screen

Specifications:
Item Parameter
Module specifications Mode P2.604 P2.97 P3.91 P3.91
Module size 250*250 250*250 250*250 250*250
Module pixel 96*96 84*84 64*64 64*64
Scan 1/32 1/28 1/16 1/16
Pixel configuration 1R1G1B 1R1G1B 1R1G1B 1R1G1B
LED SMD1515 SMD1515 SMD2121 SMD2121
Max power consumption (W/piece) 40W 40W 40W 40W
Mask Have Have Have Have
Main Specifications Cabinet size 500*500 500*500 500*500 500*1000
Cabinet pixel 192*192 168*168 128*128 128*256
Density (dot/m2) 147456 112896 65536 65536
Brightness(cd/m2) 500-1000 500-1000 500-1000 500-1000
Max power consumption (W/piece) 160W 160W 160W 320W
Avg power consumption (W/piece) 50W 50W 50W 100W
Cabinet weight(KG) 7.5KG 7.5KG 7.5KG 13.6KG
Cabinet material Die-cast aluminum
IP grade IP45 IP45 IP45 IP45
Gray level 16 bit 16 bit 16 bit 16 bit
Fresh rate 3840HZ 3840HZ 3840HZ 3840HZ
Best viewing distance 3M 3M 4M 4M
Power(V) AC110-220V
Working temperature -20℃-50℃

Applications:

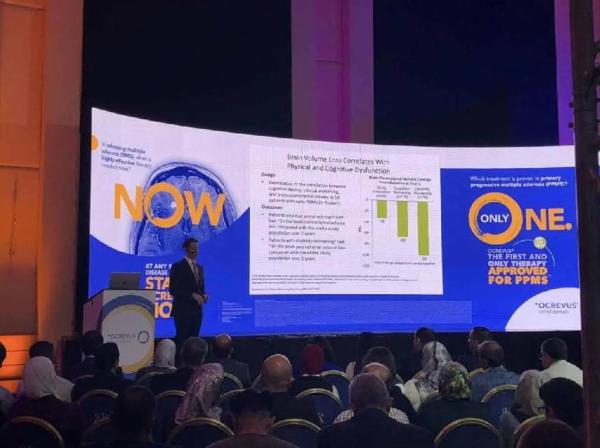

LED video walls have grown exponentially in popularity in recent years and have greatly decreased in price. Eliteled uses the best quality led display solutions. Our LED walls can be used in many different applications indoors, outdoors, wall mounted.

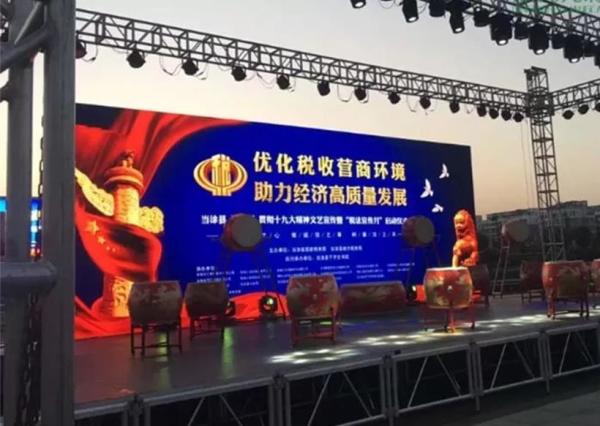

This kind of Concert LED Screens requires higher waterproof grade than indoors, even it works under strong rainy, the screen still work smoothly. Mainly for outdoor events, such as new product launch, wedding, fashion show, wedding and so on.

Looking for an indoor/outdoor rental LED display for an event?

We provide LED screen solutions to take your event to the higher level. Tell us your project , we will make a suitable led screen solution for you.

EliteLED is the professional manufacturer of HD LED Video walls, outdoor, indoor LED Display Screen, LED Panel in Shenzhen, China with led display exported to more than 100 countries and regions, passed CE ,ROHS FCC Certifications. If you are considering LED go with the known leader of LED display suppliers, please contact us.

FAQ:

1. Can we make any size of led display?
Nope, according the led module size and cabinet size, such as p4.81 P3.91mm outdoor led display, the smallest unit size is: 500x500mm.


2. How to install led display?
We will provide drawing of steel structure or hanging truss, then you can install led display very easy.


3. How to choose the LED display?
Please let us know you it will be used indoor or outdoor, where will be installed, and size of led display (Width x Height).


4. How to payment?
You can transfer payment by TT, West union, recommend Alibaba Trade Assurance.
