P1.87 Outdoor Fine Pitch LED Display / High Definition LED Display Screen
P1.87 Outdoor Fine Pitch LED Display / High Definition LED Display Screen
Specifications
Brand Name :
Excel LED
Model Number :
D-1.87
Certification :
CE/FCC/EMC/ROHS
Place of Origin :
Guangdong, China
MOQ :
1 Square Meter
Payment Terms :
T/T, Western Union
Supply Ability :
5000 Square Meters per month
Delivery Time :
1-100 Square Meters with 20 days; more than 100 Square Meters, to be negotiated
Packaging Details :
plywood+pallet: size: 110×70×80(mm); weight: 100kg/Square Meter/Square Meters
Price :
Negotiation
Brightness :
200-650 cd/m2
IP rate :
IP35
Life span :
100000 Hours
Panel weight :
4.8 kgs
Viewing angle :
140deg(H/V)
Screen dimension :
Customized size
Pixel configuration :
SMD
Color :
RGB, full color
Cabinet resolution :
320×180 (W×H)
Max contrast :
6000:1
Description
Product Description

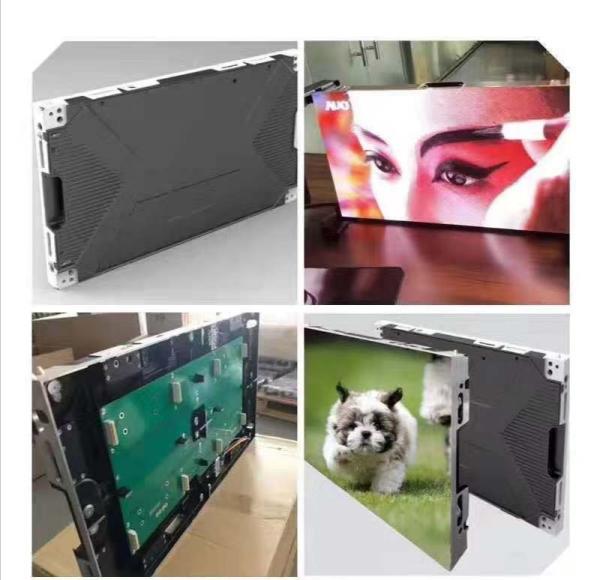

Fine Pixel Pitch Full Color P1.87 Outdoor LED Video Wall Screen High Definition LED Display Screen

Super slim design
Extremely light weight
User friendly front installation and maintenance
concise appearance
Versatile installation, hanging or ground stacking

Model: D-1.87

Pixel pitch 1.87mm Pixel density per sqm 284444dots
Cabinet size 600×337.5mm Brightness 200-650 cd/m2
Cabinet material Magnesium alloy IP level IP35
Net weight 4.8 kgs Operating temperature -20℃~+50℃
Max contrast 6000:1 Gray level ≥14BIT
(There are also fine pitch displays with pixel pitch of 0.9375mm, 1.25mm, 1.56mm, 2.34mm)

Production Ability
Machine Parts
① International and reliable SMT machines, ensuring the production accuracy.
② Automatic production also improves the manufacture efficiency.

P1.87 Outdoor Fine Pitch LED Display / High Definition LED Display ScreenP1.87 Outdoor Fine Pitch LED Display / High Definition LED Display Screen

P1.87 Outdoor Fine Pitch LED Display / High Definition LED Display ScreenP1.87 Outdoor Fine Pitch LED Display / High Definition LED Display Screen

During and after production, there are several tests.

Aging test:

We have 24 hours all white aging test for modules, and 72 hours full color test for a whole screen. With the two tests, we can minimize all possible problems, and deliver you goods with best condition.
Our Services
P1.87 Outdoor Fine Pitch LED Display / High Definition LED Display ScreenP1.87 Outdoor Fine Pitch LED Display / High Definition LED Display Screen
Pre-sales service
• Salers and engineers assisting you online
• 7 days 24 hours service
• Onsite discussion when needed

After-sales service

• 3 local branches in Africa
• English - speaking engineers
• Scheduled on-site checking

Packaging & Delivery

P1.87 Outdoor Fine Pitch LED Display / High Definition LED Display Screen

Packaging: Plywood box + pallet

Plywood case is standard package for export.
D-1.87 cabinet size: 600 x 337.5 x 38mm
Standard Package info: 8 panels in 1 box
Plywood case info:
110 x 70 x 80cm, 100kgs (for reference)
Delivery :
Screen < 100sqm:
Production time is 20 working days.
If quantity is larger, pls ask us for exact time.
Shipping could be arranged by us or by buyer.
Shipping Way
① You can directly contact companies which provide shipping service in your country.
② We can arrange shipping for you with following methods.

P1.87 Outdoor Fine Pitch LED Display / High Definition LED Display Screen

P1.87 Outdoor Fine Pitch LED Display / High Definition LED Display ScreenP1.87 Outdoor Fine Pitch LED Display / High Definition LED Display ScreenP1.87 Outdoor Fine Pitch LED Display / High Definition LED Display ScreenP1.87 Outdoor Fine Pitch LED Display / High Definition LED Display Screen

About Us

P1.87 Outdoor Fine Pitch LED Display / High Definition LED Display Screen

P1.87 Outdoor Fine Pitch LED Display / High Definition LED Display ScreenP1.87 Outdoor Fine Pitch LED Display / High Definition LED Display ScreenP1.87 Outdoor Fine Pitch LED Display / High Definition LED Display Screen

P1.87 Outdoor Fine Pitch LED Display / High Definition LED Display Screen

Our business has been expanding rapidly during these years, expecially in Africa.

Now we are willing to look for more local partners.

If you have LED screen experience, and you are interested in it, feel free to talk.
