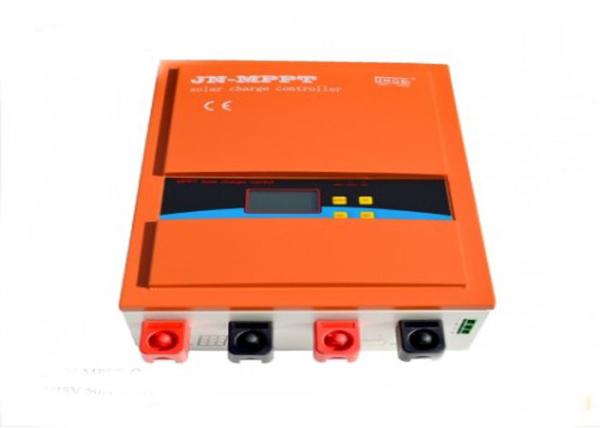

JN MPPT C Solar Charge Controller 50A 60A 80A 100A 12V / 24V / 48V
JN MPPT C Solar Charge Controller 50A 60A 80A 100A 12V / 24V / 48V
JN MPPT C Solar Charge Controller 50A 60A 80A 100A 12V / 24V / 48V
JN MPPT C Solar Charge Controller 50A 60A 80A 100A 12V / 24V / 48V
JN MPPT C Solar Charge Controller 50A 60A 80A 100A 12V / 24V / 48V
JN MPPT C Solar Charge Controller 50A 60A 80A 100A 12V / 24V / 48V
Specifications
Brand Name :
JNGE POWER
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Place of Origin :
Guang dong
Certification :
CE And RoHS
Place Of Origin :
China
Model Number :
JN-MPPT-C
Rated Voltage :
12V 24V 48V Auto
Color :
Orange
Description

JN-MPPT-C 50A 60A 80A 100A MPPT Solar Charge Controller 12V 24V 48V Auto

JN-MPPT-C sereis MPPT solar controller series ranges from 50a 60a 80a 100a, advanced MPPT maximum power point tracking technology,tracing efficiency more than 99.5%.

Product Advantages:

1.12V 24V 48V system voltage auto identify.

2. MPPT charging efficiency more than 99.5%.

3. Support RS485 communication interface,more intelligent.

4. Strong data storage, storage time can be up to 10 years.

5. Synchronous rectification technology, ensure higher conversion efficiency under small charging condition.

6. Dual peaks and multi-peak tracking technology.

7. Japan imported power kits with better performance and more durable.

8. Common cathode circuit design makes the system more stable and reliable.

9. Support for parallel conenction, 99 sets max.

MPPT Charge Controller Parameters:

Parameters Name The parameter values (and adjustable range) Default values
Current 50A 60A 80A 100A
System Voltage 12V,24V,48V
Photovoltaic max input voltage

20V～100V(12V system Voltage)

40V～150V(suggest lower than 145V)(24Vsystem Voltage)

80V～150V(suggest lower than 145V)(48Vsystem Voltage)
Rated working current 50A 60A 80A 100A
Photovoltaic max input power

600W/12V

1200W/24

2440W/48

720W/12V

1440W/24V

2880W/48V

960W/12V

1920W/24V

3480W/48V

1200W/12V

2400W/24V

4800W/48V
MPPT efficiency ﹥99.5%

Conversion

efficiency

 ﹥96%
Over voltage (over charge) 16～17V,×nV 16V,×nV
Over voltage recovery 15～15.5V, ×nV 15V,×nV
Charging limit voltage 15.5～16V, ×nV 15.5V,×nV
Equalizing charge voltage 15～15.5V, ×nV 15.2V,×nV
Boost charge voltage 14～15V, ×nV 14.4V,×nV
Boost charge recovery 12.3～13.5V,×nV 13.2V,×nV

Floating charge

voltage

 13.2～14.0,×nV 13.8V,×nV
Over discharge voltage 9.8～11.8V,×nV 10.8V,×nV
Over discharge recovery 12.0～13.0V,×nV 12.6V,×nV
Equalizing charge time 1/2/3 hour 1H
Boost charge time 1/2/3 hour 1H
Device address 1～99 6
Light control OPEN voltage Not applicable 5
Light control CLOSE voltage Not applicable 6
Time delay Not applicable
Temperature compensation 0～4 4
Over temperature protection

When the temperature reaches 75 ℃ charging current is limited to half of the rated current, When the temperature reaches 90 ℃ charging and load are shut off
Working temperature -20℃～50℃
Storage temperature -40℃～80℃
Humidity 10% ～ 90% Non-condensate
Weight 7.25kg
Size 374.5*260*114.5mm

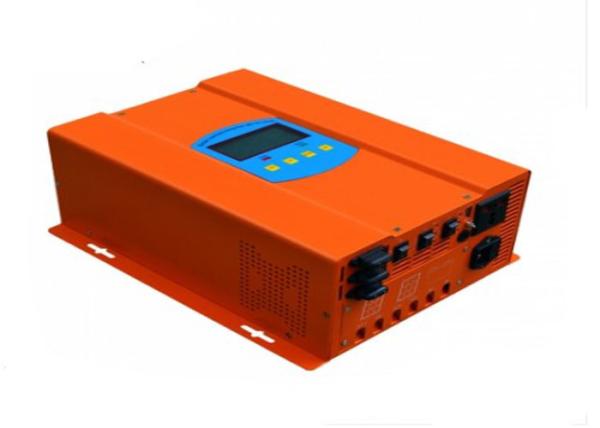

Product Advantages:

1. 12V 24V 48V system voltage auto identify.

2. MPPT charging efficiency more than 99.5%.

3. Fanless design with no nosie and free maintainless

4. With RS485 communication interface,more intelligent.

5. Support data storage, storage time can be up to 10 years.

6. Synchronous rectification technology.

7. Dual peaks and multi-peak tracking technology.

8.Japan imported power kits with better performance and more durable.

9. Common cathode circuit design makes the system more stable and reliable.

10. Support for parallel conenction, 99 sets max.

11.Super heat sink and fanless design with no nosie and free maintenance-free.

Product Parameters:

Parameters Name The parameter values (and adjustable range) Default values
Current 10A 20A 30A 40A
System Voltage 12V,24V,48V
Photovoltaic max input voltage

20V～100V(12V system Voltage)

40V～150V(suggest lower than 145V)(24Vsystem Voltage)

80V～150V(suggest lower than 145V)(48Vsystem Voltage)
Rated working current 10A 20A 30A 40A
Photovoltaic max input power

120W/12V

240W/24V

480W/48V

240W/12V

480W/24V

960W/48V

360W/12V

720W/24V

1440W/48V

480W/12V

960W/24V

1920W/48V
Output Rated Current 10A 15A 20A 20A
MPPT efficiency ﹥99.5%

Conversion

efficiency

 ﹥96%
Over voltage (over charge) 16～17V,×nV 16V,×nV
Over voltage recovery 15～15.5V, ×nV 15V,×nV
Charging limit voltage 15.5～16V, ×nV 15.5V,×nV
Equalizing charge voltage 15～15.5V, ×nV 15.2V,×nV
Boost charge voltage 14～15V, ×nV 14.4V,×nV
Boost charge recovery 12.3～13.5V,×nV 13.2V,×nV
voltage 13.2～14.0,×nV 13.8V,×nV
Over discharge voltage 9.8～11.8V,×nV 10.8V,×nV
Over discharge recovery 12.0～13.0V,×nV 12.6V,×nV
Equalizing charge time 1/2/3 hour 1H
Boost charge time 1/2/3 hour 1H
Device address 1～99 6
Light control OPEN voltage 5～11V 5
Light control CLOSE voltage 5～11V 6

Light control

time delay

 10min
Temperature compensation 0～4 4
Over temperature protection When the temperature reaches 75 ℃ charging current is limited to half of the rated current, When the temperature reaches 90 ℃ charging and load are shut off
Working temperature -20℃～50℃
Storage temperature -40℃～80℃
Humidity 10% ～ 90% Non-condensate
Weight 2.15kg
Size 185*193*80mm(20～30A)
