Single Commercial LED Wall Pack Lights For Courtyards / Shopping Malls
Single Commercial LED Wall Pack Lights For Courtyards / Shopping Malls
Single Commercial LED Wall Pack Lights For Courtyards / Shopping Malls
Single Commercial LED Wall Pack Lights For Courtyards / Shopping Malls
Single Commercial LED Wall Pack Lights For Courtyards / Shopping Malls
Single Commercial LED Wall Pack Lights For Courtyards / Shopping Malls
Single Commercial LED Wall Pack Lights For Courtyards / Shopping Malls
Single Commercial LED Wall Pack Lights For Courtyards / Shopping Malls
Specifications
Brand Name :
HG
MOQ :
1 piece
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Place of Origin :
Guang dong
Certification :
CE, EMC
Model Number :
YGWL182A
Supply Ability :
1 day produce 10 pieces
Delivery Time :
Within 2 weeks
Packaging Details :
customization
Efficacy :
110 lm/W
Size :
189x200x127mm
Port :
Shanghai Qingdao
Distribution :
18° 24° 36°
Chip :
CREE
Power supply :
Mean Well
Application :
Suitable for corridors, courtyards, shopping malls, gardens and parks
Description

Single light LED Wall-pack Light Wall light courtyards, shopping malls, gardens and parks

Selling point recommendation

1. The lamp body is made of high quality aluminum and the surface is electrostatically sprayed.
2. The lamp body is beautiful and exquisite, sealed with tempered glass and silicone rubber.
3. The light source adopts high-brightness imported chip, which has high luminous efficiency, low energy consumption and low heat.
4. COB light source.

Technical Parameter

Type Wattage CCT Distribution CRI Voltage Finish Efficacy control

YGWL182A

Single light

9 W

12W

3000K

4000K

5000K

5700K

18°

24°

36°

 ＞70 100-277V

light Black(RAL7016)

dark Black(Ral9005)

Custom

 110 lm/W none

YGWL182B

Single light

15 W

20W

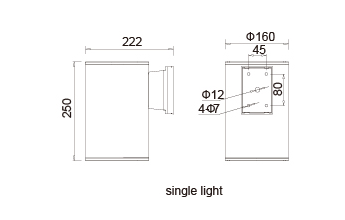

Structure Size

1.YGWL182A Single light

Single Commercial LED Wall Pack Lights For Courtyards / Shopping Malls
Light DistributionCurve
Single Commercial LED Wall Pack Lights For Courtyards / Shopping Malls

2.YGWL182B Single light

Single Commercial LED Wall Pack Lights For Courtyards / Shopping Malls
Light DistributionCurve
Single Commercial LED Wall Pack Lights For Courtyards / Shopping Malls
Application
Indoor architectural lightingoutdoor architectural lightingcorridors
buildingfacade
columns
Single Commercial LED Wall Pack Lights For Courtyards / Shopping Malls

Selling point recommendation

1. The lamp body is made of high quality aluminum and the surface is electrostatically sprayed.
2. The lamp body is beautiful and exquisite, sealed with tempered glass and silicone rubber.
3. The light source adopts high-brightness imported chip, which has high luminous efficiency, low energy consumption and low heat.
4. COB light source.

Technical Parameter

Advantage

1. Green light source, environmental protection.

2. Hight light efficiency;

3. High luminious, low power consumption, save more than 80% energy than traditional light;

4. Wide range of working voltage;
5. Easy installation;

LED wall pack series of luminaries provides an architectural style with super bright, energy efficient LEDs. The low-profile, rugged die-cast aluminum construction, universal back box, stainless steel hardware along with a sealed and gasketed optical compartment make impervious to contaminants. The Crosstour wall luminaire is ideal for wall/surface, inverted mount for facade/canopy illumination, post/bollard and low level pathway illumination including stairs. Typical applications include building entrances, multi-use facilities, apartment buildings, institutions, schools, stairways and loading docks.


This product is CE certified and all materials are in conformity with RoHS standard.


Model Wattage Size Input Voltage Certification Operation Condition IP Grade
MC-WL-UD18A-PX 2*9W Φ108*300mm 100-277Vac;50/60Hz ETL,cETL -20℃~50℃ IP65
MC-WL-UD24A-PX 2*12W 100-277Vac;50/61Hz ETL,cETL -20℃~50℃ IP65
MC-WL-UD36B-PX 2*18W
Φ145*300mm		 100-277Vac;50/62Hz ETL,cETL -20℃~50℃ IP65
MC-WL-UD40B-PX 2*20W 100-277Vac;50/63Hz ETL,cETL -20℃~50℃ IP65
MC-WL-UD48C-PX 2*24W
Φ160*300mm		 100-277Vac;50/64Hz ETL,cETL -20℃~50℃ IP65
MC-WL-UD60C-PX 2*30W 100-277Vac;50/65Hz ETL,cETL -20℃~50℃ IP65
MC-WL-UD72D-PX 2*36W Φ180*300mm 100-277Vac;50/66Hz ETL,cETL -20℃~50℃ IP65
Photometric
Certification ETL,cETL
Luminance 100LPW
CRI >70
R9 6
CCT 2700K~6500K
Basic Specification
Driver Built-in
PF 0.9
Body Material aluminum
Cover Material PC
Warranty 3Years

Structure Size

1.YGWL182A two-side light

Single Commercial LED Wall Pack Lights For Courtyards / Shopping Malls
Light DistributionCurve
Single Commercial LED Wall Pack Lights For Courtyards / Shopping Malls

2.YGWL182B two-side light

Single Commercial LED Wall Pack Lights For Courtyards / Shopping Malls
Light DistributionCurve
Single Commercial LED Wall Pack Lights For Courtyards / Shopping Malls
Company Information
Anhui Huangguang Industrial Co., Ltd. is a specialized company focusing on lighting design, lighting product development and sales, smart home products and control. The company's products are widely used in industrial, commercial, civil, military, full consideration of user experience and visual effects, for users to set up, customize personalized products, to achieve the combination of art and technology.
