High Power Lead Acid Battery Constant Solar Charge Controller 12V 24V 5A 10A 15A 20A
High Power Lead Acid Battery Constant Solar Charge Controller 12V 24V 5A 10A 15A 20A
High Power Lead Acid Battery Constant Solar Charge Controller 12V 24V 5A 10A 15A 20A
High Power Lead Acid Battery Constant Solar Charge Controller 12V 24V 5A 10A 15A 20A
Specifications
Brand Name :
JNGE POWER
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Place of Origin :
Guang dong
Certification :
CE & ROHS
Place Of Origin :
China
Rated Voltage :
12V/24V Automatic
Warranty :
3 Years
Model Number :
JN-WHBOOSTER
Description

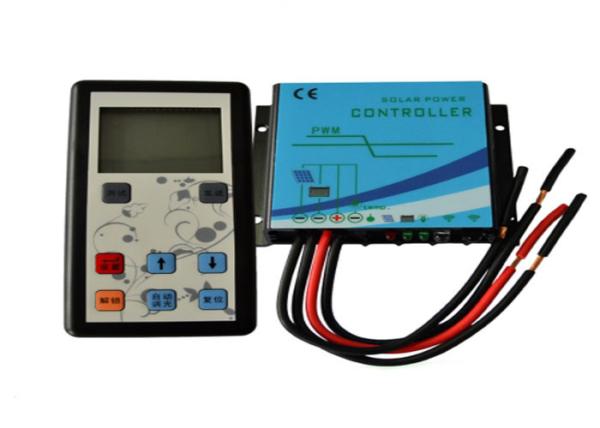

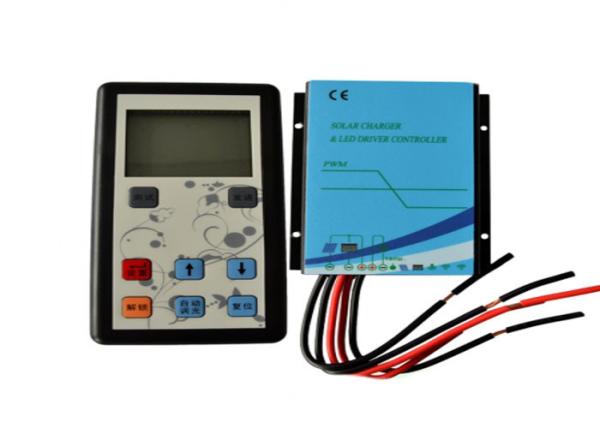

Booster Type Constant Current Solar Charge Controller PWM 12V 24V 5A 10A 15A 20A High Power With Remote

I. Product Description

JN-WH series constant current pwm controller adopts a new way of digital constant current source design, compared with the previous generation of products with adjustable parameters, the LED current is adjustable, the power set of new features.At the same time inherited predecessor generation product of high efficiency, high power density, lamp bead seri es driver, multistage dimming, etc.
JN-WH series constant current all-in-one adopts infrared wireless communication technology, constant current machine with the remote control can realize the solar controller rv parameter Settings.Users can set different control parameters according to actual condition, make the system work in the optimal state.

II.Main Feature

1. Brand new wireless remote control design, through the handheld device can modify the controller parameters;

2. Data communication use the handshake protocol and data compression algorithm for many times, makes a fast data transmission;

3. Real constant current pfc controller control, are free to set the constant current value, based on constant current value of the dimming technology;

4. IP68 waterproof rating, aluminum design, can effectively prevent all forms of corrosion.

5. The highest efficiency of 95%;

6. Automatic dimmer mode can be regulated according to battery power load power;

7. Four times dimmer design, working time 0 ~ 15 hours can be set, 0% ~ 100% power can be set;

8. Improved three-step charging algorithm, effectively prevent the battery inequality and sulfuration, improve battery life..

9.Over-charges, over discharge, short circuit protection and overload protection as well as electronic protection against reverse polarity.

III.Technical parameters

System voltage 12V/24V Auto
System current 5A/10A/15A/20A
Discharge current Can be set up by the remote control, range 0.33 ~ 3.30 A, default: 0.33 A
Rated power 12V->60W/×2/24V ->120W
Solar input voltage < 55V
Short circuit protection 4.5A/10uS
Equalizing charge voltage 14.7V; *2/24V(25℃), hold time:1 hour
Float charge voltage Through remote control set,defaults to:12V->13.8V/×2/24->27.6V
Improve charging pressure Through remote control set,defaults to:12V->14.4V/×2/24->28.8V
Over discharge voltage Through remote control set,defaults to:12V->12.5V/×2/24->25.0V
Charge return voltage Through remote control set,defaults to:12V->10.8V/×2/24->21.6V
Light control OPEN voltage Through remote control set,defaults to:12V->4.0V/×2/24V ->8.0V
Light control CLOSE voltage Through remote control set,defaults to:12V->8.0V/×2/24V->16.0V
Temperature compensation -4.0mv/℃/2V
Current Accuracy ±5%
No-load consumption < 25mA
lamp bead in series amount 12V->5～10PCS//24V ->10～20PCS
Working temperature -35℃-------+65℃;
Protection level IP68
Net weight 0.15Kg
Size 102*81*19.6(mm)(L×W×H)

Product Advantages:

1. 12V 24V 48V system voltage auto identify.

2. MPPT charging efficiency more than 99.5%.

3. Fanless design with no nosie and free maintainless

4. With RS485 communication interface,more intelligent.

5. Support data storage, storage time can be up to 10 years.

6. Synchronous rectification technology.

7. Dual peaks and multi-peak tracking technology.

8.Japan imported power kits with better performance and more durable.

9. Common cathode circuit design makes the system more stable and reliable.

10. Support for parallel conenction, 99 sets max.

11.Super heat sink and fanless design with no nosie and free maintenance-free.

Product Parameters:

Parameters Name The parameter values (and adjustable range) Default values
Current 10A 20A 30A 40A
System Voltage 12V,24V,48V
Photovoltaic max input voltage

20V～100V(12V system Voltage)

40V～150V(suggest lower than 145V)(24Vsystem Voltage)

80V～150V(suggest lower than 145V)(48Vsystem Voltage)
Rated working current 10A 20A 30A 40A
Photovoltaic max input power

120W/12V

240W/24V

480W/48V

240W/12V

480W/24V

960W/48V

360W/12V

720W/24V

1440W/48V

480W/12V

960W/24V

1920W/48V
Output Rated Current 10A 15A 20A 20A
MPPT efficiency ﹥99.5%

Conversion

efficiency

 ﹥96%
Over voltage (over charge) 16～17V,×nV 16V,×nV
Over voltage recovery 15～15.5V, ×nV 15V,×nV
Charging limit voltage 15.5～16V, ×nV 15.5V,×nV
Equalizing charge voltage 15～15.5V, ×nV 15.2V,×nV
Boost charge voltage 14～15V, ×nV 14.4V,×nV
Boost charge recovery 12.3～13.5V,×nV 13.2V,×nV
voltage 13.2～14.0,×nV 13.8V,×nV
Over discharge voltage 9.8～11.8V,×nV 10.8V,×nV
Over discharge recovery 12.0～13.0V,×nV 12.6V,×nV
Equalizing charge time 1/2/3 hour 1H
Boost charge time 1/2/3 hour 1H
Device address 1～99 6
Light control OPEN voltage 5～11V 5
Light control CLOSE voltage 5～11V 6

Light control

time delay

 10min
Temperature compensation 0～4 4
Over temperature protection When the temperature reaches 75 ℃ charging current is limited to half of the rated current, When the temperature reaches 90 ℃ charging and load are shut off
Working temperature -20℃～50℃
Storage temperature -40℃～80℃
Humidity 10% ～ 90% Non-condensate
Weight 2.15kg
Size 185*193*80mm(20～30A)

High Power Lead Acid Battery Constant Solar Charge Controller 12V 24V 5A 10A 15A 20A

High Power Lead Acid Battery Constant Solar Charge Controller 12V 24V 5A 10A 15A 20A

High Power Lead Acid Battery Constant Solar Charge Controller 12V 24V 5A 10A 15A 20A

High Power Lead Acid Battery Constant Solar Charge Controller 12V 24V 5A 10A 15A 20A

High Power Lead Acid Battery Constant Solar Charge Controller 12V 24V 5A 10A 15A 20A

High Power Lead Acid Battery Constant Solar Charge Controller 12V 24V 5A 10A 15A 20A

High Power Lead Acid Battery Constant Solar Charge Controller 12V 24V 5A 10A 15A 20A

High Power Lead Acid Battery Constant Solar Charge Controller 12V 24V 5A 10A 15A 20A

High Power Lead Acid Battery Constant Solar Charge Controller 12V 24V 5A 10A 15A 20A
