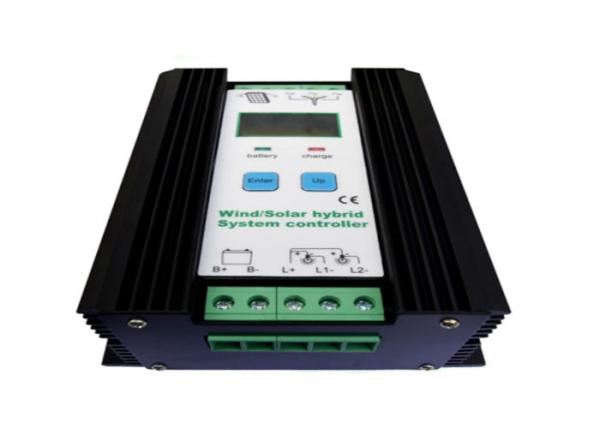

LCD Economic Lead Acid Battery 12v / 24v PWM Wind Solar Hybrid System Controller
LCD Economic Lead Acid Battery 12v / 24v PWM Wind Solar Hybrid System Controller
LCD Economic Lead Acid Battery 12v / 24v PWM Wind Solar Hybrid System Controller
LCD Economic Lead Acid Battery 12v / 24v PWM Wind Solar Hybrid System Controller
Specifications
Brand Name :
JNGE POWER
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Place of Origin :
Guang dong
Certification :
CE ROHS
Place Of Origin :
China
Rated Voltage :
12V/24V
Warranty :
3 Years
Net Weight :
1.15kg
Model Number :
JW
Description

LCD Economic PWM Wind Solar Hybrid System Controller 12v/24v Auto

1.Intelligent design succinct structure, control powerful, stable performance, safety and reliability of the products.
2.Use PWM step less unloading way.LCD display battery voltage and power.
3.Professional digital intelligent control.
4.Perfect protection. CE testing approval.

Product Features:

1. Intelligent design, simple structure,control powerful,stable performance,safety and reliability
2. Digital intelligent control
3. Booster charge function, low wind speed can charging
4. LCD display, all parameters are visible directly
5. Liquid crystal display battery charging electric current and voltage

Product Parameters:

Model JW1230 JW2430 JW2450 JW2460
Rated voltage 12V 24V 24V 24V
Component power 200W 150W 250W 400W
Power of fan 300W 300W 500W 600W

charging

 charging 30A 20A 23A 41.6A
Even charge protection 14.4V±1% 28.8V±1%
floating Charge 13.8V±1% 27.6V±1%
Even charge recover 13.2V±1% 26.4V±1%
Temperature Compensation -24mV/℃ -48mV/℃

Over Discharge

 Shut off (DC) 10.8V±1% 21.8V±1%
Resume (DC) 12.3V±1% 24.6V±1%

Over Voltage

 Shut off (DC) 16V±1% 32V±1%
Resume (DC) 15V±1% 30V±1%
No-load Current ≤0.1A ≤0.1A
Voltage drop (DC) ≤0.5
Control mode Fan MPPT charge function, PWM uninstall function, PWM over-current limiting
Boost charge Flexible independent step-up circuit (optional)
Display Display
Show parameters voltage,charge current,battery volumetric

Protected type

 Lightning protection, solar cells, anti-anti-charge protection, battery open-circuit protection, battery reversal protection, over speed and over-voltage soft automatic brake protection, overload protection.
Heat emanation way radiator
Working Temperature -25℃~+55℃
Height ≤5500m(2000m above the need to reduce power use)
Environment humidity 0~90%,No condensation
Net Weight 1.20KG
Size(L*W*H) 162×140×64(MM)

Product Advantages:

1. 12V 24V 48V system voltage auto identify.

2. MPPT charging efficiency more than 99.5%.

3. Fanless design with no nosie and free maintainless

4. With RS485 communication interface,more intelligent.

5. Support data storage, storage time can be up to 10 years.

6. Synchronous rectification technology.

7. Dual peaks and multi-peak tracking technology.

8.Japan imported power kits with better performance and more durable.

9. Common cathode circuit design makes the system more stable and reliable.

10. Support for parallel conenction, 99 sets max.

11.Super heat sink and fanless design with no nosie and free maintenance-free.

Product Parameters:

Parameters Name The parameter values (and adjustable range) Default values
Current 10A 20A 30A 40A
System Voltage 12V,24V,48V
Photovoltaic max input voltage

20V～100V(12V system Voltage)

40V～150V(suggest lower than 145V)(24Vsystem Voltage)

80V～150V(suggest lower than 145V)(48Vsystem Voltage)
Rated working current 10A 20A 30A 40A
Photovoltaic max input power

120W/12V

240W/24V

480W/48V

240W/12V

480W/24V

960W/48V

360W/12V

720W/24V

1440W/48V

480W/12V

960W/24V

1920W/48V
Output Rated Current 10A 15A 20A 20A
MPPT efficiency ﹥99.5%

Conversion

efficiency

 ﹥96%
Over voltage (over charge) 16～17V,×nV 16V,×nV
Over voltage recovery 15～15.5V, ×nV 15V,×nV
Charging limit voltage 15.5～16V, ×nV 15.5V,×nV
Equalizing charge voltage 15～15.5V, ×nV 15.2V,×nV
Boost charge voltage 14～15V, ×nV 14.4V,×nV
Boost charge recovery 12.3～13.5V,×nV 13.2V,×nV
voltage 13.2～14.0,×nV 13.8V,×nV
Over discharge voltage 9.8～11.8V,×nV 10.8V,×nV
Over discharge recovery 12.0～13.0V,×nV 12.6V,×nV
Equalizing charge time 1/2/3 hour 1H
Boost charge time 1/2/3 hour 1H
Device address 1～99 6
Light control OPEN voltage 5～11V 5
Light control CLOSE voltage 5～11V 6

Light control

time delay

 10min
Temperature compensation 0～4 4
Over temperature protection When the temperature reaches 75 ℃ charging current is limited to half of the rated current, When the temperature reaches 90 ℃ charging and load are shut off
Working temperature -20℃～50℃
Storage temperature -40℃～80℃
Humidity 10% ～ 90% Non-condensate
Weight 2.15kg
Size 185*193*80mm(20～30A)
