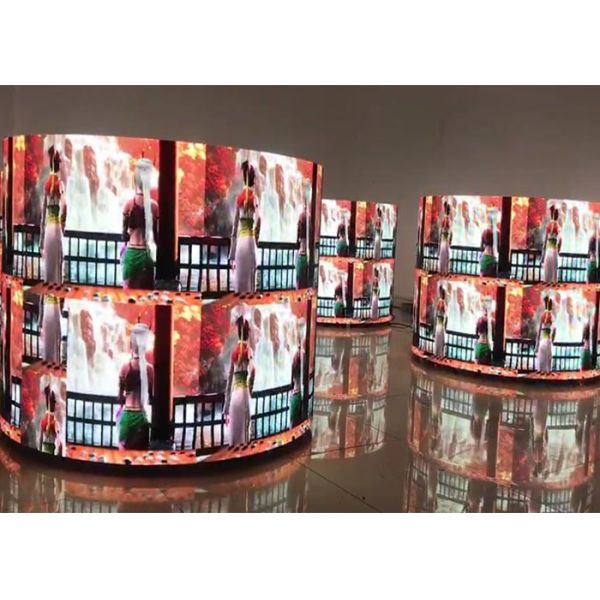

Indoor Soft Flexible LED Displays Module P4 60x30 Dots Rgb Video Wall Panel
Indoor Flexible Soft Led Display Module P4 60x30 Matrix Rgb Lamp Video Wall Panel
Product description
1. Most of the installation methods are magnetic column suction, and the installation method of "one installation is ready" is adopted, that is, the customization of the shape is completed according to the customer's needs, and then it can be directly adsorbed to achieve one-step installation.
2. The product supports a variety of signal inputs, such as AV, DP, VGA, DVI, YPbPr, HDMI, SDI, H-SDI, etc.
3. Shopping malls, enterprises, schools, stages, banks, securities, public security, transportation, industry and commerce, electricity, customs, hospitals, parks, airports, stations, stadiums and other fields.
4. The edited content of the computer is sent to the system control card, and the edited content can be displayed, and the system operation is very convenient.
5. Within the visible distance, when the sun shines directly on the screen surface, the display content is still clearly visible.
Pixel Pitch | 4mm | |||
LED Lamp | SMD2121 | |||
LED configuration | SMD 3 in 1 | |||
Module Size | 240mm x 120mm | |||
Module pixels | 60x30 dots | |||
Average Power/sqm (watts) | 186 | |||
Max Power/sqm(watts) | 620 | |||
Brightness | 1000cd/㎡ | |||
Viewing Angle | H:160°, V:120° | |||
Best Viewing Distance | 4-200 meters | |||
Brightness Control | 256 level | |||
Gray scale | 14 bit | |||
Refresh frequency | 3840hertz | |||
Driving mode | 1/15 scan | |||
Input power frequency | 50 or 60 Hertz | |||
Input Voltage | 110 ~ 240 Volt,60Hz | |||
Blind spot rate | <1/10000 | |||
Lifetime at 50% brightness | 100000 hours | |||
Ingress Protection | IP31 | |||
Operating temperature | ﹣20 ~﹢60 ℃ | |||
Operating humidity | 10% ~ 90% | |||
Control distance | CAT5 cable:<100 m; Single mode fiber:<10 km | |||
Signal input format | HDMI,DVI,SDI,VGA etc. | |||
Operating system | Windows (2000/XP/Vista/7/8/10) |
One- Stop Solution Service
1.3D/CAD engineering drawing to confirm project execution/implementation as presale service within 72 hours.
2.Free CAD drawings for steel structure, signal/power connections of led display which guide for site cable arrangement and structure preparation in advance.
3.7/24 online remote control service , and local engineer service within 8 hours contact.
4.Free technical training in factory.
5.MPLED engineers will fly to the site if you need local service.
6.Expanding market plan with professional MPLED team over 8 years experience.
7.Multiple options for global transportation, like FOB, CIF, DDP, DDU to most countries.
Sole Agent
MPLED cooperated with local team to expand Led display business, and signed sole agent in Saudi Arabia, Egypt, New Zealand, Germany and Indonesia.
Also had local installation and maintenance team in Cambodia, France, Middle East, Indonesia, United States, South Korea, Ghana.
FAQ
Q: Are you manufacturer or trade company?
A: We are manufacturer,
Q: Do you offer OEM&ODM service?
A: Yes, we do.
Q: What’s the quality standard of your products?
A: Our products has approved CCC, ISO9001, CE, RoHS certification.
Q: Which place will use ITC equipment?
A: Our products are widely used in International Conferences, Governments,Banks,Churches, Highways,Airports,Parliaments,Education institutes,Hotel,Private corporate conference hall and so on.
Q: What project did you have done in overseas?
A: 2017, MPLED P6 outdoor led display assist for Senator Election of South Korea
2018, MPLED P10 outdoor led display light up in The World Cup in Russia
2019, MPLED P2.97 stage led display stand the stage for Senator Election of Indonesia
2020, MPLED P1.86 led display(more than 150sq.m) install in Singapore Casino
2020, MPLED P3 led display covered the SAINT PHILA CONVENTION HALL
2021, MPLED P8 outdoor customized wave led display light up in Kuwait landmark
