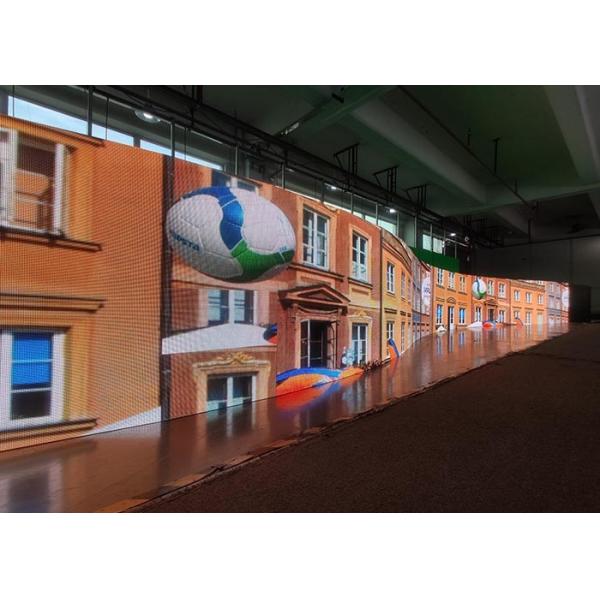

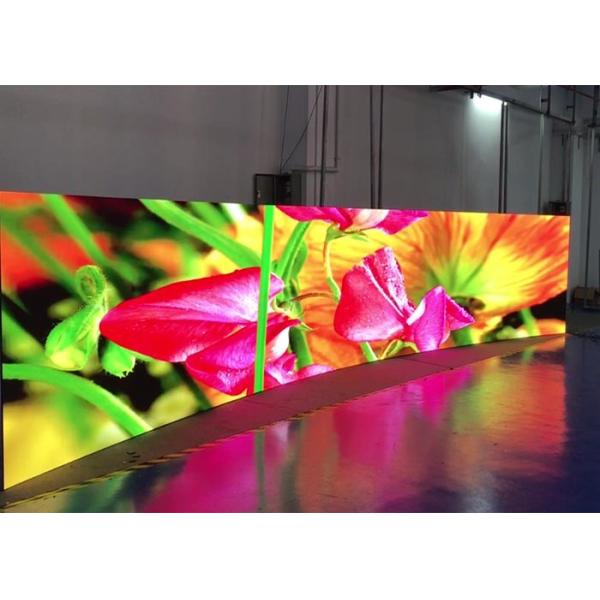

P4 Curved Flexible Led Display Screen 240x120mm For Advertising
P4 Curved Display Flexible LED Screen Soft LED Module For Advertising
Product description
1. Shopping malls, enterprises, schools, stages, banks, securities, public security, transportation, industry and commerce, electricity, customs, hospitals, parks, airports, stations, stadiums and other fields.
2. There are large viewing angles both horizontally and vertically, which is suitable for environments with wide horizontal distribution and large height differences.
3. It can be arbitrarily shaped, among which the cylindrical screen has high brushing performance and can be hoisted, seated, hung, etc., to meet the requirements of the site to the greatest extent.
4. Most of the installation methods are magnetic column suction, and the installation method of "one installation is ready" is adopted, that is, the customization of the shape is completed according to the customer's needs, and then it can be directly adsorbed to achieve one-step installation.
5. It can be made into any shape according to the needs of users. the flatness is good, the use of silica gel, the hand feels soft and the fingers are not protruding.
Pixel Pitch | 4mm | |||
LED Lamp | SMD2121 | |||
LED configuration | SMD 3 in 1 | |||
Module Size | 240mm x 120mm | |||
Module pixels | 60x30 dots | |||
Average Power/sqm (watts) | 186 | |||
Max Power/sqm(watts) | 620 | |||
Brightness | 1000cd/㎡ | |||
Viewing Angle | H:160°, V:120° | |||
Best Viewing Distance | 4-200 meters | |||
Brightness Control | 256 level | |||
Gray scale | 14 bit | |||
Refresh frequency | 3840hertz | |||
Driving mode | 1/15 scan | |||
Input power frequency | 50 or 60 Hertz | |||
Input Voltage | 110 ~ 240 Volt,60Hz | |||
Blind spot rate | <1/10000 | |||
Lifetime at 50% brightness | 100000 hours | |||
Ingress Protection | IP31 | |||
Operating temperature | ﹣20 ~﹢60 ℃ | |||
Operating humidity | 10% ~ 90% | |||
Control distance | CAT5 cable:<100 m; Single mode fiber:<10 km | |||
Signal input format | HDMI,DVI,SDI,VGA etc. | |||
Operating system | Windows (2000/XP/Vista/7/8/10) |
Projects
2017, MPLED P6 outdoor led display assist for Senator Election of South Korea
2018, MPLED P10 outdoor led display light up in The World Cup in Russia
2019, MPLED P2.97 stage led display stand the stage for Senator Election of Indonesia
2020, MPLED P1.86 led display(more than 150sq.m) install in Singapore Casino
2020, MPLED P3 led display covered the SAINT PHILA CONVENTION HALL
2021, MPLED P8 outdoor customized wave led display light up in Kuwait landmark
One- Stop Solution Service
1. 3D/CAD engineering drawing to confirm project execution/implementation as presale service within 72 hours.
2. Free CAD drawings for steel structure, signal/power connections of led display which guide for site cable arrangement and structure preparation in advance.
3. 7/24 online remote control service , and local engineer service within 8 hours contact.
4. Free technical training in factory.
5. MPLED engineers will fly to the site if you need local service.
6. Expanding market plan with professional MPLED team over 8 years experience.
7. Multiple options for global transportation, like FOB, CIF, DDP, DDU to most countries.
Sole Agent
MPLED cooperated with local team to expand Led display business, and signed sole agent in Saudi Arabia, Egypt, New Zealand, Germany and Indonesia.
Also had local installation and maintenance team in Cambodia, France, Middle East, Indonesia, United States, South Korea, Ghana.
FAQ
Q1: Is the product customizable?
A: Yes,we can customize the product according to customers' needs, you just need to provide the requirements details.
Q2: Do you test all your goods before delivery?
A: Yes,we have 100% test before delivery.
Q3:What is your terms delivery?
A: EXW,FOB, CFR, CIF, DDP, DDU...
Q4: How about your warranty?
A: Different product offer different time frame warranty, but all product here we offer 2year at least warranty.
Q5: What kind of packaging you offer?
A: During the packaging process, preventive measures will be taken by us to assure that the goods are in a good condition during storage and delivery.
