Specifications
Brand Name :
MPLED
Model Number :
P2
Certification :
CE/ROHS/FCC/ISO/UL
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000sqm
Delivery Time :
7-10 working days after receive your payment
Packaging Details :
flight case/ wooden case/ carton/ it is up to you
Product name :
Flexible Display Module Custom
Module size :
240x120mm
Cabinet size :
Customized
Refresh frequency :
3840Hz
Gray scale :
16 bit
Ingress Protection :
IP31
Description

Bendable P2 Flexible LED Displays Module Foldable SMD1515 14 Bit

P2 Bendable Flexible Display Module Custom Size Foldable Led Screen Price

Product description

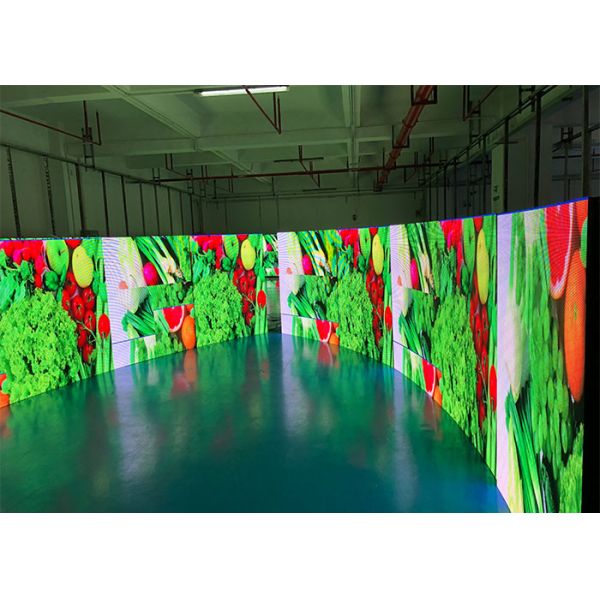

1. Applicable to the cylindrical design of units, shopping malls, bars, stage backgrounds, exhibition halls, planning exhibition halls, etc.

2. The led soft module series are available in P1.875/P2/P2.5/P3/P4 specifications.

3. Soft, light and thin, suitable for any bending effect.

4. Low current, low heat, high contrast, high brightness and high gray, refreshing 1920Hz, true 16bit gray scale, with SMD1515 pure black light, the black screen is exactly the same as the twilight of the whole screen.

5. It has the characteristics of thinness, light weight, small size, high pixel density, low installation cost, displayable curved surface, and 360-degree multi-screen viewing.

6. Unique design guarantees quick installation and convenient transportation. bendable led screen

Pixel Pitch 2mm
LED Lamp SMD1515
LED configuration SMD 3 in 1
Module Size 240mm x120mm
Module pixels 120x60dots
Average Power/sqm (watts) 159
Max Power/sqm(watts) 530
Brightness 800cd/㎡
Viewing Angle H:160°, V:120°
Best Viewing Distance 2-200 meters
Brightness Control 256 level
Gray scale 14 bit
Refresh frequency 3840hertz
Driving mode 1/30 scan
Input power frequency 50 or 60 Hertz
Input Voltage 110 ~ 240 Volt,60Hz
Blind spot rate <1/10000
Lifetime at 50% brightness 100000 hours
Ingress Protection IP31
Operating temperature ﹣20 ~﹢60 ℃
Operating humidity 10% ~ 90%
Control distance CAT5 cable:<100 m; Single mode fiber:<10 km
Signal input format HDMI,DVI,SDI,VGA etc.
Operating system Windows (2000/XP/Vista/7/8/10)

Bendable P2 Flexible LED Displays Module Foldable SMD1515 14 BitBendable P2 Flexible LED Displays Module Foldable SMD1515 14 Bit

One- Stop Solution Service

1.3D/CAD engineering drawing to confirm project execution/implementation as presale service within 72 hours.

2.Free CAD drawings for steel structure, signal/power connections of led display which guide for site cable arrangement and structure preparation in advance.

3.7/24 online remote control service , and local engineer service within 8 hours contact.

4.Free technical training in factory.

5.MPLED engineers will fly to the site if you need local service.

6.Expanding market plan with professional MPLED team over 8 years experience.

7.Multiple options for global transportation, like FOB, CIF, DDP, DDU to most countries

FAQ

Q: Are you manufacturer or trade company?
A: We are manufacturer,

Q: Do you offer OEM&ODM service?
A: Yes, we do.

Q: What’s the quality standard of your products?
A: Our products has approved CCC, ISO9001, CE, RoHS certification.

Q: Which place will use ITC equipment?
A: Our products are widely used in International Conferences, Governments,Banks,Churches, Highways,Airports,Parliaments,Education institutes,Hotel,Private corporate conference hall and so on.

Q: What project did you have done in overseas?
A: 2017, MPLED P6 outdoor led display assist for Senator Election of South Korea

2018, MPLED P10 outdoor led display light up in The World Cup in Russia

2019, MPLED P2.97 stage led display stand the stage for Senator Election of Indonesia

2020, MPLED P1.86 led display(more than 150sq.m) install in Singapore Casino

2020, MPLED P3 led display covered the SAINT PHILA CONVENTION HALL

2021, MPLED P8 outdoor customized wave led display light up in Kuwait landmark
