Specifications
Brand Name :
MPLED
Model Number :
P3.91
Certification :
CE/ROHS/FCC/ISO/UL
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000sqm
Delivery Time :
7-10 working days after receive your payment
Packaging Details :
flight case/ wooden case/ carton/ it is up to you
Product name :
Concert Stage Background
Brightness :
1200cd/sqm
Module size :
250mm*250mm
Refresh frequency :
3840Hz
Cabinet Size :
500x500mm
Best Viewing Distance :
3.91-200 meters
Description

64x64 Dots Concert Stage Rental LED Screen Video Wall Panel 1200cd/Sqm

Concert Stage Background P3mm Indoor Pitch Rental Video Wall Panel

Product presentation

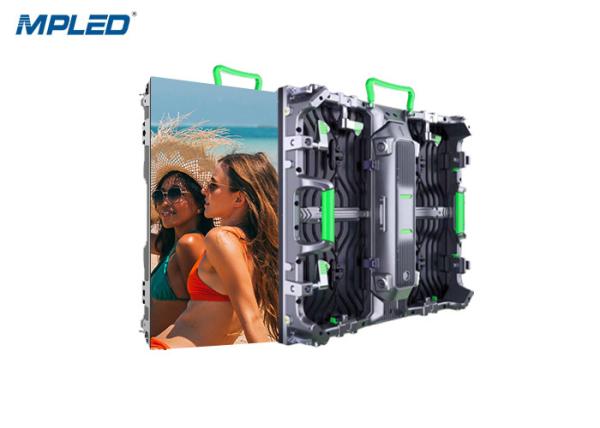

1. Excellent product came in all details from cabinet handle. cabinet fxied slot, fast lock, magnet adsorption module, module installation knob, Power& signal connector, detachable power boxing, and more.

2. 500*500mm standard cabinet size Ultra-Light die-casting aluminum. ultra-thin thickness with 88mm.For easy transport and Portable.

3. Dual Service with Frontal and Rear Maintenance.

4. Can be built any shape or size since they are constructed of individual panels you can stack them so they are very tall or really wide.

5. Precise Arc, Fast Lock,9s to replace angle block, arcing faster,From -5 °(convex) to +10°(concave), wide range of curving,creative screen shapes and sizes.

6. The calibration data will be updated automatically when the damaged module is replaced.

Pixel Pitch 3.91mm
LED Lamp SMD2121
IC ICN2153
Module Size 250x250mm
Module pixels 64x64 dots
Cabinet Size(WxHxD)(mm) 500x500x88 mm
Module Quantity(pcs) 8
Cabinet resolution WxH 128x128dots
Cabinet Material Aluminum die casting
Cabinet Weight (kg) 7.5
Average Power/sqm (watts) 200
Max Power/sqm(watts) 650
Brightness 1200cd/㎡
Viewing Angle H:160°, V:120°
Best Viewing Distance 3.91-200 meters
Brightness Control 256 level
Gray scale 16 bit
Refresh frequency 3840hertz
Driving mode 1/16 scan
Input power frequency 50 or 60 Hertz
Input Voltage 110 ~ 240 Volt,60Hz
Blind spot rate <1/10000
Lifetime at 50% brightness 100000 hours
Ingress Protection IP30
Operating temperature ﹣20 ~﹢60 ℃
Operating humidity 10% ~ 90%
Control distance CAT5 cable:<100 m; Single mode fiber:<10 km
Signal input format HDMI,DVI,SDI,VGA etc.
Operating system Windows (2000/XP/Vista/7/8/10)

64x64 dots Concert Stage Rental LED Screen Video Wall Panel 1200cd/sqm64x64 dots Concert Stage Rental LED Screen Video Wall Panel 1200cd/sqm

FAQ

Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.

Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity.For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.

Q9: What project did you have done in overseas?
A: 2017, MPLED P6 outdoor led display assist for Senator Election of South Korea

2018, MPLED P10 outdoor led display light up in The World Cup in Russia

2019, MPLED P2.97 stage led display stand the stage for Senator Election of Indonesia

2020, MPLED P1.86 led display(more than 150sq.m) install in Singapore Casino

2020, MPLED P3 led display covered the SAINT PHILA CONVENTION HALL

2021, MPLED P8 outdoor customized wave led display light up in Kuwait landmark
