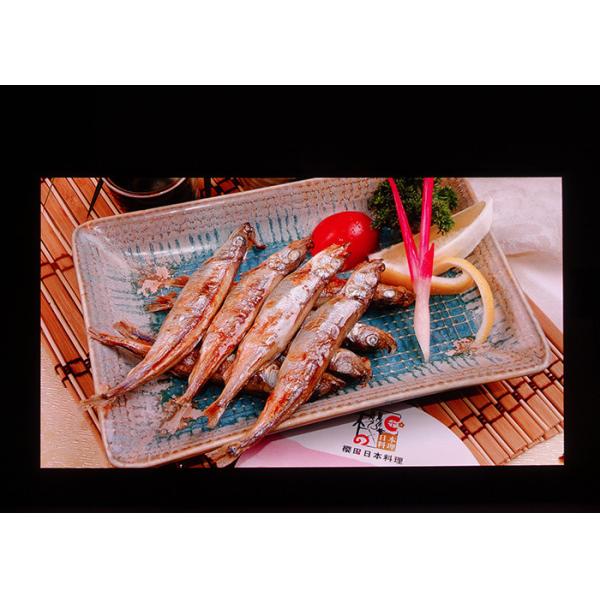

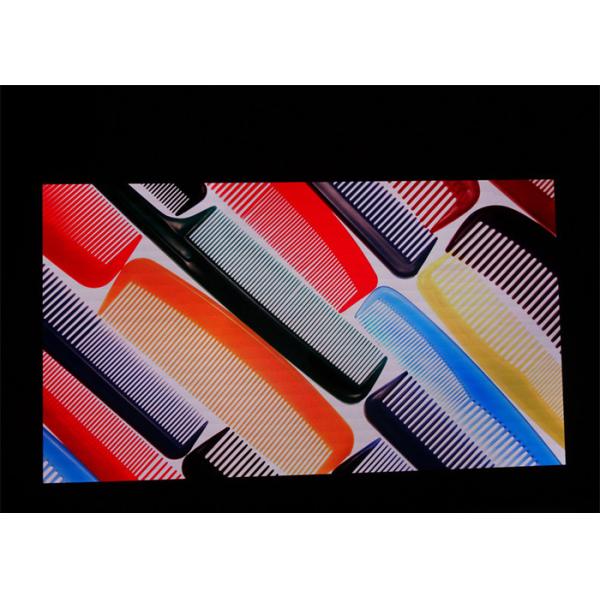

P1.875 Small Pitch LED Display Indoor 3840Hz 4K HD High Brightness
Small Pixel Pitch 4K HD Front Service P1.875 Indoor Led Display
Product description
1. 640mm*480mm cabinet size. can be assmbled with variety of 4:3 and 16:9 large screens.
2. Modules, power supplies and internal cables are accessible from the front, which makes installation and maintenance easy for one person.
3. More reliable and more suitable for the important projection like security monitoring, exhibition hall display and the enterprise meeting.
4. 1 + 1 backup--The main and standby power supply are installed in the cabinet, which can switch automatically if malfunction happens.
5. High brightness, high gray scale, high refresh rate, high contrast ratio with perfect performance.
6. All-in-One Design Embedded system controller, PSU, audio No external devices required ,Hidden cable design, elegant simplicity
Pixel Pitch | 1.8mm | |||
LED Lamp | SMD1515 | |||
IC | ICN2153 | |||
Module Size | 320x160mm | |||
Module pixels | 172x86dots | |||
Cabinet Size(WxH)(mm) | 680x480mm | |||
Module Quantity(pcs) | 6 | |||
Cabinet resolution WxH | 344x256dots | |||
Cabinet Material | Aluminum die casting | |||
Cabinet Weight (kg) | 7 | |||
Average Power/sqm (watts) | 200 | |||
Max Power/sqm(watts) | 600 | |||
Brightness | 800cd/㎡ | |||
Viewing Angle | H:160°, V:120° | |||
Best Viewing Distance | 1.8-200 meters | |||
Brightness Control | 256 level | |||
Gray scale | 16 bit | |||
Refresh frequency | 3840hertz | |||
Driving mode | 1/43 scan | |||
Input power frequency | 50 or 60 Hertz | |||
Input Voltage | 110 ~ 240 Volt,60Hz | |||
Blind spot rate | <1/10000 | |||
Lifetime at 50% brightness | 100000 hours | |||
Ingress Protection | IP30 | |||
Operating temperature | ﹣20 ~﹢60 ℃ | |||
Operating humidity | 10% ~ 90% | |||
Control distance | CAT5 cable:<100 m; Single mode fiber:<10 km | |||
Signal input format | HDMI,DVI,SDI,VGA etc. | |||
Operating system | Windows (2000/XP/Vista/7/8/10) |
Projects
2017, MPLED P6 outdoor led display assist for Senator Election of South Korea
2018, MPLED P10 outdoor led display light up in The World Cup in Russia
2019, MPLED P2.97 stage led display stand the stage for Senator Election of Indonesia
2020, MPLED P1.86 led display(more than 150sq.m) install in Singapore Casino
2020, MPLED P3 led display covered the SAINT PHILA CONVENTION HALL
2021, MPLED P8 outdoor customized wave led display light up in Kuwait landmark
FAQ
Q1: Is the product customizable?
A: Yes,we can customize the product according to customers' needs, you just need to provide the requirements details.
Q2: Do you test all your goods before delivery?
A: Yes,we have 100% test before delivery.
Q3:What is your terms delivery?
A: EXW,FOB, CFR, CIF, DDP, DDU...
Q4: How about your warranty?
A: Different product offer different time frame warranty, but all product here we offer 2year at least warranty.
Q5: What kind of packaging you offer?
A: During the packaging process, preventive measures will be taken by us to assure that the goods are in a good condition during storage and delivery.
