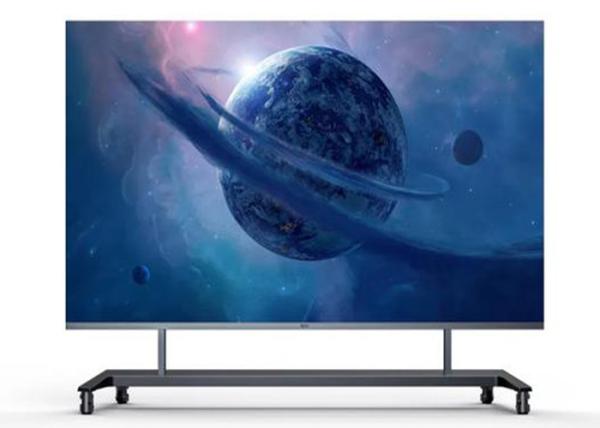

HD Indoor Seamless LED Video Wall Studio Small Pixel Pitch P1.875 Display
HD Indoor Seamless LED Video Wall Studio Small Pixel Pitch P1.875 Display
HD Indoor Seamless LED Video Wall Studio Small Pixel Pitch P1.875 Display
HD Indoor Seamless LED Video Wall Studio Small Pixel Pitch P1.875 Display
Specifications
Brand Name :
MPLED
Model Number :
P1.8
Certification :
CE/ROHS/FCC/ISO/UL
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000sqm
Delivery Time :
7-10 working days after receive your payment
Packaging Details :
flight case/ wooden case/ carton/ it is up to you
Product name :
2022 new high resolution p1.25 p1.875 full
Product :
on sale custom p1.86 p2 p2.5 p3 p4 led video wall
name :
p1.875 led
the name or description of a commodity :
p1.86 led screen
LED Lamp :
SMD1515
Brightness :
800cd/㎡
Description

Ultra HD Indoor Seamless Led Video Wall Studio Small Pixel Pitch P1.875 Led Display

Product description

1.Super slim and light, easy to carry and transport.

2. Signal backup andpower backup.

3. cabinet is very thin which makes it ultra-lightweight and space saving. It Can be installed at any area without requiring much space. The light weight of 7.5kg/panel LED screen is easy to carry, transport and install, saving good amount of money on your labor costs.

4. Each module within a panel stores calibration and operating parameters separately.

5. Hard Connection Design with detachable Power box and HUB Poard.

Pixel Pitch 1.8mm
LED Lamp SMD1515
IC ICN2153
Module Size 320x160mm
Module pixels 172x86dots
Cabinet Size(WxH)(mm) 680x480mm
Module Quantity(pcs) 6
Cabinet resolution WxH 344x256dots
Cabinet Material Aluminum die casting
Cabinet Weight (kg) 7
Average Power/sqm (watts) 200
Max Power/sqm(watts) 600
Brightness 800cd/㎡
Viewing Angle H:160°, V:120°
Best Viewing Distance 1.8-200 meters
Brightness Control 256 level
Gray scale 16 bit
Refresh frequency 3840hertz
Driving mode 1/43 scan
Input power frequency 50 or 60 Hertz
Input Voltage 110 ～ 240 Volt,60Hz
Blind spot rate ＜1/10000
Lifetime at 50% brightness 100000 hours
Ingress Protection IP30
Operating temperature ﹣20 ～﹢60 ℃
Operating humidity 10％ ～ 90％
Control distance CAT5 cable:＜100 m; Single mode fiber:＜10 km
Signal input format HDMI,DVI,SDI,VGA etc.
Operating system Windows (2000/XP/Vista/7/8/10)

HD Indoor Seamless LED Video Wall Studio Small Pixel Pitch P1.875 Display

FAQ

Q: Are you manufacturer or trade company?
A: We are manufacturer,

Q: Do you offer OEM&ODM service?
A: Yes, we do.

Q: What’s the quality standard of your products?
A: Our products has approved CCC, ISO9001, CE, RoHS certification.

Q: Which place will use ITC equipment?
A: Our products are widely used in International Conferences, Governments,Banks,Churches, Highways,Airports,Parliaments,Education institutes,Hotel,Private corporate conference hall and so on.

Q: What project did you have done in overseas?
A: 2017, MPLED P6 outdoor led display assist for Senator Election of South Korea

2018, MPLED P10 outdoor led display light up in The World Cup in Russia

2019, MPLED P2.97 stage led display stand the stage for Senator Election of Indonesia

2020, MPLED P1.86 led display(more than 150sq.m) install in Singapore Casino

2020, MPLED P3 led display covered the SAINT PHILA CONVENTION HALL

2021, MPLED P8 outdoor customized wave led display light up in Kuwait landmark
