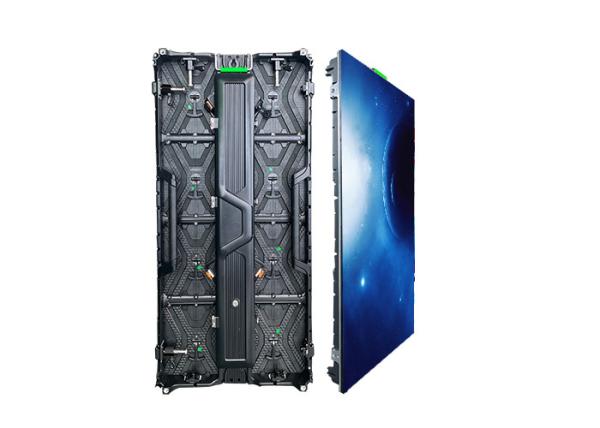

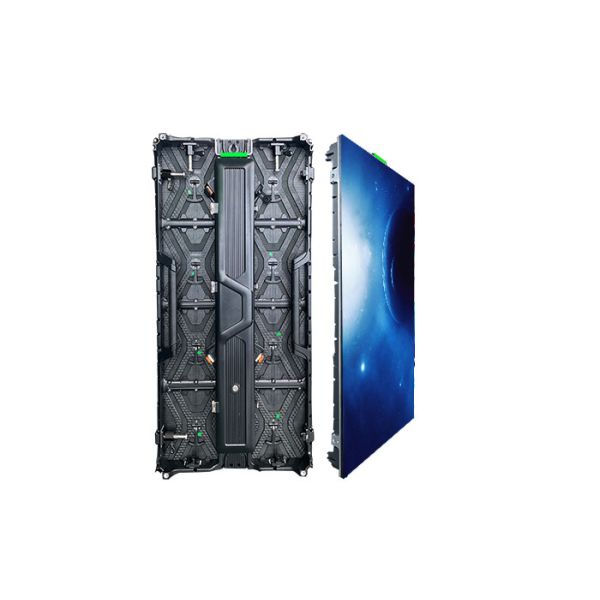

High Definition 500x500mm 500x1000mm p2 p3 p4 Rental Led Concert Screens
Product presentation
Uniform color and natural picture:
Broadcast-grade color gamut, intelligently adjustable color temperature and brightness, uniform color, high contrast, beautiful and natural picture; anti-ultraviolet and anti-deformation module kit to ensure that the screen body is flat and not deformed.
Wide viewing angle:
160-degree viewing angle up and down, left and right, broadcast-grade color gamut, intelligently adjustable color temperature and brightness, more suitable for long-term viewing. The cabinet is planned to be a 16:9 ratio according to the characteristics of the display screen of the command and control center, which can easily realize a 4:3 or 16:9 ratio screen.
Energy saving≥36%:
Using the industry's top low-power ultra-bright LED lights, energy saving ≥ 30%, with the core patented technology of industrial-grade high-power switching power supply, the overall energy saving ≥ 36%, energy saving and environmental protection.
Exquisite craftsmanship:
High-precision cabinet, flexible structure and exquisite craftsmanship, the flat splicing distance of the screen body is controlled at 0.1mm; the exquisite craftsmanship ensures that the screen body is flat and seamless, and the dot pitch is consistent. The picture is uniform and consistent, and the non-linear point-by-point correction technology is adopted to make the text clearer and the sense of hierarchy stronger;
Playback format:
Support mainstream format playback and support DVI HDMI 3G/HD/SD three-speed SDI high-definition display mode, suitable for indoor and outdoor places such as TV video programs, VCD or DVD, and live events.
Optional Packages:
Camera, cable, 3G, WIFI technology, cloud broadcast control, full network access and other mature optional supporting solutions. Power supply and system double backup guarantee
Technology optional supporting program.
Conventional product application areas:
Auditoriums, conferences, banquets, front halls, exhibition presentations, transportation, studios, command and monitoring, shopping centers, hospitals, banks, enterprises and institutions, exhibition halls, stadiums, ticket halls, hotels, customs, shopping malls, stages, auto shows, Airports, transportation, parks, TV stations.
Rental screen application areas:
Auditorium, conference, banquet, front hall, exhibition presentation, traffic, studio, command and monitoring.
Pixel Pitch | 3.91mm | |||
LED Lamp | SMD1921 | |||
IC | ICN2153 | |||
Module Size | 250x250mm | |||
Module pixels | 64x64dots | |||
Cabinet Size(WxHxD)(mm) | 500x1000x88 mm | |||
Module Quantity(pcs) | 8 | |||
Cabinet resolution WxH | 128x256dots | |||
Cabinet Material | Aluminum die casting | |||
Cabinet Weight (kg) | 14 | |||
Average Power/sqm (watts) | 200 | |||
Max Power/sqm(watts) | 650 | |||
Brightness | 4500-5000cd/㎡ | |||
Viewing Angle | H:160°, V:120° | |||
Best Viewing Distance | 3.91-200 meters | |||
Brightness Control | 256 level | |||
Gray scale | 16 bit | |||
Refresh frequency | 3840hertz | |||
Driving mode | 1/16 scan | |||
Input power frequency | 50 or 60 Hertz | |||
Input Voltage | 110 ~ 240 Volt,60Hz | |||
Blind spot rate | <1/10000 | |||
Lifetime at 50% brightness | 100000 hours | |||
Ingress Protection | IP65 | |||
Operating temperature | ﹣20 ~﹢60 ℃ | |||
Operating humidity | 10% ~ 90% | |||
Control distance | CAT5 cable:<100 m; Single mode fiber:<10 km | |||
Signal input format | HDMI,DVI,SDI,VGA etc. | |||
Operating system | Windows (2000/XP/Vista/7/8/10) |
