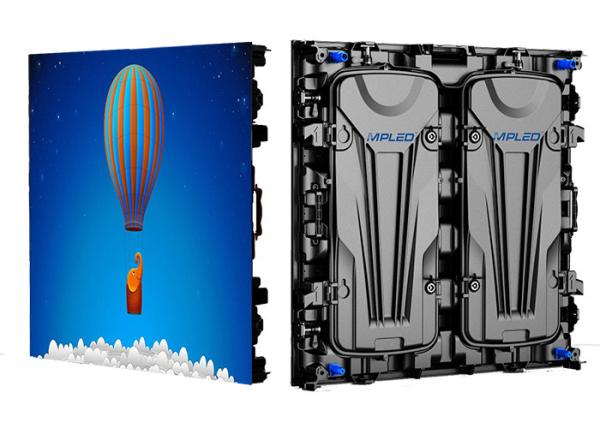

the naked-eye 3d outdoor display screen Ultra wide viewing angle
Product presentation
1.One screen,virous pixel pitch options.Just replace LED modules to update led screen with higher reolution one after many years.
2. Anti-ultraviolet, anti-deformation module kit to ensure that the screen body is flat and not deformed
3. There are quick locks on the top and bottom and left and right sides of the box. Installation is faster. Better flatness and consistency.
4. The module, power supply and control card can also be removed directly from the front without leaving a maintenance channel
5. To meet all kinds of market demand., Colorlight 960mm Magnesium Alloy LED display offers 5 kind of pixel pitches for outdoor installation and 5 The unique triple brim design can effectively block direct light while protecting the screen, and at the same time prevent the reflection of strong light on the LED screen. This design further enhances the contrast on the conventional basis, giving the picture quality a sense of hierarchy.
Pixel Pitch | 6.6mm | |||
LED Lamp | SMD3535 | |||
LED configuration | SMD 3 in 1 | |||
Module Size | 320mm x 160mm | |||
Module pixels | 48x24dots | |||
Cabinet Size(WxHxD)(mm) | 960x960x108mm | |||
Module Quantity(pcs) | 18 | |||
Pixel Density | 144x144dots | |||
Cabinet pixels | 20736 dots | |||
Cabinet Weight (kg) | 28 | |||
Average Power/sqm (watts) | 200 | |||
Max Power/sqm(watts) | 600 | |||
Brightness Control | 256 level | |||
Gray scale | 14 bit | |||
Refresh frequency | 1920hertz | |||
Driving mode | 1/6 scan | |||
Input power frequency | 50 or 60 Hertz | |||
Input Voltage | 110 ~ 240 Volt,60Hz | |||
Blind spot rate | <1/10000 | |||
Lifetime at 50% brightness | 100000 hours | |||
Ingress Protection | IP65 | |||
Operating temperature | ﹣20 ~﹢60 ℃ | |||
Operating humidity | 10% ~ 90% | |||
Control distance | CAT5 cable:<100 m; Single mode fiber:<10 km | |||
Signal input format | HDMI,DVI,SDI,VGA etc. | |||
Operating system | Windows (2000/XP/Vista/7/8/10) |
MPLED---Your reliable LED Display partner. Trust brand,Trust MPLED
1. 15+ years R&D experience team support
2. 8years manufacturer experience
3.10 international professional engineer support
4. 8line production line
5. 300+ skilled work
6. CE,ROSH,FCC,UL,EMC,etc international certification
7. ISO9001,AAA certification
8. Full building for workshop More details please contact us,we will satisfied all your needs of LED Display
FAQ
Q1: Where is your nearst port?
A : Our nearst port is shenzhen port.
Q2: How about your warranty?
A:We provide 2 years' warranty.
Q3: What kind of packaging do you provide?
A: We provide flight case, wooden case and carton.
Q4: How can I select your product?
