Waterproof P8 Giant Outdoor LED Screens High Brightness Single Pillar Type
Waterproof P8 Giant Outdoor LED Screens High Brightness Single Pillar Type
Waterproof P8 Giant Outdoor LED Screens High Brightness Single Pillar Type
Waterproof P8 Giant Outdoor LED Screens High Brightness Single Pillar Type
Specifications
Brand Name :
MPLED
Model Number :
P8
Certification :
CE/ROHS/FCC/ISO/UL
Place of Origin :
China
MOQ :
1
Price :
USD+636-763+pcs
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000sqm
Delivery Time :
7-10 working days after receive your payment
Packaging Details :
flight case/ wooden case/ carton/ it is up to you
Product name :
led signage
Product :
led signage boards
name :
p10 led panel
the name or description of a commodity :
p10 led panels
quality guarantee :
2 years
Description

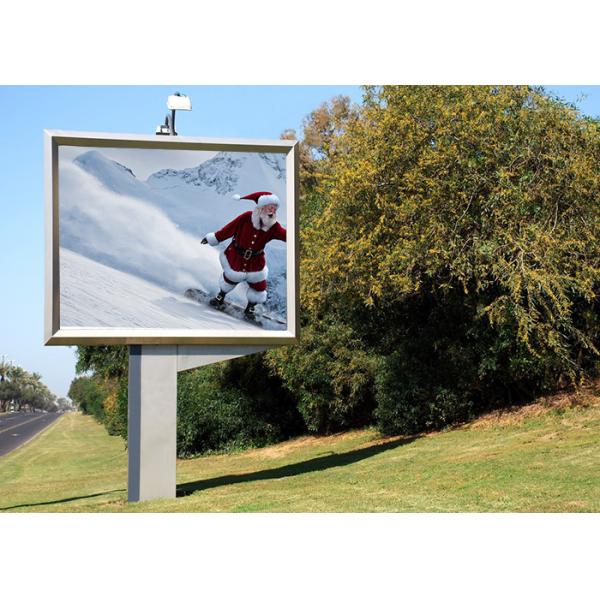

waterproof high brightness single pillar type P8 giant outdoor led screens

Product description

1. With a unified cabinet size and structure to offer more choice of LED display ranging from Pixel pitch of 2.5mm, P3.07mm, P4mm, P5mm, P6.67mm, P8mm P10mm, which of those has the same screw hole and panel size of 320*160mm. Standard structure design to ensure replacing LED screen module is easy and convenient, for example, changing from P5mm LED module to P10mm LED module, or changing from P8mm LED display to P4mm LED display. The same LED display cabinet, more different pixels to choose.

2. Latest SMD LED techology to make Magnesium Alloy 960mm Series LED video wall has a Impressive visual experience with high refresh rate, high contrast and high grey level..

3. Magnesium Alloy 960mm Series LED scren is multi-functional. you can use fixed installation, rental installation and perimeter installation. standard cabinet structure is for Fixed installation LED display usage, while adding flying bar, you can use it as Rental LED display, while adding soft moudle mask, rubber cushion and back bracket, you can use it as sports perimeter LED display.

4. Fanless design prevents dust and water vapor from being brought into the cabinet

5. The most advanced automated production equipment and professional team, selection of first-class raw materials, strict raw materials and process control

6. High Brightness,High Gray Scale,High Contrast Ratio,High Refresh Rate,Wide color gamut,High level driving IC

Pixel Pitch 8mm
LED Lamp SMD3535
LED configuration SMD 3 in 1
Module Size 320mm x 160mm
Module pixels 40x20dots
Cabinet Size(WxHxD)(mm) 960x960x101mm
Module Quantity(pcs) 18
Pixel Density 120x120dots
Cabinet pixels 14400 dots
Cabinet Material Magnesium alloy
Cabinet Weight (kg) 29
Average Power/sqm (watts) 240
Max Power/sqm(watts) 800
Brightness 6500cd/㎡
Viewing Angle H:160°, V:120°
Best Viewing Distance 8-100 meters
Brightness Control 256 level
Gray scale 14 bit
Refresh frequency 1920hertz
Driving mode 1/5 scan
Input power frequency 50 or 60 Hertz
Input Voltage 110 ～ 240 Volt,60Hz
Blind spot rate ＜1/10000
Lifetime at 50% brightness 100000 hours
Ingress Protection IP65
Operating temperature ﹣20 ～﹢60 ℃
Operating humidity 10％ ～ 90％
Control distance CAT5 cable:＜100 m; Single mode fiber:＜10 km
Signal input format HDMI,DVI,SDI,VGA etc.

Waterproof P8 Giant Outdoor LED Screens High Brightness Single Pillar Type
