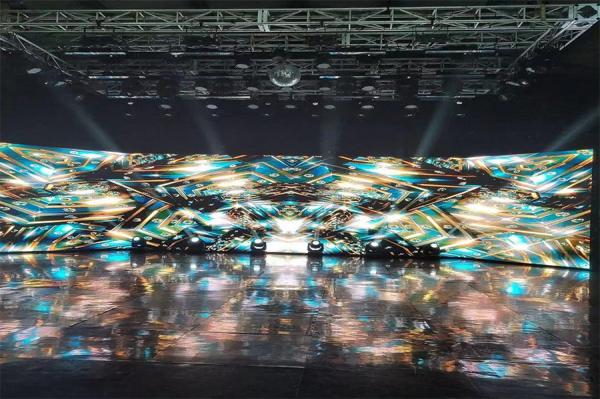

With Processor Automatically Adjust Brightness P2.97 P3.91 Rental Indoor Led Display
Product presentation
Silent power supply, no noise, low power consumption
Select high contrast mask, good display effect;
Carefully choose each lamp, carefully deploy each parameter, so that the whole screen operation is safe and stable;
Before and after the module can be easily installed and disassembled, more convenient maintenance
There are four handles on the top and bottom of the screen, which make it more convenient to disassemble, install and carry the screen
Die-cast rear cover, heat dissipation and waterproof performance is better
New fast lock, better damping, faster installation
Update the module only need to loosen four screws, no need to open the back cover of the box, more convenient maintenance
Ergonomic design handle, feel good, easy to lift and put
New edge lock, safe and fast
Safety buckle design, safe and secure
Pixel Pitch | 3.91mm | |||
LED Lamp | SMD1921 | |||
IC | ICN2153 | |||
Module Size | 250x250mm | |||
Module pixels | 64x64dots | |||
Cabinet Size(WxHxD)(mm) | 500x1000x88 mm | |||
Module Quantity(pcs) | 8 | |||
Cabinet resolution WxH | 128x256dots | |||
Cabinet Material | Aluminum die casting | |||
Cabinet Weight (kg) | 14 | |||
Average Power/sqm (watts) | 200 | |||
Max Power/sqm(watts) | 650 | |||
Brightness | 4500-5000cd/㎡ | |||
Viewing Angle | H:160°, V:120° | |||
Best Viewing Distance | 3.91-200 meters | |||
Brightness Control | 256 level | |||
Gray scale | 16 bit | |||
Refresh frequency | 3840hertz | |||
Driving mode | 1/16 scan | |||
Input power frequency | 50 or 60 Hertz | |||
Input Voltage | 110 ~ 240 Volt,60Hz | |||
Blind spot rate | <1/10000 | |||
Lifetime at 50% brightness | 100000 hours | |||
Ingress Protection | IP65 | |||
Operating temperature | ﹣20 ~﹢60 ℃ | |||
Operating humidity | 10% ~ 90% | |||
Control distance | CAT5 cable:<100 m; Single mode fiber:<10 km | |||
Signal input format | HDMI,DVI,SDI,VGA etc. | |||
Operating system | Windows (2000/XP/Vista/7/8/10) |
FAQ
Q1: Is the product customizable?
A: Yes,we can customize the product according to customers' needs, you just need to provide the requirements details.
Q2: Do you test all your goods before delivery?
A: Yes,we have 100% test before delivery.
Q3:What is your terms delivery?
A: EXW,FOB, CFR, CIF, DDP, DDU...
Q4: How about your warranty?
A: Different product offer different time frame warranty, but all product here we offer 2year at least warranty.
Q5: What kind of packaging you offer?
A: During the packaging process, preventive measures will be taken by us to assure that the goods are in a good condition during storage and delivery.
Q6: What project did you have done in overseas?
A: 2017, MPLED P6 outdoor led display assist for Senator Election of South Korea
2018, MPLED P10 outdoor led display light up in The World Cup in Russia
2019, MPLED P2.97 stage led display stand the stage for Senator Election of Indonesia
2020, MPLED P1.86 led display(more than 150sq.m) install in Singapore Casino
2020, MPLED P3 led display covered the SAINT PHILA CONVENTION HALL
2021, MPLED P8 outdoor customized wave led display light up in Kuwait landmark
