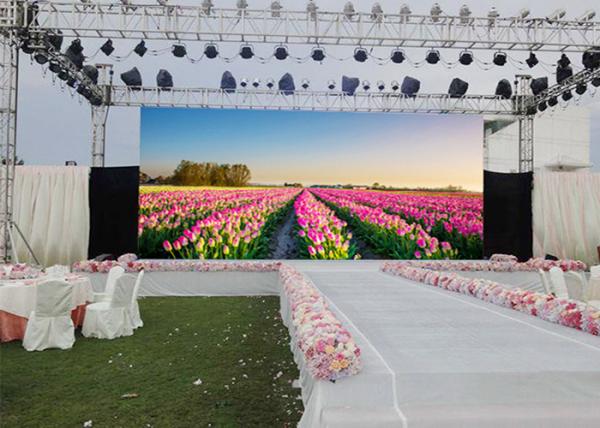

Outdoor Stage Rental LED Display Screen P3 P4 Die Cast 500x1000mm Smd2121
P3 P4 Die Cast 500x1000mm Smd2121 Kinglight Outdoor Stage Rental Display Screen
Product presentation
1. Die casting Aluminum panels is stronger structure, each panel is 8kg,very light weight to carry and install .Even after long time, the LED screen won't change shape under pressure.
2. The PCB board thickness of is 1.6mm.Compared with the ordinary PCB board, the circuit layout is more reasonable, with better heat dissipation effect, and more stable working condition.
3. Cable-less connection inside the cabinet, modular design, tidy and clean.
4. Four quick lock devices enhance the stability and flatness of the screen. The four locks of the power box can be opened without tools and can be
quickly maintained.
5. Never black screen even current backup for power supply, when any power supply is not working other power supplies will provide power to keep the screen working.
6. The curve version (can be adjusted between -5° and +10°) and 90° splicing version are provided to help customers easily realize their unlimited creativity.
Pixel Pitch | 3.91mm | |||
LED Lamp | SMD1921 | |||
IC | ICN2153 | |||
Module Size | 250x250mm | |||
Module pixels | 64x64dots | |||
Cabinet Size(WxHxD)(mm) | 500x1000x88 mm | |||
Module Quantity(pcs) | 8 | |||
Cabinet resolution WxH | 128x256dots | |||
Cabinet Material | Aluminum die casting | |||
Cabinet Weight (kg) | 14 | |||
Average Power/sqm (watts) | 200 | |||
Max Power/sqm(watts) | 650 | |||
Brightness | 4500-5000cd/㎡ | |||
Viewing Angle | H:160°, V:120° | |||
Best Viewing Distance | 3.91-200 meters | |||
Brightness Control | 256 level | |||
Gray scale | 16 bit | |||
Refresh frequency | 3840hertz | |||
Driving mode | 1/16 scan | |||
Input power frequency | 50 or 60 Hertz | |||
Input Voltage | 110 ~ 240 Volt,60Hz | |||
Blind spot rate | <1/10000 | |||
Lifetime at 50% brightness | 100000 hours | |||
Ingress Protection | IP65 | |||
Operating temperature | ﹣20 ~﹢60 ℃ | |||
Operating humidity | 10% ~ 90% | |||
Control distance | CAT5 cable:<100 m; Single mode fiber:<10 km | |||
Signal input format | HDMI,DVI,SDI,VGA etc. | |||
Operating system | Windows (2000/XP/Vista/7/8/10) |
FAQ
Q1: Is the product customizable?
A: Yes,we can customize the product according to customers' needs, you just need to provide the requirements details.
Q2: Do you test all your goods before delivery?
A: Yes,we have 100% test before delivery.
Q3:What is your terms delivery?
A: EXW,FOB, CFR, CIF, DDP, DDU...
Q4: How about your warranty?
A: Different product offer different time frame warranty, but all product here we offer 2year at least warranty.
Q5: What kind of packaging you offer?
A: During the packaging process, preventive measures will be taken by us to assure that the goods are in a good condition during storage and delivery.
