Football Stadium Sport Perimeter LED Display 320*160mm Waterproof IP65
Low Power Consumption Waterproof IP65 Outdoor P10 Stadium Screen
Product description

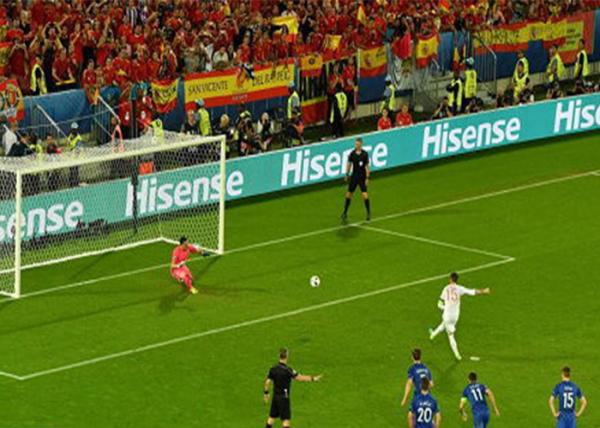

1. Large-scale stadiums, sports centers, basketball courts (halls), football fields and other occasions.
2. The outdoor soft-mask HD stadium LED display has a series of advantages such as high brightness, high definition, wide viewing angle, and long-distance viewing distance, with strong visual impact. It is used to scroll video advertisements and bring a visual experience to the audience.
3. High refresh rate to ensure that the LED display does not flicker when the camera or video camera is recording video.
4. High brightness and high contrast, to ensure that the display screen has a good performance in any weather environment.
5. The point-by-point correction technology ensures the uniformity of the color brightness of the display screen.
6. The outdoor products are fully waterproof and can be used normally even in the rain.
Pixel Pitch | 10mm | |||
LED Lamp | SMD3535 | |||
IC | ICN2037 | |||
Module Size | 320x160mm | |||
Module pixels | 32x16dots | |||
Cabinet Size(WxHxD)(mm) | 960x960x108 mm | |||
Module Quantity(pcs) | 18 | |||
Cabinet resolution WxH | 96x96dots | |||
Cabinet Material | Aluminum die casting | |||
Cabinet Weight (kg) | 29 | |||
Average Power/sqm (watts) | 240 | |||
Max Power/sqm(watts) | 800 | |||
Brightness | 7000cd/㎡ | |||
Viewing Angle | H:160°, V:120° | |||
Best Viewing Distance | 10-200 meters | |||
Brightness Control | 256 level | |||
Gray scale | 16 bit | |||
Refresh frequency | 3840hertz | |||
Driving mode | 1/2 scan | |||
Input power frequency | 50 or 60 Hertz | |||
Input Voltage | 110 ~ 240 Volt,60Hz | |||
Blind spot rate | <1/10000 | |||
Lifetime at 50% brightness | 100000 hours | |||
Ingress Protection | IP65 | |||
Operating temperature | ﹣20 ~﹢60 ℃ | |||
Operating humidity | 10% ~ 90% | |||
Control distance | CAT5 cable:<100 m; Single mode fiber:<10 km | |||
Signal input format | HDMI,DVI,SDI,VGA etc. | |||
Operating system | Windows (2000/XP/Vista/7/8/10) |
FAQ
Q1: What’s the function?
A1: Support various formats,like VGA,Video,AVI,DAT,etc.
Q2: LED display modules are generally expressed in PX,such as P2 P3 P4...P8 P10,what does this mean?
A2: P3 P4...P8 P10 means that the pixel pitch is 3mm 4mm...10mm,which determines resolution of a display.Pixel pitch smaller,led resolution higher.
Q3: What pixel pitch should I choose on my display?
A3: It’s mainly depends on the viewing distance,the size of the display screen,the desired effect the application scenario and the customer budget.
Q4: How to in stall?
A4: Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram,free remote debugging.We can also send our engineers to the site to guide the installation if needed.
Q5: What about your quality?
A5:The quality of our display is excellent.We use the materials of high quality suppliers.strictly control the production process,and pass the multiple quality inspection to ensure that every product is qualified.
Q6: How about the warranty?
A6: Two years warranty
Q7: What kind of display we provide?
A7: We have indoor/outdoor/rental/Advertising/transparent and poster LED display for your choice.
