Smd1515 Hd Rental Led Display P1.9 P2.6mm 500mm X 500mm Cabinet
Smd1515 Hd Rental Led Display P1.9 P2.6mm 500mm X 500mm Cabinet
Smd1515 Hd Rental Led Display P1.9 P2.6mm 500mm X 500mm Cabinet
Smd1515 Hd Rental Led Display P1.9 P2.6mm 500mm X 500mm Cabinet
Smd1515 Hd Rental Led Display P1.9 P2.6mm 500mm X 500mm Cabinet
Smd1515 Hd Rental Led Display P1.9 P2.6mm 500mm X 500mm Cabinet
Smd1515 Hd Rental Led Display P1.9 P2.6mm 500mm X 500mm Cabinet
Smd1515 Hd Rental Led Display P1.9 P2.6mm 500mm X 500mm Cabinet
Specifications
Brand Name :
AlisenLED/OEM/ODM
Model Number :
ATEC 1.3,1.5,1.95,2.6mm
Certification :
CE/FCC/CB/IECEE
Place of Origin :
China
MOQ :
Negotionable
Price :
negotionable
Payment Terms :
T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000SQM/Month
Delivery Time :
25-30days
Packaging Details :
flightcase
LAMP :
SMD1515
Pixel Pitch :
1.3mm,1.5mm,1.9mm,2.6mm
Cabinet Size :
500mm x 500mm
Brightness :
1000 Nits
Ave. Power Consumption :
<200 W
Gray Scale :
22 Bit
Water Proof :
IP40 Indoor
View Angle :
170 ° | 170 °
Concave/convex :
30 degree
column :
12cabinets can join the column(round)
Curved :
ARC Seamlessly
Warranty :
3 Year
Description

gob curved arc rental flexible seamlessly led display screen indoor creative led auto show,exibition

Product Description

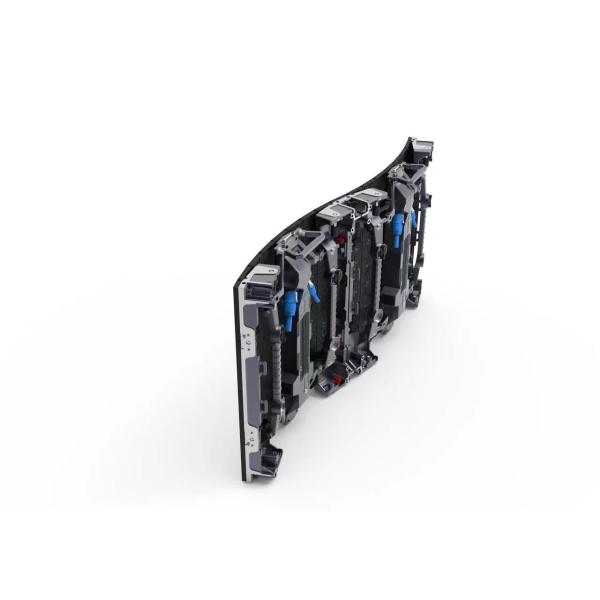

Smd1515 Hd Rental Led Display P1.9 P2.6mm 500mm X 500mm Cabinet

  • Indoor LED Rental display-GOB1.3,GOB1.9, GOB2.6, GOB2.9
  • Adop revolutionary flexible GOB technology
  • The inner arc and outer arc can reach ± 30 radians.
  • Perfect Mix And Usage
  • Can be produced same specification with vertical and floor led display

Smd1515 Hd Rental Led Display P1.9 P2.6mm 500mm X 500mm Cabinet

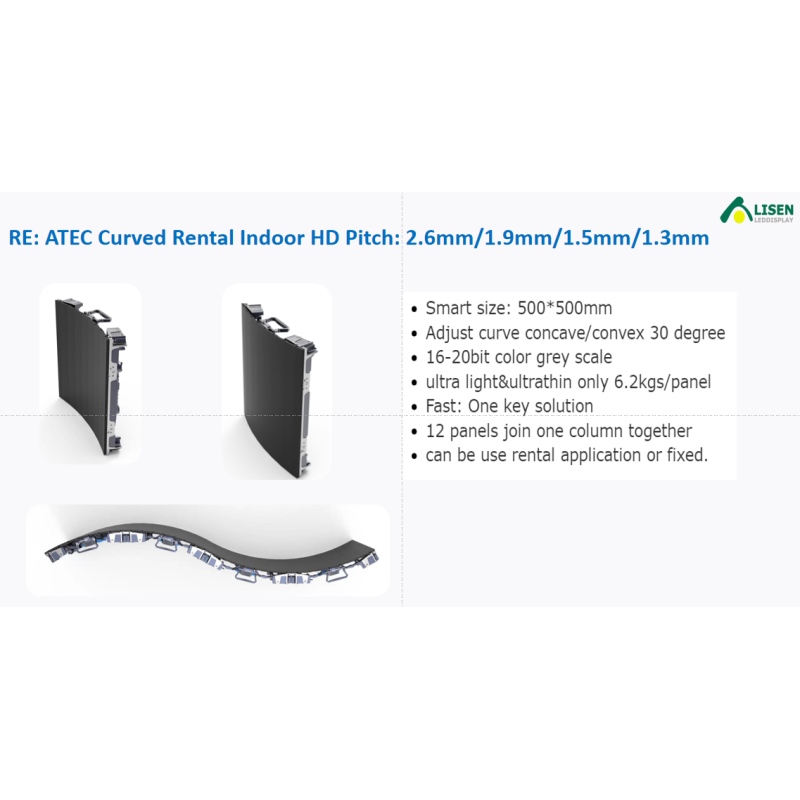

Product Features:

  • Cabinet size:500X500mm
  • Adjust curve concave/convex:30 degree
  • 16-20bit color grey scale
  • ultra light&ultrathin only 6.2kgs/panel
  • Fast: One key solution
  • 12panels join one column together
  • can be use rental ,concert ,AUTO Show. TV Station,XR Stage

Smd1515 Hd Rental Led Display P1.9 P2.6mm 500mm X 500mm CabinetSmd1515 Hd Rental Led Display P1.9 P2.6mm 500mm X 500mm Cabinet

Specification

Pixel Pitch 1.3 mm 1.56 mm 1.95 mm 2.6 mm
LED Configuration GOB GOB GOB GOB
Module Resolution( W x H ) 192x192 160x160 128x128 96x96
Module Dimension ( W x H ) 250x250 mm 250x250 mm 250x250 mm 250x250 mm
Panel Resolution ( W x H ) 384x384 320x320 256x256 192x192
Panel Dimensions 500x500x74mm (Arc Screen) 500x500x74mm (Arc Screen) 500x500x74mm (Arc Screen) 500x500x74mm (Arc Screen)
Panel Weight (Kg) 6.2 Kg (Arc Screen) 6.2 Kg (Arc Screen) 6.2 Kg (Arc Screen) 6.2 Kg (Arc Screen)
Single Pixel Calibration YES YES YES YES
Brightness (㎡) 1000 Nits ( 6500 K Color Temperature ) 1000 Nits ( 6500 K Color Temperature ) 1000 Nits ( 6500 K Color Temperature ) 1000 Nits ( 6500 K Color Temperature )
Color Temp. 3000 ~ 10000 K 3000 ~ 10000 K 3000 ~ 10000 K 3000 ~ 10000 K
Contrast

≥ 7000 : 1

 ≥ 7000 : 1 ≥ 7000 : 1 ≥ 7000 : 1
Viewing Angle(50% brightness) 170 ° Horizontal, 170° Vertica 170 ° Horizontal, 170° Vertica 170 ° Horizontal, 170° Vertica 170 ° Horizontal, 170° Vertica

Power Consumption(Avg/㎡)

 ≤ 200 W ≤ 200 W ≤ 200 W ≤ 200 W

Refresh Rate

 ≥ 3840 Hz ≥ 3840 Hz ≥ 3840 Hz ≥ 3840 Hz
Frame Rate

50/60/100/120/240 Hz

 50/60/100/120/240 Hz 50/60/100/120/240 Hz 50/60/100/120/240 Hz
Gray Scale 22 Bit 22 Bit 22 Bit 22 Bit

Storage Temp/Humidity

 -20℃~60℃/10~85% -20℃~60℃/10~85% -20℃~60℃/10~85% -20℃~60℃/10~85%

IP Grade

 IP40 Indoor IP40 Indoor IP40 Indoor IP40 Indoor

Certifications

 CE, ETL, FCC CE, ETL, FCC CE, ETL, FCC CE, ETL, FCC

Operation Voltage )

 AC100 - 240 V (50 - 60 Hz AC100 - 240 V (50 - 60 Hz AC100 - 240 V (50 - 60 Hz AC100 - 240 V (50 - 60 Hz

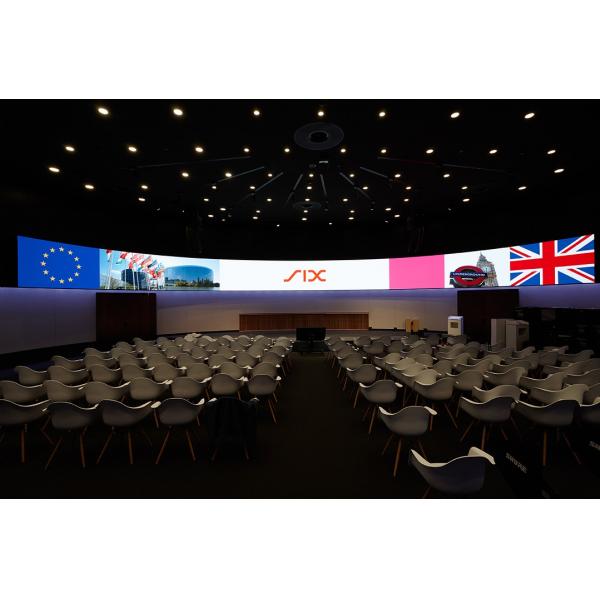

Application

  • Trade Shows and Exhibitions

  • Sports Events

  • Stage Performance

  • Corporate Events

  • Retail Environments

Smd1515 Hd Rental Led Display P1.9 P2.6mm 500mm X 500mm CabinetSmd1515 Hd Rental Led Display P1.9 P2.6mm 500mm X 500mm CabinetSmd1515 Hd Rental Led Display P1.9 P2.6mm 500mm X 500mm Cabinet

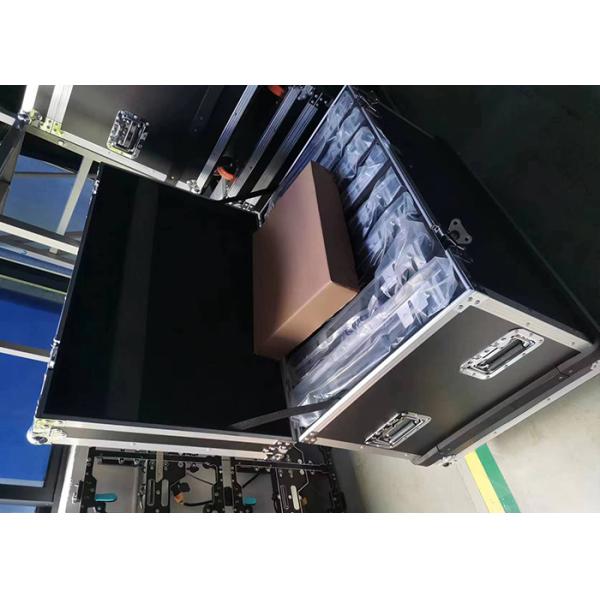

Package and delivery

Smd1515 Hd Rental Led Display P1.9 P2.6mm 500mm X 500mm Cabinet

Smd1515 Hd Rental Led Display P1.9 P2.6mm 500mm X 500mm Cabinet

FAQ

Q1: What is the control system? How is it?
A: We use Nova Taurus Series asynchronous control system. Support cluster play and management. Support APP/Phone/ WIFI/ Ipad/ Laptop/ PC/ Cloud control. It’s very easy and convenient to control.

Q2: Can I have a sample order for led screen?
A: Yes, we welcome sample order to test and check quality. Mixed samples areacceptable.

Q3:Is it OK to print my logo on product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q4: What is your best service?
1: One to one sales engineer to customer responsibility system;
2. Know your project and provide the best solution for it;
3. Track your order and let you know each step and detail of it;
4. Teach you how to install and use the screen;
5. Care the subsequent use of your screen and ensure your after - sales service be well.

Q5. How about your delivery time?
A: Generally, it will take 25-35 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.

Q6:How about your Warranty Term?
A: 3-year warranty. Structure design, installation problem, system problem, how to use the screen…don’t worry, we have professional after-sale team to solve your any questions after you placed an order. And your exclusive sales engineer will also help you get over any problems.
