High Lumen Small LED Tube Light - 40 - 50°C Working 50000Hrs Lifespan
High Lumen Small LED Tube Light - 40 - 50°C Working 50000Hrs Lifespan
High Lumen Small LED Tube Light - 40 - 50°C Working 50000Hrs Lifespan
High Lumen Small LED Tube Light - 40 - 50°C Working 50000Hrs Lifespan
High Lumen Small LED Tube Light - 40 - 50°C Working 50000Hrs Lifespan
High Lumen Small LED Tube Light - 40 - 50°C Working 50000Hrs Lifespan
High Lumen Small LED Tube Light - 40 - 50°C Working 50000Hrs Lifespan
High Lumen Small LED Tube Light - 40 - 50°C Working 50000Hrs Lifespan
High Lumen Small LED Tube Light - 40 - 50°C Working 50000Hrs Lifespan
High Lumen Small LED Tube Light - 40 - 50°C Working 50000Hrs Lifespan
Specifications
Brand Name :
JINLIN
Model Number :
JL-T8SMD2835-10w
Certification :
CE,RoHS
Place of Origin :
Shenzhen China
MOQ :
1pcs
Payment Terms :
T/T
Supply Ability :
10,000pcs/month
Delivery Time :
sample order 3-5days
Packaging Details :
25pcs/carton
Wattage :
10W
Light source :
LED
Input voltage :
AC85-265V 50/60Hz
Light efficiency :
180lm/w
Total Lumen :
1800lm±10%
Material :
Aluminum+PC
LED Type :
SMD2835
Color temperature :
2500-6500k
CRI :
>80
Demension :
580*26mm
PF :
>0.9
Cover :
milky / clear
Warranty :
3years
Application :
RESIDENTION/WAREHOUSE/OFFICE
Other name :
T8 Tube, 180lm/w led tube, LED Tube, t8 led tube
Certificate :
CE, RoHS
Description

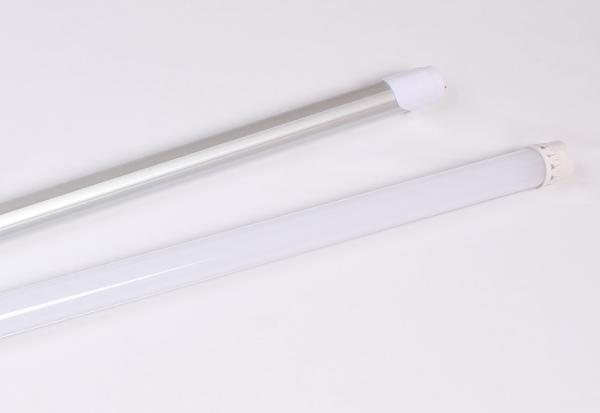

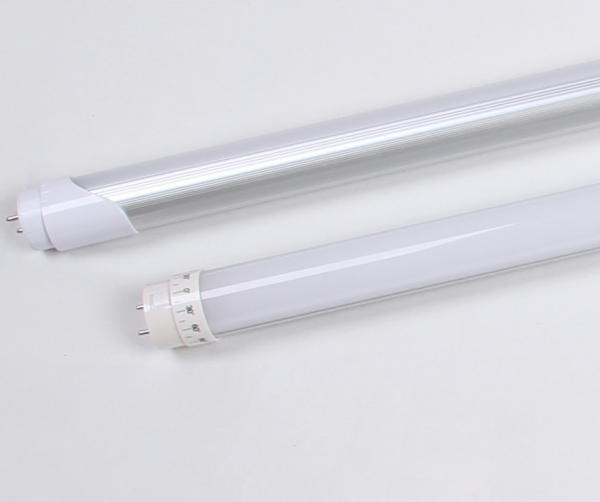

180lm/w High lumen led tube 10W T8 led tube 1800lm 580mm t8 tube light



Product Details:

Model No. JL-T8SMD2835-10w JL-T8SMD2835-12w JL-T8SMD2835-14w JL-T8SMD2835-21w JL-T8SMD2835-42w
Input voltage

AC85-265V

50/60Hz

AC85-265V

50/60Hz

AC85-265V

50/60Hz

AC85-265V

50/60Hz

AC85-265V

50/60Hz
Power 10W 12W 14W 21W 42W
LED Type SMD2835 SMD2835 SMD2835 SMD2835 SMD2835
Efficiency 180lm/w 180lm/w 180lm/w 180lm/w 180lm/w
Total Lumen 1800lm±10% 2160lm±10% 2520lm±10% 3780lm±10% 7560lm±10%
CCT 2500~6500K 2500~6500K 2500~6500K 2500~6500K 2500~6500K
CRI Ra >80 Ra >80 Ra >80 Ra >80 Ra >80
PF >0.9 >0.9 >0.9 >0.9 >0.9
Size 580*26mm 630*26mm 830*26mm 1198*26mm 2367*26mm
THD <20% <20% <20% <20% <20%
Beam angle 120° 120° 120° 120° 120°
Working temperature -40°C ~ +50°C -40°C ~ +50°C -40°C ~ +50°C -40°C ~ +50°C -40°C ~ +50°C
Cover color milky / clear milky / clear milky / clear milky / clear milky / clear
Material Aluminum+PC Aluminum+PC Aluminum+PC Aluminum+PC Aluminum+PC
Lifespan 50,000hrs 50,000hrs 50,000hrs 50,000hrs 50,000hrs
Warranty 3 years 3 years 3 years 3 years 3 years
Certificate CE,RoHS CE,RoHS CE,RoHS CE,RoHS CE,RoHS

High Lumen Small LED Tube Light - 40 - 50°C Working 50000Hrs Lifespan

High Lumen Small LED Tube Light - 40 - 50°C Working 50000Hrs Lifespan

High Lumen Small LED Tube Light - 40 - 50°C Working 50000Hrs Lifespan

High Lumen Small LED Tube Light - 40 - 50°C Working 50000Hrs Lifespan


Product Features:

  1. 180lm/w high lumen efficiency
  2. Aluminum housing for excellent heat dissipation
  3. 300mm/500mm/600mm/900mm/1200mm/2400mm full range size for option
  4. Energy saving: up to 75% energy consumption less than the traditional fluorescent tube.
  5. Long lifespan 50,000hrs
  6. Fast delivery time

High Lumen Small LED Tube Light - 40 - 50°C Working 50000Hrs Lifespan

High Lumen Small LED Tube Light - 40 - 50°C Working 50000Hrs Lifespan

High Lumen Small LED Tube Light - 40 - 50°C Working 50000Hrs Lifespan

Application:

The LED T8 Tube are widely used as lighting in hotels, shopping malls, metro stations, parking site and many other areas for residential or business lighting purpose.

High Lumen Small LED Tube Light - 40 - 50°C Working 50000Hrs Lifespan




Company Information

About us:

Shenzhen Jinlin Semiconductor Lighting Limited founded in 2009, located in Shenzhen where is the base of LED lighting industry in China. a high-tech enterprise with Research, , Manufacture, Marketing and Service. We have an R&D department with excellent engineers who research and develop the LED light and LED driver power. We are one of the pioneer of indoor -lighting exploration , focus on improving LED indoor lighting technology. Leading the development trend of LED light . We are professional ,because of focusing the target, Our task is that create low-carbon and energy-saving LED lighting products, we'll be keep exploring, improving and perfecting, Specializing in LED Tube light, Bulb light, Corn light, Flood Light, UFO Highbay etc. Products are RoHS CE PSE FCC TUV UL approved. LED down light, LED bulb and LED tube have got some patents of appearance and new technology from nation.
High Lumen Small LED Tube Light - 40 - 50°C Working 50000Hrs Lifespan


FAQ

1.Payment
T/T,30% deposits before production, 70% balance to be paid before delivering

2.Shipment
By International Express (door to door):DHL,UPS,FedEx or TNT
By Air express to your nearest airport
By Sea

3.Lead time
sample order for 2-3 days, bulk order for 7-10 days.

4.Package
Standard export package, usually gift box in carton

6.Is it ok to print my logo on led tube light product?

Yes.Please inform us formally before our production and comfirm the design firstly based on our sample.
