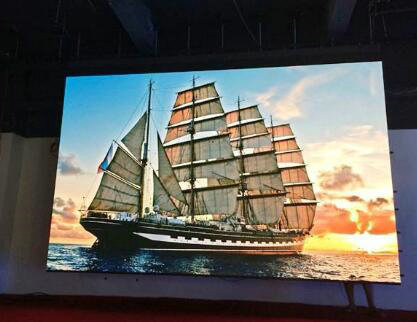

The Most Popular High Resolution Hd Full Color Small Pixel Pitch P3 Fixed Indoor Led
Product features:
1. High refresh rate and high gray scale to make the picture vivid which meets the demand of high visual quality of commercial usage.
2. Neat appearance,light weight,small size and safe 5V low voltage power supply system all make the module more attractive.
3. Fast installation and front maintenance design is available, make your LED display business more proffessional and easier.
4. Grand A row material for module frame and mask.
5. 4 layers PCB and copper plating thickness > 18mil.
6. Stainless steel screws when assembly.
RFQ:
Q: Do you have CE/ROHS certificate?
A: Yes, we have the certificate.
Q: What's the shiping method?
A: Our products could be shipped by sea, by air, and by express.
Q: Can I use my own forwarder to transport the products for me?
A: Yes, if you have your own forwarder, you can let your forwarder ship the products for you. But it is suggested that use our forwarder because we have long-term good relationship with them for good price and service.
Q: Do you have any MOQ limit for led light order?
A: NO MOQ, 1pc for sample checking is available.
Q: How to proceed an order for led Dispaly?
A: Firstly let us know your requirements or application. Secondly we quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly we arrange the production.
Q: Is it OK to print my logo on cabinet?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Product specification:
INDOOR SMALL PIXEL PITCH | |||||||
Item | Value | ||||||
Model No. | CDN-151 | CDN-161 | CDN-181 | CDN-191 | CDN-201 | CDN-251 | CDN-301 |
Pixel Pitch(mm) | 1.5625 | 1.667 | 1.875 | 1.923 | 2 | 2.5 | 3 |
Pixel Density(dots/sqm) | 409600 | 359856 | 284444 | 270422 | 250000 | 160000 | 111111 |
LED Type | SMD1010 | SMD2121 | |||||
Viewing Angle(Deg.) | H:120 V:120 | ||||||
Brightness(nits) | 800~1000 | 800~1200 | |||||
Refresh Rate(Hz) | 360~1920 | ||||||
Module Size(mm) | 200*100 | 120*120 | 200*100 | 128*128 | 160*160 | 192*192 | |
Cabinet Size Recommended (mm) | 400*300 | 480*480 | 400*300 | 512*512 | 480*480 | 576*576 | |
Cabinet Material | Die-casting aluminum / Magnalium | Steel with powder painted | |||||
Cabinet Weight | ≤35KG/SQM | ≈45KG/SQM | |||||
Power Consumption (Avg./Max. W/㎡) | 500/1250 | 600/1500 | 500/1250 | 320/800 | 310/780 | 270/680 | |
IP Grade | IP43 / IP31 | ||||||
Operating Temp/Humidity (℃/%RH) | -20℃~45℃10~90%RH | ||||||
Storage Temp/Humidity (℃/%RH) | -25℃~50℃ 10~90%RH | ||||||
Lifetime(hours) | ≥50000(Normal Temp) |
Why choose us?
1. Diversified products: Varieties of models for outdoor/indoor LED display screens, and customized cabinets available, meet all requirements and win more profits for customers.
2. Quality assurance: Quality control is taken both in product design and production. As the quantity of PCB and other components have been decreased and simplified. Our engineers can concern in a small quantity of defect to solve and it will be a substantial boost of the yield rate. 100% testing before packing make sure our quality before delivery.
3. Best raw materials: High quality, good stability and reliability.
4. Competitive price: Factory price which is competitive in the market.
5. Prompt &Professional service: Any inquires will be replied within 12 hours in working days and you’ll get helpful suggestions from us.
The products we offer:
Indoor fixed and rental: P1.667,P1.923,P2,P2.5,P3,P4,P5,P6,P3.91,P,4.81 P6.25,P7.62,P10
Outdoor fixed and rental: P3,P4,P5,P6,P3.91,P,4.81 P6.25,P8,P10,P12,P16,P20
Mobile truck led display, transparent glass window led display.creative led display (ball led display, dj led display) and other customerized led display products
Our Services
Pre-producing:
1. Get complete requirements of clients.
2. To do a thorough analysis.
3. Offer a most reasonable and scientific solution.
4. Customized design.
In producing:
1. Producing progress updating for clients.
2. Provide Installation drawing for clients.
After service:
1. 2 years free maintenance.
2. 7 days a week, 24 hours a day on-line technical support for any clients.
3. Free training for customers in factory.
4. Local Installation Guidance Service.
