Specifications
Brand Name :
CIRID
Model Number :
CDR-480
Certification :
CE, RoHS,UL
Place of Origin :
Shenzhen
MOQ :
1PCS
Price :
negotiable
Supply Ability :
1000SQM PER DAY
Delivery Time :
15 WORKING DAYS
Packaging Details :
Flight case
Pixel Density (dots/sqm) :
43266
LED Type :
SMD3535
Brightness :
4500
Refresh Rate :
3800
Module Size :
250*250
Cabinet Size (mm) :
500*500/500*1000
IP Grade :
IP65
Lifetime(hours) :
≥50000(Nomal Temp)
Description

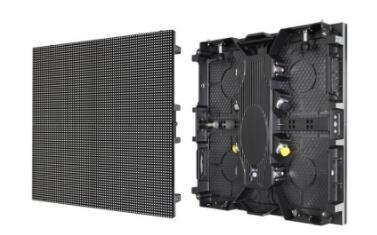

P4.81 Outdoor 500*500mm 500*100mm Cabinet Curve Rental Stage Led Display

Product features:

1. High bright 3in1 LED SMD lamps with best plastic package suite are not easy to be damaged and ensures the best viewing angle.
2. Fast installation and front maintenance design is available, make your LED display business more proffessional and easier.
3. Modular design, any cabinet could removed and replace when it is not working well.

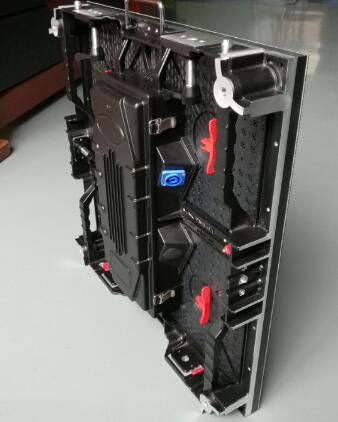

4. The die-casting aluminum panel employs modular design. Modules and power box can all be maintained conveniently from the front or rear according to requirements.
5. Panels of two different sizes can be assembled together, and more surprisingly the super compatible panels also support for mismatch splicing from all directions.

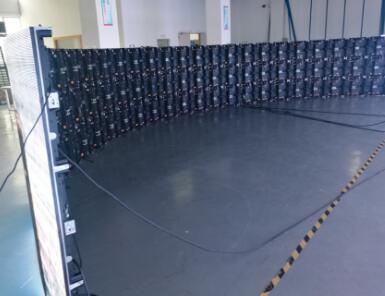

6. The led display can be assembled into concave and convex screens.

RFQ:

Q:Are you a factory or trading company?
A:We are a factory with 10+ years experience in led display industry. We can offer better price than trading Company.

Q: How to get the price list?
A: Sorry that we don't have price list because each project has difference requirements, and we quote according to your detailed requirements.

Q: Can I use my own forwarder to transport the products for me?
A: Yes, if you have your own forwarder, you can let your forwarder ship the products for you. But it is suggested that use our forwarder because we have long-term good relationship with them for good price and service.

Q: What is the payment method?
A: We support a variety of payment methods, such as T/T, western union, paypal, moneygram.

Q: What's the payment terms?
A: 70% deposit to start production, and 30% balance to be clear before delivery.

Q: Where the led display is used for?

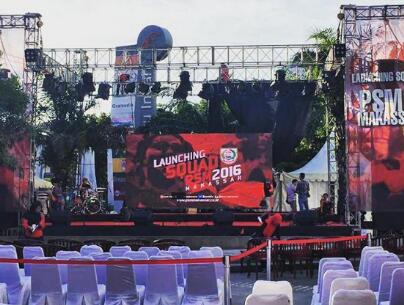

A: Indoor & outdoor use. Widely used for backdrop of staging event, rental business, liveshow, concert, etc.

Product specification:

OUTDOOR RENTAL
Item Value
Model NO. CDR-390 CDR-400 CDR-480 CDR-500 CDR-600 CDR-620 CDR-660 CDR-800 CDR-100 CDR-100D
Pixel Pitch 3.91 4 4.81 5 6 6.25 6.67 8 10 10
Pixel Density (dots/sqm) 65536 62500 43264 40000 27777 25600 22500 15625 10000 10000
LED Type SMD1921 SMD2727 SMD3535 DIP346
Viewing Angle H:120 V:120 H:120 V:60
Brightness (nits) 4500~6500 7000~8000
Refresh Rate (Hz) 1920~3000
Module Size(mm) 250*250 256*128 250*250 320*160 192*192 250*250 320*160 320*160
Cabinet Size (mm) 500*500/500*1000 512*512 500*500/500*1000 640*640 576*576 500*500/500*1000 640*640 640*640
Cabinet Material Die-casting aluminum / Magnalium
Cabinet Weight ≤ 35KG/SQM
Power Consumption (Avg./Max. W/㎡) 250/620 360/900 230/560 400/980 240/600 260/680 250/620 310/780 400/980 300/760
IP Grade IP65/54
Operating Temp/Humidity -20℃~45℃ 10~90%RH
Storage Temp/Humidity -25℃~50℃ 10~90%RH
Lifetime(hours) ≥50000(Nomal Temp)

Our Advantage
1.Goods be examined before delivery,Professional QC team
2.Variety of customized products to satisfy different requests.
3.Highest cost-effective price.
4.With pure golden wire connection in LED.
5.The price depends on the quantity. We can provide you with the best competitive price in the market with the same or even better quality.
6.All inquiry will be answered within 24 hours by a well-trained and experienced staffs.
7.Top Quality & Reasonable Price & Responsible After Service
8.All private information will be well protected.

The products we offer

Indoor fixed and rental: P1.667,P1.923,P2,P2.5,P3,P4,P5,P6,P3.91,P,4.81 P6.25,P7.62,P10

Outdoor fixed and rental: P3,P4,P5,P6,P3.91,P,4.81 P6.25,P8,P10,P12,P16,P20

Mobile truck led display, transparent glass window led display.creative led display (ball led display, dj led display) and other customerized led display products

Our Services

Pre-producing:
1. Get complete requirements of clients.
2. To do a thorough analysis.
3. Offer a most reasonable and scientific solution.
4. Customized design.

In producing:
1. Producing progress updating for clients.
2. Provide Installation drawing for clients.

After service:
1. 2 years free maintenance.
2. 7 days a week, 24 hours a day on-line technical support for any clients.
3. Free training for customers in factory.
4. Local Installation Guidance Service.

P4.81 Stage Outdoor Rental LED Display 500*500mm 500*100mm Cabinet Curved LED Screen
