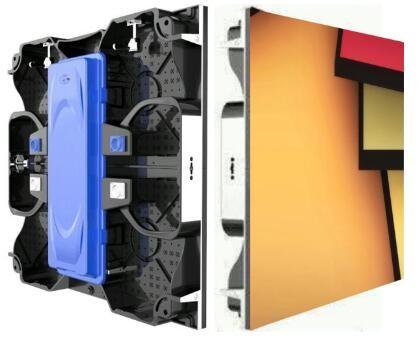

Light Weight Rental Led Panel P3.91 500x1000mm Indoor Die Cast Aluminum
Product features:
1. Dual back-up: both power supply and system dual back-up are optional, reliable performance.
2. Modular design, any cabinet could removed and replace when it is not working well.
3. Special heat-disspating channel design to ensure heat radiate rapidly and effectively.
4. Special walldrape design, no need buy more structure for installation.
5. Fast installation and front maintenance design is available, make your LED display business more proffessional and easier.
6. The main structure is made of aluminum alloy material, the product more light and strong, and excellent heat conduction characteristics.
RFQ:
Q: Outdoor screen can't use surface mount LED?
A: We have outdoor SMD display now. We solve the problem of the brightness and water proof. We use SMD3535 led chip, filling the glue on the surface with IP65 cabinet.
Q:Are you a factory or trading company?
A:We are a factory with 10+ years experience in led display industry. We can offer better price than trading Company.
Q: When is the delivery time?
A: we will accomplish manufacturing within 10-30 days after receiving deposit. If you need urgent, please kindly let us know, in guaranteed of quality, we will try our best to produce faster.
Q: Where is your factory located? How can I visit there?
A: Our factory address is: B block, NO.56 Heng dong ling Industrial Zone, Shenzhen, China. We can pick you up from airport or your hotel for visiting.
Q: What is the payment method?
A: We support a variety of payment methods, such as T/T, western union, paypal, moneygram.
Q: How to get the price list?
A: Sorry that we don't have price list because each project has difference requirements, and we quote according to your detailed requirements.
Product specification:
INDOOR RENTAL | ||||||||
Item | Value | |||||||
Model NO. | CDR-301 | CDR-391 | CDR-401 | CDR-481 | CDR-501 | CDR-601 | CDR-621 | CDR-101 |
Pixel Pitch | 3 | 3.91 | 4 | 4.81 | 5 | 6 | 6.25 | 10 |
Pixel Density (dots/sqm) | 111111 | 65536 | 62500 | 43264 | 40000 | 27777 | 25600 | 10000 |
LED Type | SMD2121 | SMD3528 | ||||||
Viewing Angle | H:120 V:120 | |||||||
Brightness (nits) | 800~1200 | |||||||
Refresh Rate (Hz) | 1920~3000 | |||||||
Module Size(mm) | 192*192 | 250*250 | 256*128 | 250*250 | 320*160 | 192*192 | 250*250 | 320*160 |
Cabinet Size (mm) | 576*576 | 500*500/500*1000 | 512*512 | 500*500/500*1000 | 640*640 | 576*576 | 500*500/500*1000 | 640*640 |
Cabinet Material | Die-casting aluminum / Magnalium | |||||||
Cabinet Weight | ≤ 35KG/SQM | |||||||
Power Consumption (Avg./Max. W/㎡) | 270/680 | 190/480 | 130/345 | 190/480 | 200/500 | 125/310 | 230/560 | 120/300 |
IP Grade | IP43 / IP31 | |||||||
Operating Temp/Humidity | -20℃~45℃ 10~90%RH | |||||||
Storage Temp/Humidity | -25℃~50℃ 10~90%RH | |||||||
Lifetime(hours) | ≥50000(Nomal Temp) |
The products we offer:
Indoor fixed and rental: P1.667,P1.923,P2,P2.5,P3,P4,P5,P6,P3.91,P,4.81 P6.25,P7.62,P10
Outdoor fixed and rental: P3,P4,P5,P6,P3.91,P,4.81 P6.25,P8,P10,P12,P16,P20
Mobile truck led display, transparent glass window led display.creative led display (ball led display, dj led display) and other customerized led display products
Our advantages:
1. Goods is examined before delivery, professional QC team.
2. Variety of customized products to satisfy different requestments.
3. Highest cost-effective price in the market.
4. All inquiry will be answered within 24 hours by a well-trained and experienced staffs.
5. Top quality & reasonable price & responsible after service.
6. All private information will be well protected.
7. All products undergo a strict aging test. The 72 hours aging test is conducted without die lamp, dim lamp, color difference and mosaic. The product is deliveryed only if it passes the aging test to ensure the best quality.
8. We specialize in high quality products.
9. We have professional R&D team who has professional development ability.
10. We are factory, we can offer better price than trading Company.
Our Services
Pre-producing:
1. Get complete requirements of clients.
2. To do a thorough analysis.
3. Offer a most reasonable and scientific solution.
4. Customized design.
In producing:
1. Producing progress updating for clients.
2. Provide Installation drawing for clients.
After service:
1. 2 years free maintenance.
2. 7 days a week, 24 hours a day on-line technical support for any clients.
3. Free training for customers in factory.
4. Local Installation Guidance Service.
