Specifications
Brand Name :
CIRID
Model Number :
CDN-500
Certification :
CE, RoHS,UL
Place of Origin :
Shenzhen
MOQ :
1PCS
Price :
negotiable
Payment Terms :
Western Union, MoneyGram, T/T
Supply Ability :
1000SQM PER DAY
Delivery Time :
15 WORKING DAYS
Packaging Details :
WOODEN BOX
Pixel Density :
40000
Pixel Pitch :
5
Cabinet Weight :
45KG
LED Type :
SMD2727
IP Grade :
IP65
Cabinet Material :
IRON
Description

P4 P5 P6 P8 Outdoor Street Advertising Light Pole Full Color Led Display

Product Feature

1. New style module mast which can improve 10% brightness than normal module mask and realize more clearer images with stronger feeling of layers.
2. Screen can work under very strong sunlight.
3. With sensor card, it can adjust screen brightness automatically according to the changing light between day and night which can save energy to reduce your operating cost greatly. In addition, it can prolong the lifespan of the LED Display.
4. Good protection level waterproof IP65, anti-corrosion, oxidation resistance, long life span.
5. Brightness can be adjusted automatically according to different surroundings.
6. Can be mounted on the wall, by pole support on the street, on top of building, etc.

FREQUENCY ASKED QUESTIONS

Q:Are you a factory or trading company?
A:We are a factory with 10+ years experience in led display industry. We can offer better price than trading Company.

Q: Where is your factory located? How can I visit there?
A: Our factory address is: B block, NO.56 Heng dong ling Industrial Zone, Shenzhen, China. We can pick you up from airport or your hotel for visiting.

Q: How to get the price list?
A: Sorry that we don't have price list because each project has difference requirements, and we quote according to your detailed requirements.

Q: What is Drive Method, driving IC and Power supply?
A: Drive Method: always we use static, 1/4 scan, 1/8 scan, 1/16 scan, the latter one contributes to less brightness than the former. We always use the static outdoor, and use the different kinds of scan indoor.Driving IC is the generic term for several kinds of IC, that are used to control the LED lamps, and as a bridge between the control system and lamps.Power supply: a kind of device that used as a transfer from 220V AC into 5V DC. It always seems like a box in the cabinet.

Q: What is viewing angle?
A: Viewing angle is the maximum angle at which a display can be viewed with acceptable visual performance. It includes horizontal viewing angle and vertical viewing angle.

Q: How can you ensure the led display product quality?
A: Before shipment, all the screens have aging test and then we also have waterproof test and shake test, ensure products can transportation safety and normal use.

OUTDOOR FIXED
Item Value
Model NO. CDN-400 CDN-500 CDN-600 CDN-800 CDN-100 CDN-100D CDN-160D
Pixel Pitch 4 5 6 8 10 10 16
Pixel Density (dots/sqm) 62500 40000 27777 15625 10000 10000 3906
LED Type SMD1921 SMD2727 SMD3535 DIP346
Viewing Angle H:120 V:120 H:120 V:60
Brightness (nits) 5000~6500 7000~8000
Refresh Rate 360~1920
Module Size(mm) 256*128 160*160 192*192 256*128 320*160 160*160 256*256
Cabinet Size Recommended (mm) 768*768 960*960 1024*1024 960*960 1024*1024
Cabinet Material Steel with powder painted
Cabinet Weight ≈ 45KG/SQM
Power Consumption (Avg./Max. W/㎡) 360/900 400/980 240/600 280/700 400/980 300/760 180/550
IP Grade IP65/54
Operating Temp/Humidity -20℃~45℃ 10~90%RH
Storage Temp/Humidity -25℃~50℃ 10~90%RH
Lifetime(hours) ≥50000(Nomal Temp)


The products we offer

Indoor fixed and rental: P1.667,P1.923,P2,P2.5,P3,P4,P5,P6,P3.91,P,4.81 P6.25,P7.62,P10

Outdoor fixed and rental: P3,P4,P5,P6,P3.91,P,4.81 P6.25,P8,P10,P12,P16,P20

Mobile truck led display, transparent glass window led display.creative led display (ball led display, dj led display) and other customerized led display products

Our advantages
1. Goods is examined before delivery, professional QC team.
2. Variety of customized products to satisfy different requestments.
3. Highest cost-effective price in the market.
4. All inquiry will be answered within 24 hours by a well-trained and experienced staffs.
5. Top quality & reasonable price & responsible after service.
6. All private information will be well protected.
7. All products undergo a strict aging test. The 72 hours aging test is conducted without die lamp, dim lamp, color difference and mosaic. The product is deliveryed only if it passes the aging test to ensure the best quality.
8. We specialize in high quality products.
9. We have professional R&D team who has professional development ability.
10. We are factory, we can offer better price than trading Company.


Our Services

Pre-producing:
1. Get complete requirements of clients.
2. To do a thorough analysis.
3. Offer a most reasonable and scientific solution.
4. Customized design.

In producing:
1. Producing progress updating for clients.
2. Provide Installation drawing for clients.

After service:
1. 2 years free maintenance.
2. 7 days a week, 24 hours a day on-line technical support for any clients.
3. Free training for customers in factory.

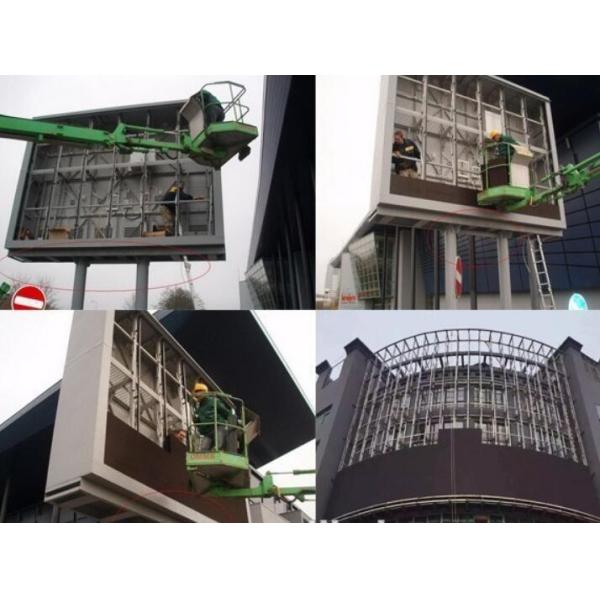

4. Local Installation Guidance Service.
