Specifications
Brand Name :
CIRID
Model Number :
CDN-100D
Certification :
CE,ROHS,UL,ETL
Place of Origin :
CHINA
MOQ :
1
Price :
negotiable
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
1000SQM per DAY
Delivery Time :
15 WORKING DAYS
Packaging Details :
WOODEN BOX
Module Size(mm) :
160*160
Cabinet Material :
Iron
Pixel Density (dots/sqm) :
10000
LED Type :
DIP
Cabinet Weight :
≈ 65KG/SQM
Power Consumption :
300/760
Description

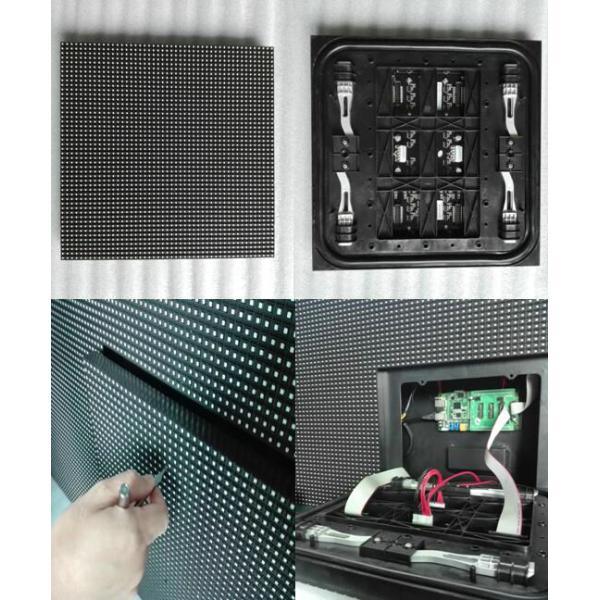

P10 Front Service Screen Fixed Installation Outdoor Led Sign Front Maintenance

Product Features

1. Screen can work under very strong sunlight.
2. Led display works in good condition under all kinds of bad weather; strong durability.
3. Brightness can be adjusted automatically according to different surroundings.

4. Long visual distance, screen can be viewed in a far away space.
5. Wide application usage, cost effective, customers can enjoy high quality visual effect with favorable price, greatly lower investment cost.
6. With pure golden wire connection in LED.

FREQUENCY ASKED QUESTIONS

Q: Where is your factory located? How can I visit there?
A: Our factory address is: B block, NO.56 Heng dong ling Industrial Zone, Shenzhen, China. We can pick you up from airport or your hotel for visiting.

Q: What's the shiping method?
A: Our products could be shipped by sea, by air, and by express.

Q: How can I get the sample to check your quality?
A: After price confirmation, you can require for samples to check our product’s quality.

Q: What is the brightness control, how to achieve?
A: Brightness control is needed since the environment brightness level is changing during the daytime. If you don’t adjust the brightness according to the environment, the LED display screen system will not have a perfect viewing effect. There’s two ways to achieve the brightness control: manually changing & automatic changing. The automatic brightness changing can adjust the LED display screen system’s brightness perfectly according to the environment brightness level.

Q: What is the difference between synchronous control system?
A: Synchronous means when the LED display screen system is working, the controlling PC must open and cannot be closed. Asynchronous control system means when the LED display is working, the controlling PC can be closed and the LED sign can work without PC after the basic set up and the program making.

Q: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit.
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

Product Parmeters

OUTDOOR FIXED
Item Value
Model NO. CDN-400 CDN-500 CDN-600 CDN-800 CDN-100 CDN-100D CDN-160D
Pixel Pitch 4 5 6 8 10 10 16
Pixel Density (dots/sqm) 62500 40000 27777 15625 10000 10000 3906
LED Type SMD1921 SMD2727 SMD3535 DIP346
Viewing Angle H:120 V:120 H:120 V:60
Brightness (nits) 5000~6500 7000~8000
Refresh Rate 360~1920
Module Size(mm) 256*128 160*160 192*192 256*128 320*160 160*160 256*256
Cabinet Size Recommended (mm) 768*768 960*960 1024*1024 960*960 1024*1024
Cabinet Material Steel with powder painted
Cabinet Weight ≈ 45KG/SQM
Power Consumption (Avg./Max. W/㎡) 360/900 400/980 240/600 280/700 400/980 300/760 180/550
IP Grade IP65/54
Operating Temp/Humidity -20℃~45℃ 10~90%RH
Storage Temp/Humidity -25℃~50℃ 10~90%RH
Lifetime(hours) ≥50000(Nomal Temp)

Why choose us

1. Diversified products: Varieties of models for outdoor/indoor LED display screens, and customized cabinets available, meet all requirements and win more profits for customers.

2. Quality assurance: Quality control is taken both in product design and production. As the quantity of PCB and other components have been decreased and simplified. Our engineers can concern in a small quantity of defect to solve and it will be a substantial boost of the yield rate. 100% testing before packing make sure our quality before delivery.

3. Best raw materials: High quality, good stability and reliability.

4. Competitive price: Factory price which is competitive in the market.

5. Prompt &Professional service: Any inquires will be replied within 12 hours in working days and you’ll get helpful suggestions from us.


The products we offer

Indoor fixed and rental: P1.667,P1.923,P2,P2.5,P3,P4,P5,P6,P3.91,P,4.81 P6.25,P7.62,P10

Outdoor fixed and rental: P3,P4,P5,P6,P3.91,P,4.81 P6.25,P8,P10,P12,P16,P20

Mobile truck led display, transparent glass window led display.creative led display (ball led display, dj led display) and other customerized led display products


Our Services

Pre-producing:
1. Get complete requirements of clients.
2. To do a thorough analysis.
3. Offer a most reasonable and scientific solution.
4. Customized design.

In producing:
1. Producing progress updating for clients.
2. Provide Installation drawing for clients.

After service:
1. 2 years free maintenance.
2. 7 days a week, 24 hours a day on-line technical support for any clients.
3. Free training for customers in factory.
4. Local Installation Guidance Service.
