Specifications
Brand Name :
CIRID
Model Number :
CDG-390
Certification :
CE, RoHS,UL
Place of Origin :
Shenzhen
MOQ :
1PCS
Price :
negotiable
Supply Ability :
1000SQM PER DAY
Delivery Time :
15 WORKING DAYS
Packaging Details :
WOODEN BOX
Model NO. :
CDG-391
Pixel Pitch :
3.91
Pixel Density :
32766
LED Type :
SMD3in1
Brightness :
4500nits
Refresh Rate :
1920
Description

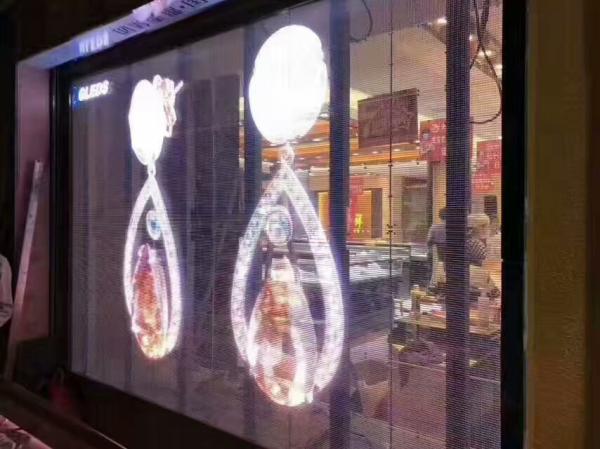

P3.9 Transparent Led Video Screen Rental Glass LED Display For Indoor Shows

Product Features

1. High transparency rate, 80% transparency rate without affecting day lighting. No need other heat dissipation system.
2. PCB board is only 10mm thickness, light weight, and does not occupy space, without changing the appearance and structure of the building.
3. Fast lock systems ensure fast installation and saving time and labor cost.

4. Smart control by mobile APP,wireless data transimission, screen data cloud app, wife connection.
5. High refresh rate in the industry, the minimum pixel pitch( able to mass production )3mm, 3840HZ refresh rate.
6. Super(or ultra) transparent, more than 85% transparency, the highest transparency in led screen industry.

FREQUENCY ASKED QUESTIONS

Q: Do you have CE/ROHS certificate?
A: Yes, we have the certificate.

Q: What's the shiping method?
A: Our products could be shipped by sea, by air, and by express.

Q: Can I use my own forwarder to transport the products for me?
A: Yes, if you have your own forwarder, you can let your forwarder ship the products for you. But it is suggested that use our forwarder because we have long-term good relationship with them for good price and service.

Q: What is the payment method?
A: We support a variety of payment methods, such as T/T, western union, paypal, moneygram.

Q: What's the payment terms?
A: 70% deposit to start production, and 30% balance to be clear before delivery.

Q: Where the led display is used for?
A: Indoor & outdoor use. Widely used for backdrop of staging event, rental business, liveshow, concert, etc.

Product Parmeters

Item Value
Model CDG-391 CDG-781 CDG-151 CDG-101 CDG-390 CDG-780 CDG-710 CDG-101 CDG-101
Pixel pitch 3.91-7.81 7.81-7.81 7.81-15.62 10.4-10.4 3.91-7.81 7.81-7.81 7.81-15.62 10.4-10.4 15.64-15.64
Pixel Density (dots/㎡) 32768 16384 8192 9216 32768 16384 8192 9216 4096
Power Consumption ( W/㎡ Average/Max.) 120/400 260/950 250/920 220/900 220/900 200/860
Usage Indoor Semi-outdoor
Brightness (CD/m2) > 1000 > 4000
Pixel Configuration 1R1G1B
LED Encapsulation SMD 3in1
Cabinet Size(mm) 500 * 1000
Cabinet material Aluminum
Weight ≈15KG/SQM
Transparence > 80%
Viewing Angle H: 120° V: 120°
Refresh Rate > 1920HZ
Frame Frequency 50 - 60Hz
Working Voltage 110V / 220V AC±10%
MTBF > 10,000 hrs
Lifespan ≥ 100,000 hrs
Working Temperature / Humidity -20℃ - +45℃ 10-90% RH
Storage Temperature / Humidity -25℃~50℃ 10~90%RH

Why choose us

1. Diversified products: Varieties of models for outdoor/indoor LED display screens, and customized cabinets available, meet all requirements and win more profits for customers.

2. Quality assurance: Quality control is taken both in product design and production. As the quantity of PCB and other components have been decreased and simplified. Our engineers can concern in a small quantity of defect to solve and it will be a substantial boost of the yield rate. 100% testing before packing make sure our quality before delivery.

3. Best raw materials: High quality, good stability and reliability.

4. Competitive price: Factory price which is competitive in the market.

5. Prompt &Professional service: Any inquires will be replied within 12 hours in working days and you’ll get helpful suggestions from us.


The products we offer

Indoor fixed and rental: P1.667,P1.923,P2,P2.5,P3,P4,P5,P6,P3.91,P,4.81 P6.25,P7.62,P10

Outdoor fixed and rental: P3,P4,P5,P6,P3.91,P,4.81 P6.25,P8,P10,P12,P16,P20

Mobile truck led display, transparent glass window led display.creative led display (ball led display, dj led display) and other customerized led display products


Our Services

Pre-producing:
1. Get complete requirements of clients.
2. To do a thorough analysis.
3. Offer a most reasonable and scientific solution.
4. Customized design.

In producing:
1. Producing progress updating for clients.
2. Provide Installation drawing for clients.

After service:
1. 2 years free maintenance.
2. 7 days a week, 24 hours a day on-line technical support for any clients.
3. Free training for customers in factory.
4. Local Installation Guidance Service.
