Specifications
Brand Name :
CIRID
Model Number :
CDG-781
Certification :
CE, RoHS,UL
Place of Origin :
Shenzhen
MOQ :
1PCS
Price :
negotiable
Supply Ability :
1000SQM PER DAY
Delivery Time :
15 WORKING DAYS
Packaging Details :
WOODEN BOX
Model NO. :
CDG-781
Pixel Pitch :
7.81
Pixel Density :
16384
LED Type :
SMD3528
Brightness :
1000nits
Refresh Rate :
1920
Description

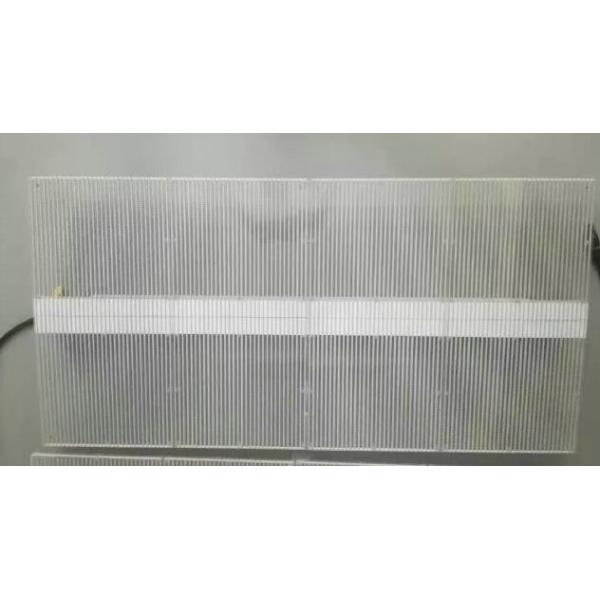

P7.81 Glass Led Transparent Display Led Video Transparent Curtain Display

Product Features

1. High transparency rate, 80% transparency rate without affecting day lighting. No need other heat dissipation system.
2. PCB board is only 10mm thickness, light weight, and does not occupy space, without changing the appearance and structure of the building.
3. Fast lock systems ensure fast installation and saving time and labor cost.

4. High contrast ratio 1500:1, stunning color, dynamicimage and eye-catching.
5. No complicated installation, No steel structure, fast positioning and fast installation, convenient and quick maintenance.
6. New Contiguration, the shape innovation of static glass, new screen displaying, new advertising type.

FREQUENCY ASKED QUESTIONS

Q: Do you have CE/ROHS certificate?
A: Yes, we have the certificate.

Q: What's the shiping method?
A: Our products could be shipped by sea, by air, and by express.

Q: Can I use my own forwarder to transport the products for me?
A: Yes, if you have your own forwarder, you can let your forwarder ship the products for you. But it is suggested that use our forwarder because we have long-term good relationship with them for good price and service.

Q: What is the delivery guarantee?
A: Guarantee time: 2 years. Within 2 years, if any part failed, we send new parts or repair for free, You will undertake shipping cost from your city to China and we undertake shipping cost from China to your city. After 2 years, we only charge cost price for parts and repairements, and you need to pay shipping cost go and back.

Q: What's the control system?
A: Control system could be Linsn, Nova-star, Xixun, Color light...Usually client use Linsn for fixed installation led screens, and Nova-star system for rental screens.

Q: Why is brightness important?
A: If you want images to be seen during the day, your display must compete with the Sun. The Sun emits approximately 4,000 nits of light (a nit is a measurement of light emitted from a device.) In order for an LED display to display effectively during the day, a minimum of 5,000 nits is required.

Product Parmeters

Item Value
Model CDG-391 CDG-781 CDG-151 CDG-101 CDG-390 CDG-780 CDG-710 CDG-101 CDG-101
Pixel pitch 3.91-7.81 7.81-7.81 7.81-15.62 10.4-10.4 3.91-7.81 7.81-7.81 7.81-15.62 10.4-10.4 15.64-15.64
Pixel Density (dots/㎡) 32768 16384 8192 9216 32768 16384 8192 9216 4096
Power Consumption ( W/㎡ Average/Max.) 120/400 260/950 250/920 220/900 220/900 200/860
Usage Indoor Semi-outdoor
Brightness (CD/m2) > 1000 > 4000
Pixel Configuration 1R1G1B
LED Encapsulation SMD 3in1
Cabinet Size(mm) 500 * 1000
Cabinet material Aluminum
Weight ≈15KG/SQM
Transparence > 80%
Viewing Angle H: 120° V: 120°
Refresh Rate > 1920HZ
Frame Frequency 50 - 60Hz
Working Voltage 110V / 220V AC±10%
MTBF > 10,000 hrs
Lifespan ≥ 100,000 hrs
Working Temperature / Humidity -20℃ - +45℃ 10-90% RH
Storage Temperature / Humidity -25℃~50℃ 10~90%RH

Why choose us

1. Diversified products: Varieties of models for outdoor/indoor LED display screens, and customized cabinets available, meet all requirements and win more profits for customers.

2. Quality assurance: Quality control is taken both in product design and production. As the quantity of PCB and other components have been decreased and simplified. Our engineers can concern in a small quantity of defect to solve and it will be a substantial boost of the yield rate. 100% testing before packing make sure our quality before delivery.

3. Best raw materials: High quality, good stability and reliability.

4. Competitive price: Factory price which is competitive in the market.

5. Prompt &Professional service: Any inquires will be replied within 12 hours in working days and you’ll get helpful suggestions from us.


The products we offer

Indoor fixed and rental: P1.667,P1.923,P2,P2.5,P3,P4,P5,P6,P3.91,P,4.81 P6.25,P7.62,P10

Outdoor fixed and rental: P3,P4,P5,P6,P3.91,P,4.81 P6.25,P8,P10,P12,P16,P20

Mobile truck led display, transparent glass window led display.creative led display (ball led display, dj led display) and other customerized led display products


Our Services

Pre-producing:
1. Get complete requirements of clients.
2. To do a thorough analysis.
3. Offer a most reasonable and scientific solution.
4. Customized design.

In producing:
1. Producing progress updating for clients.
2. Provide Installation drawing for clients.

After service:
1. 2 years free maintenance.
2. 7 days a week, 24 hours a day on-line technical support for any clients.
3. Free training for customers in factory.
4. Local Installation Guidance Service.
