Specifications
Brand Name :
CIRID
Model Number :
CDG-390
Certification :
CE, RoHS,UL
Place of Origin :
Shenzhen
MOQ :
1PCS
Price :
negotiable
Supply Ability :
1000SQM PER DAY
Delivery Time :
15 WORKING DAYS
Packaging Details :
WOODEN BOX
Model NO. :
CDG-390
Pixel Pitch :
3.91-7.81mm
Pixel Density :
32768
LED Type :
SMD 3IN1
Brightness :
> 4000
Refresh Rate :
1920
Cabinet Size :
1000*500
Cabinet Material :
Aluminum
Cabinet Weight :
< 15KG/SQM
Power Consumption :
260/900
Description

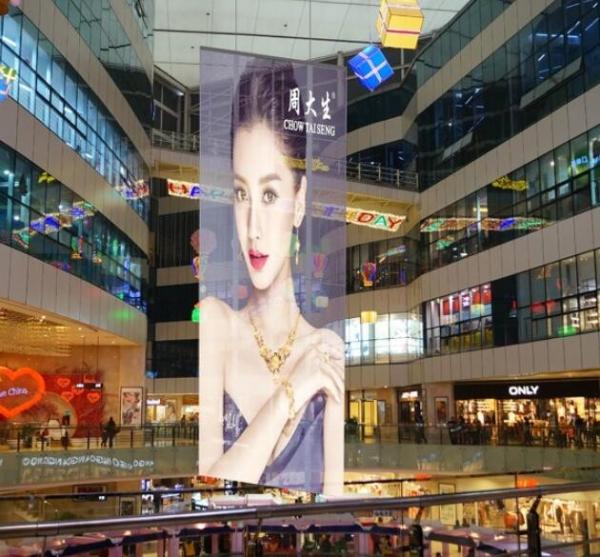

Transparent LED Screen can be used at any place that has glass walls. Highly usable at places like bank, shopping mall, theater, commercial stage, chain store, hotel, public building and landmark building etc.

1.High transparency rate
80% transparency rate without affecting day-lighting.No need other heat dissipation system.
2.Light weight
PCB board is only 10mm thickness, light weight, and does not occupy space, without changing the appearance and structure of the building.
3. Fast installation
Fast lock systems ensure fast installation and saving time and labor cost.
4. High brightness and energy saving
6000nits brightness ensure the perfect visual performance even under direct sunlight .without and cooling system .saves lots of power.
5.Easy maintenance
Repairing single SMD without taking of single module of entire panel.
6.Wide applications
Any building with glass wall. Such as shopping mall, 4S store, jewelry store, clothing store, watch store, theatres, hotels, airport, museum, etc.

Item Value
Model NO. CDG-390
Pixel Pitch 3.91-7.81
Pixel Density (dots/sqm) 32768
LED Type SMD 3IN1
Transparence ≥80％
Viewing Angle H:140 V:140
Brightness (nits) > 4000
Refresh Rate 1920
Cabinet Size 1000*500
Cabinet Material Aluminum
Cabinet Weight < 15KG/SQM
Power Consumption (Avg./Max. W/㎡) 260/900
Operating Temp/Humidity -20℃～45℃ 10～90%RH
Storage Temp/Humidity -25℃～50℃ 10～90%RH
Lifetime(hours) ≥50000(Nomal Temp)
