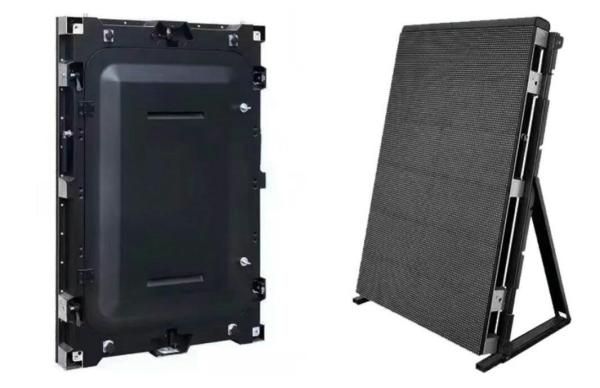

High Brightness SMD P8mm Outdoor Sport Perimeter Stadium Led Display
Product Feature
1. OEM cabinet size: cabinet size is adjustable and compatible with different pixels.
2. Screen can work under very strong sunlight.
3. Outdoor standard cabinet applied with strong humidity resistance ability as well as corrossion resistance.
4. Both synchronous and asynchronous control system are available
5. Super flatness & uniformity, large viewing angle, high brightness.
6. Long visual distance, screen can be viewed in a far away space.
FREQUENCY ASKED QUESTIONS
Q:Are you a factory or trading company?
A:We are a factory with 10+ years experience in led display industry. We can offer better price than trading Company.
Q: Where is your factory located? How can I visit there?
A: Our factory address is: B block, NO.56 Heng dong ling Industrial Zone, Shenzhen, China. We can pick you up from airport or your hotel for visiting.
Q: How to get the price list?
A: Sorry that we don't have price list because each project has difference requirements, and we quote according to your detailed requirements.
Q: What is the life expectancy of LED display?
A: LEDs have an average life span of 100,000 hours or 10+ years. Your LED display must be of quality materials and sealed from the harsh elements of outdoors to extend the lifetime.
Q: What is the brightness control, how to achieve?
A: Brightness control is needed since the environment brightness level is changing during the daytime. If you don’t adjust the brightness according to the environment, the LED display screen system will not have a perfect viewing effect. There’s two ways to achieve the brightness control: manually changing & automatic changing. The automatic brightness changing can adjust the LED display screen system’s brightness perfectly according to the environment brightness level.
Q: What is the difference between synchronous control system?
A: Synchronous means when the LED display screen system is working, the controlling PC must open and cannot be closed. Asynchronous control system means when the LED display is working, the controlling PC can be closed and the LED sign can work without PC after the basic set up and the program making.
OUTDOOR FIXED | |||||||
Item | Value | ||||||
Model NO. | CDN-400 | CDN-500 | CDN-600 | CDN-800 | CDN-100 | CDN-100D | CDN-160D |
Pixel Pitch | 4 | 5 | 6 | 8 | 10 | 10 | 16 |
Pixel Density (dots/sqm) | 62500 | 40000 | 27777 | 15625 | 10000 | 10000 | 3906 |
LED Type | SMD1921 | SMD2727 | SMD3535 | DIP346 | |||
Viewing Angle | H:120 V:120 | H:120 V:60 | |||||
Brightness (nits) | 5000~6500 | 7000~8000 | |||||
Refresh Rate | 360~1920 | ||||||
Module Size(mm) | 256*128 | 160*160 | 192*192 | 256*128 | 320*160 | 160*160 | 256*256 |
Cabinet Size Recommended (mm) | 768*768 | 960*960 | 1024*1024 | 960*960 | 1024*1024 | ||
Cabinet Material | Steel with powder painted | ||||||
Cabinet Weight | ≈ 45KG/SQM | ||||||
Power Consumption (Avg./Max. W/㎡) | 360/900 | 400/980 | 240/600 | 280/700 | 400/980 | 300/760 | 180/550 |
IP Grade | IP65/54 | ||||||
Operating Temp/Humidity | -20℃~45℃ 10~90%RH | ||||||
Storage Temp/Humidity | -25℃~50℃ 10~90%RH | ||||||
Lifetime(hours) | ≥50000(Nomal Temp) |
Why choose us?
1. Diversified products: Varieties of models for outdoor/indoor LED display screens, and customized cabinets available, meet all requirements and win more profits for customers.
2. Quality assurance: Quality control is taken both in product design and production. As the quantity of PCB and other components have been decreased and simplified. Our engineers can concern in a small quantity of defect to solve and it will be a substantial boost of the yield rate. 100% testing before packing make sure our quality before delivery.
3. Best raw materials: High quality, good stability and reliability.
4. Competitive price: Factory price which is competitive in the market.
5. Prompt &Professional service: Any inquires will be replied within 12 hours in working days and you’ll get helpful suggestions from us.
The products we offer
Indoor fixed and rental: P1.667,P1.923,P2,P2.5,P3,P4,P5,P6,P3.91,P,4.81 P6.25,P7.62,P10
Outdoor fixed and rental: P3,P4,P5,P6,P3.91,P,4.81 P6.25,P8,P10,P12,P16,P20
Mobile truck led display, transparent glass window led display.creative led display (ball led display, dj led display) and other customerized led display products
Our Services
Pre-producing:
1. Get complete requirements of clients.
2. To do a thorough analysis.
3. Offer a most reasonable and scientific solution.
4. Customized design.
In producing:
1. Producing progress updating for clients.
2. Provide Installation drawing for clients.
After service:
1. 2 years free maintenance.
2. 7 days a week, 24 hours a day on-line technical support for any clients.
3. Free training for customers in factory.
4. Local Installation Guidance Service.
