Specifications
Brand Name :
CIRID
Model Number :
CDN-100
Certification :
CE, RoHS,UL
Place of Origin :
Shenzhen
MOQ :
1PCS
Price :
negotiable
Payment Terms :
Western Union, MoneyGram, T/T
Supply Ability :
1000SQM PER DAY
Delivery Time :
15 WORKING DAYS
Packaging Details :
WOODEN BOX
Model NO. :
CDN-100
Pixel Pitch :
10mm
Cabinet Material :
ALU.
Cabinet Weight :
36KG
IP Grade :
IP65/54
Lifetime :
More than 5 years
Description

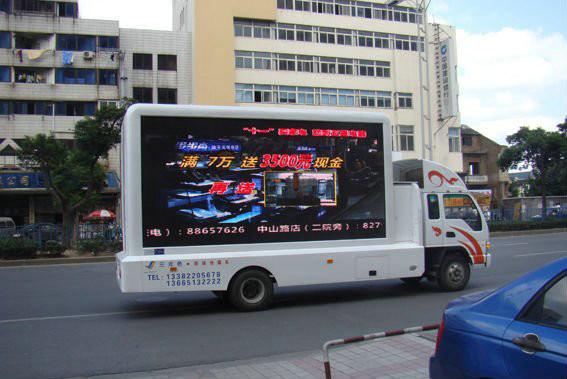

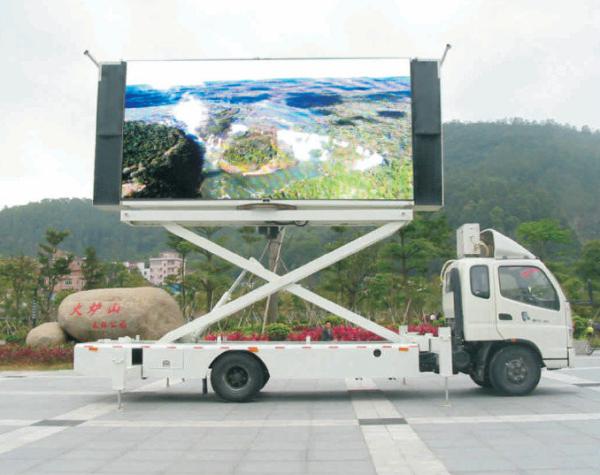

Good Quality Price HD Video P8mm P8 Truck Mobile Outdoor Advertising Rental

Product Feature

1. Un peso de 1/4 de una pantalla normal. Reduce la carga del peso de edificio.
2. Color personalizado de módulos.Para que sea adecuado con el color de edificio.
3. Featured with high transparency, Transparent LED Screen can be used at any place that has glass walls. Highly usable at places like bank, shopping mall, theater, commercial stage, chain store, hotel, public building and landmark building etc.

4. PCB board is only 10mm thickness, light weight, and does not occupy space, without changing the appearance and structure of the building.
5. Fast lock systems ensure fast installation and saving time and labor cost.
6. 5000nits brightness ensure the perfect visual performance even under direct sunlight without cooling system. Saves cost for air conditioner.

FREQUENCY ASKED QUESTIONS

Q: What about the production time for order ?
A: Usually it takes 10-30 days for manufacturing. It depends on the order quantity and the season you place the order.

Q: How about the warranty?
A: We have 2 years warranty and lifelong maintenance.

Q: What is DIP?And what is SMD?
A: DIP means double in line package, we call led lamp. SMD means surface mounted device.

Q: What kind of display we provide?
A: We have indoor/outdoor/led curtain/mobile LED /rental LED display/LED stage/LED DanceFloor/Irregular LED display for you choose.

Q: Except this model, are there any other models?
A: Yes, For indoor led screen we have P1.667,P1.923,P2,P2.5,P3,P4,P5,P6,P3.91,P,4.81 P6.25,P7.62,P10.
For outdoor led screen we have P3,P4,P5,P6,P3.91,P,4.81 P6.25,P8,P10,P12,P16,P20.

Q: What's the function of your led screen?
A: It supports videos, flash, WAV/MIDI, PPT, images and so on.

Product Parmeters

OUTDOOR FIXED
Item Value
Model NO. CDN-400 CDN-500 CDN-600 CDN-800 CDN-100 CDN-100D CDN-160D
Pixel Pitch 4 5 6 8 10 10 16
Pixel Density (dots/sqm) 62500 40000 27777 15625 10000 10000 3906
LED Type SMD1921 SMD2727 SMD3535 DIP346
Viewing Angle H:120 V:120 H:120 V:60
Brightness (nits) 5000~6500 7000~8000
Refresh Rate 360~1920
Module Size(mm) 256*128 160*160 192*192 256*128 320*160 160*160 256*256
Cabinet Size Recommended (mm) 768*768 960*960 1024*1024 960*960 1024*1024
Cabinet Material Steel with powder painted
Cabinet Weight ≈ 45KG/SQM
Power Consumption (Avg./Max. W/㎡) 360/900 400/980 240/600 280/700 400/980 300/760 180/550
IP Grade IP65/54
Operating Temp/Humidity -20℃~45℃ 10~90%RH
Storage Temp/Humidity -25℃~50℃ 10~90%RH
Lifetime(hours) ≥50000(Nomal Temp)


The products we offer

Indoor fixed and rental: P1.667,P1.923,P2,P2.5,P3,P4,P5,P6,P3.91,P,4.81 P6.25,P7.62,P10

Outdoor fixed and rental: P3,P4,P5,P6,P3.91,P,4.81 P6.25,P8,P10,P12,P16,P20

Mobile truck led display, transparent glass window led display.creative led display (ball led display, dj led display) and other customerized led display products

Our advantages
1. Goods is examined before delivery, professional QC team.
2. Variety of customized products to satisfy different requestments.
3. Highest cost-effective price in the market.
4. All inquiry will be answered within 24 hours by a well-trained and experienced staffs.
5. Top quality & reasonable price & responsible after service.
6. All private information will be well protected.
7. All products undergo a strict aging test. The 72 hours aging test is conducted without die lamp, dim lamp, color difference and mosaic. The product is deliveryed only if it passes the aging test to ensure the best quality.
8. We specialize in high quality products.
9. We have professional R&D team who has professional development ability.
10. We are factory, we can offer better price than trading Company.


Our Services

Pre-producing:
1. Get complete requirements of clients.
2. To do a thorough analysis.
3. Offer a most reasonable and scientific solution.
4. Customized design.

In producing:
1. Producing progress updating for clients.
2. Provide Installation drawing for clients.

After service:
1. 2 years free maintenance.
2. 7 days a week, 24 hours a day on-line technical support for any clients.
3. Free training for customers in factory.
4. Local Installation Guidance Service.
