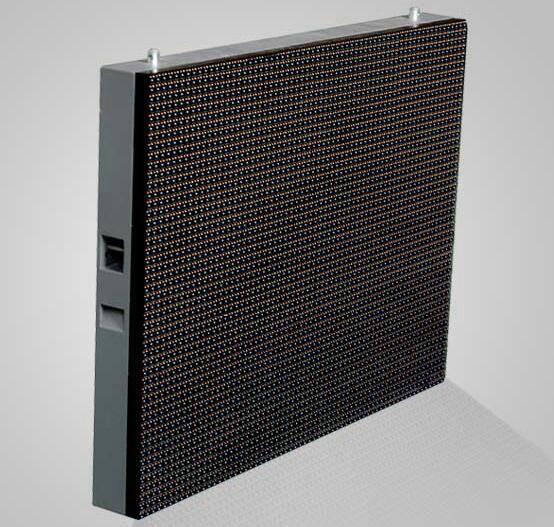

Indoor Advertising RGB Full Color HD P6 Led Display Used For Product Promotion
Product Features
1. Support all types of video, graphics, animation, message, etc, support PC online or offline control, also can remote control with asynchronous system, or Wifi control, 3G control.
2. Outdoor standard cabinet applied with strong humidity resistance ability as well as corrossion resistance.
3. With multi- functional card, the led display can turn on and turn off the screen by timing or manually at any time.
4. High gray scale & refresh rate.
5. Lightweight, space-saving and labour-saving.
6. Nice appearance and simple structures.
FREQUENCY ASKED QUESTIONS
Q: How to get the price list?
A: Sorry that we don't have price list because each project has difference requirements, and we quote according to your detailed requirements.
Q: Can I use my own forwarder to transport the products for me?
A: Yes, if you have your own forwarder, you can let your forwarder ship the products for you. But it is suggested that use our forwarder because we have long-term good relationship with them for good price and service.
Q: How can I get the sample to check your quality?
A: After price confirmation, you can require for samples to check our product’s quality.
Q: How do you make our business long-term and good relationship?
"A: 1. We keep good quality and competitive price to ensure our customers benefit.
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from."
Q: How about the size of project?
A: Please offer the size with "width by height" of project. We wil offer the suitable solution for your project size. I will appreciate it if any drawing files about installation offered.
Q: Do you have any MOQ limit for led light order?
A: NO MOQ, 1pc for sample checking is available.
Product Parmeters
INDOOR FIXED | ||||||||||||
Item | Value | |||||||||||
Model No. | CDN-151 | CDN-161 | CDN-181 | CDN-191 | CDN-201 | CDN-251 | CDN-301 | CDN-401 | CDN-501 | CDN-601 | CDN-761 | CDN-101 |
Pixel Pitch(mm) | 1.5625 | 1.667 | 1.875 | 1.923 | 2 | 2.5 | 3 | 4 | 5 | 6 | 7.62 | 10 |
Pixel Density(dots/sqm) | 409600 | 359856 | 284444 | 270422 | 250000 | 160000 | 111111 | 62500 | 40000 | 27777 | 17223 | 10000 |
LED Type | SMD1010 | SMD2121 | SMD3528 | |||||||||
Viewing Angle(Deg.) | H:120 V:120 | |||||||||||
Brightness(nits) | 800~1000 | 800~1200 | ||||||||||
Refresh Rate(Hz) | 360~1920 | |||||||||||
Module Size(mm) | 200*100 | 120*120 | 200*100 | 128*128 | 160*160 | 192*192 | 256*256 | 320*160 | 384*192 | 488*244 | 320*160 | |
Cabinet Size Recommended (mm) | 400*300 | 480*480 | 400*300 | 512*512 | 480*480 | 576*576 | 768*768 | 960*960 | 768*768 | 976*976 | 960*960 | |
Cabinet Material | Die-casting aluminum / Magnalium | Steel with powder painted | ||||||||||
Cabinet Weight | ≤35KG/SQM | ≈45KG/SQM | ||||||||||
Power Consumption (Avg./Max. W/㎡) | 500/1250 | 600/1500 | 500/1250 | 320/800 | 310/780 | 270/680 | 280/700 | 200/500 | 125/310 | 100/260 | 120/300 | |
IP Grade | IP43 / IP31 | |||||||||||
Operating Temp/Humidity (℃/%RH) | -20℃~45℃10~90%RH | |||||||||||
Storage Temp/Humidity (℃/%RH) | -25℃~50℃ 10~90%RH | |||||||||||
Lifetime(hours) | ≥50000(Normal Temp) |
Why choose us
1. Diversified products: Varieties of models for outdoor/indoor LED display screens, and customized cabinets available, meet all requirements and win more profits for customers.
2. Quality assurance: Quality control is taken both in product design and production. As the quantity of PCB and other components have been decreased and simplified. Our engineers can concern in a small quantity of defect to solve and it will be a substantial boost of the yield rate. 100% testing before packing make sure our quality before delivery.
3. Best raw materials: High quality, good stability and reliability.
4. Competitive price: Factory price which is competitive in the market.
5. Prompt &Professional service: Any inquires will be replied within 12 hours in working days and you’ll get helpful suggestions from us.
The products we offer
Indoor fixed and rental: P1.667,P1.923,P2,P2.5,P3,P4,P5,P6,P3.91,P,4.81 P6.25,P7.62,P10
Outdoor fixed and rental: P3,P4,P5,P6,P3.91,P,4.81 P6.25,P8,P10,P12,P16,P20
Mobile truck led display, transparent glass window led display.creative led display (ball led display, dj led display) and other customerized led display products
Our Services
Pre-producing:
1. Get complete requirements of clients.
2. To do a thorough analysis.
3. Offer a most reasonable and scientific solution.
4. Customized design.
In producing:
1. Producing progress updating for clients.
2. Provide Installation drawing for clients.
After service:
1. 2 years free maintenance.
2. 7 days a week, 24 hours a day on-line technical support for any clients.
3. Free training for customers in factory.
4. Local Installation Guidance Service.
