Indoor Rental HD Full Color SMD P1.667 Led Screen Module
Indoor Rental HD Full Color SMD P1.667 Led Screen Module
Indoor Rental HD Full Color SMD P1.667 Led Screen Module
Indoor Rental HD Full Color SMD P1.667 Led Screen Module
Indoor Rental HD Full Color SMD P1.667 Led Screen Module
Indoor Rental HD Full Color SMD P1.667 Led Screen Module
Indoor Rental HD Full Color SMD P1.667 Led Screen Module
Indoor Rental HD Full Color SMD P1.667 Led Screen Module
Specifications
Brand Name :
XGCLED
Model Number :
P1.667 LED module
Place of Origin :
Shen Zhen ,China
MOQ :
1 pcs
Price :
USD$117/square meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 square meter per month
Delivery Time :
7-20days
Packaging Details :
Cartons , wooden case , fright case
Model :
P1.667
Pixel pitch :
1.667mm
Brightness :
500cd/m2
Viewing angle :
H140 ° V140°
Max power consumption :
580W/m²
Ave power consumption :
250W/m²
Scan mode :
1/30 scan
Gray level :
16bits
Refresh rate :
2800~3840Hz
Recommended Viewing angle :
1.7~15m
Environment :
Indoor using
Lifetime :
>100,000hours
Description

Factory price High resolution HD full color SMD P1.667 indoor rental LED module

How to select led type?

In usually,

For indoor stage will be select indoor die casting P2.5 P3 P4 P5 P6,P3.91 P4.81 P6.25

For outdoor stage will be select P3.91 P4.81 P6.25 P6 P8 P10

For fixed installed led screen, can select P2 P2.5 P3 P4 P5 P6 P10

For outdoor fixed installation,if it is not directly to sun,can select outdoor SMDP6 P8 P10,DIP P10

if directly to sun,can select outdoor SMD P8, DIP P10

For big size led screen can select DIP P10 or P16

Also we have researched outdoor high resolution DIP 3in1: P5 P6 P8 P10,

there are good for high resolution led screen.

Welcome to contact us , if you have any question please let us know ,thank you !

Welcome to visti our factory any time !

Technical parameter

Our LED lamp are by Sanan , Kinglight , Silan , Epistar , Nation star , Cree etc .

Driving IC optional brand ICN2037 or MBI5124

Description Technical parameter
Unit module Module size 200x150mm
Pixel pitch 1.667mm
Pixel density 360000dots/m2
Pixel configuration 1R1G1B
Led chips SMD1010 3 in 1 Nation star golden wire
Cabinet Dimension 400x300mm( die cast aluminum )
Total weight 4.2kg
Thickness 6-7cm
Power Working voltage AC220V/110V±10%
Current ≤20mA(single LED)
Control system CPU Pentium4 or above
Control method Synchronization/ Asychronization
Main technical parameter Driving device 1/30 scan
Drive type Constant Current driver IC
Refresh frequency 2800-3840Hz
Life span ≥100,000hours
Power switch Automatic switch

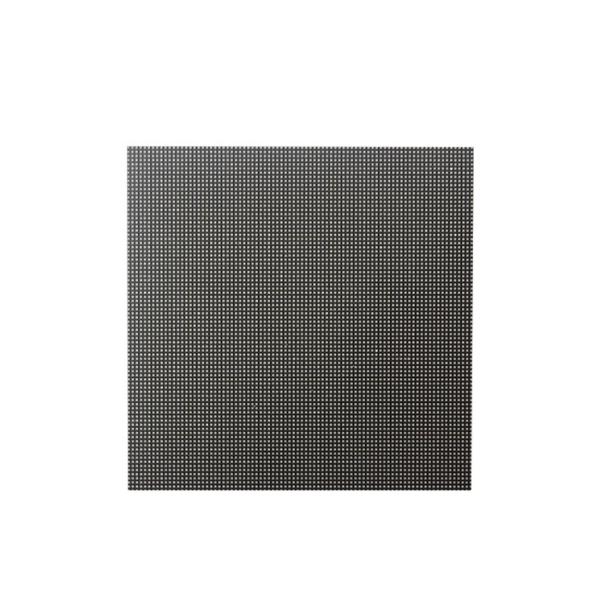

Module front image

Indoor Rental HD Full Color SMD P1.667 Led Screen Module

Module rear image

Indoor Rental HD Full Color SMD P1.667 Led Screen Module

Cabinet specification

Indoor Rental HD Full Color SMD P1.667 Led Screen Module

Cabinet size 400X300mm
Material Die casting Aluminum
Weight 6kg

Features

1) Thin and light cabinet

Simple , Ultra thin and light design , support both front &real maintenance

2) New design only one installation

All moudle are in size of 320mmX160mm ,all cabinet in size of 640mmX480mm ,

so you just need to replace of module if you want a higher definition , it is cost -saving and labor -saving

3) Low consumption energy saving

PWM driving IC , 3840Hz high definition refresh rate .

4.2V voltage design , Low power consumption ,energy saving and environment friendly .

LED display Screen case


Indoor Rental HD Full Color SMD P1.667 Led Screen Module

Indoor Rental HD Full Color SMD P1.667 Led Screen Module
