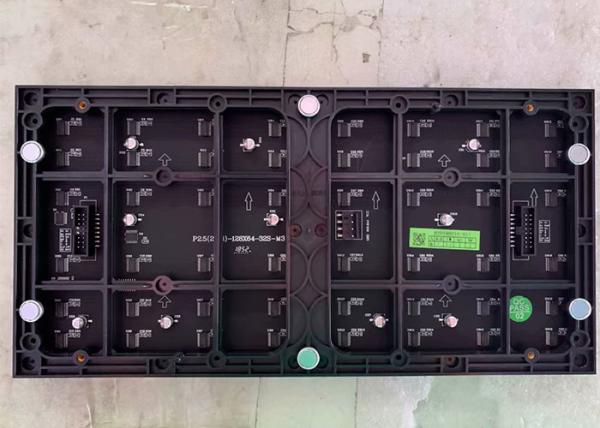

Indoor front service LED screen display 320X160mm 128X64dots LED module P2.5

Technical Parameter for P2.5 INDOOR LED DISPLAY
Module Specifications
1	Pixel Pitch	2.5mm		Standard LED iron cabinet with back doors 　School project case
2	Led Type	SMD2121
3	Pixel configuration	1R1G1B
4	Module Size	320x160mm
5	Module Resolution	128x64pixels
6	LED Chip	Epistar
7	LED brand	Hongsheng/Forest/ Kinglight/Nationstar/
Cabinet Specification
1	Cabinet Size	960x960mm
2	Cabinet Resolution	384x384 pixels
3	Module Qty.	3x6pcs
4	Power Supply	5V40A 200W/ 5V60A 300W
6	Cabinet Materials	iron cabinet
7	Power flight socket	1set
Screen Parameters
1	Pixel density	160000dots/㎡
2	Screen Resolution	according to screen size
3	Cabinet Qty.	according to screen size
4	Brightness	≥1200 CD/sqm
5	Refresh rate	≥1920Hz/s
6	Scanning Mode	1/32 scan
7	Viewing Angle	H:140°;V:140°
8	Viewing Distance	≥2.5m
9	Gray Level	16 Bit
10	Power Input	AC110~240V
11	Power Comsuption	Max: 800W/㎡ Average:240W/㎡
12	MTBF--hours	>10,000 hours
13	Life--hours	≥100,000 hours
14	IP Grade	IP40/IP30
15	Operating Temperature	-35℃~ 65℃
16	Storage Humidity	10℃~70℃RH
17	Control Syetem	Colorlight/Nova/Linsn
18	Operating System	Windows98/me/2000 /NT/XP
19	Power Supply	5V40A 200W/5V60A 300W
20	Maintance Access	Front service
21	Control mode	computer /USB/WIFI/4G

HS code: 8528591090

Regular carton package:(Plywood case also available,but need to pay extra cost.)

Indoor LED display project case:

FAQ

1. How can i place an order?
Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with Skype/email /phone, in case of any delays.

2. What kind of display do we provide?
We have indoor/outdoor/mobile LED /rental LED display /LED stage/ Advertising LED display for you choose.

3. What about the lead time for an order?
Always: 5-15 days, as your order quantity, sometimes we have stock, can delivery within 5 days.

4. What about the warranty?
We have Two/ Three years quality guaranteed, spare parts such as led module, receiving card, control card, power supply are damaged not cause of artificial damaged, then it's free maintenance and ship back new ones for replacement.

5.How about the quality?
Our led products must be testing of at least 72hours before shipping, from purchase raw materials to ship ,Each step has strict quality control systems to ensure led display with good quality.

6. Can you offer a technical support? Since it's my first time....
We provide free training for our customer, teach the client how to set up screens, make configuration of parameters, broadcast the videos through Nova star and colorlight or Linsn control systems, our engineer can directly teach you how to control, or help you to done if you are really don't know how to control(Our Engineer can text English, we can saving more time )

We're devoted to innovative high-end led display with over 10 years manufacturing experience, and we believe you could get a professional solution and best service from SXGCLED. We're happy to serve you.
If you need led display screen,welcome to contact us,we can customize according to your needs.
For more questions about SZXGCLED wholesale price full color smd outdoor/indoor led video display screen fixed with iron cabinet , please contact me of SZXGCLED LED direct OEM manufacturer right now! Welcome any question!
