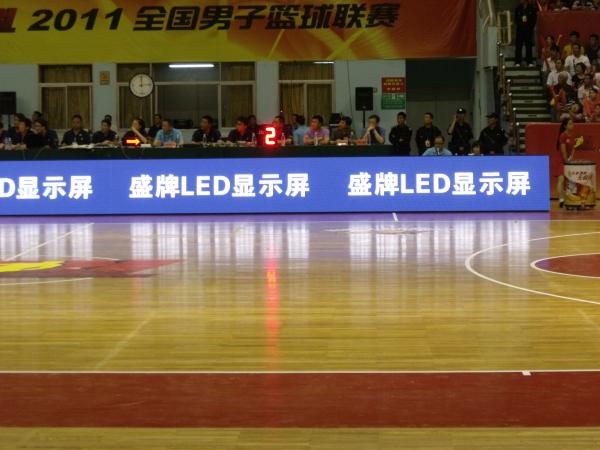

SMD3535 IP65 6500 Cd/M2 P10 Stage Stadium LED Screen
SMD3535 IP65 6500 Cd/M2 P10 Stage Stadium LED Screen
SMD3535 IP65 6500 Cd/M2 P10 Stage Stadium LED Screen
SMD3535 IP65 6500 Cd/M2 P10 Stage Stadium LED Screen
SMD3535 IP65 6500 Cd/M2 P10 Stage Stadium LED Screen
SMD3535 IP65 6500 Cd/M2 P10 Stage Stadium LED Screen
SMD3535 IP65 6500 Cd/M2 P10 Stage Stadium LED Screen
SMD3535 IP65 6500 Cd/M2 P10 Stage Stadium LED Screen
Specifications
Brand Name :
XGCLED
Model Number :
P10 Stadium LED display
Place of Origin :
Shen Zhen ,China
MOQ :
1 square meters
Price :
$550~650USD/㎡
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000 square meter per month
Delivery Time :
7-20days
Packaging Details :
Cartons , wooden case , fright case
Model :
P10 Stadium stage outdoor LED display
Pixel pitch :
10mm
Module size :
320mmX160mm
LED lamp :
SMD 3535
Module resolution :
32*16pixels
Material :
Die casting Aluminum
Weight :
30kg
Refresh rate :
1920Hz
Grey level :
14bit
Environmental :
Outdoor
Waterproof IP :
IP65
Ave/Max power consumption :
400W/㎡~1000W/ ㎡
Description

2020 Hot selling stadium LED display LED video wall for stage display screen

About company

Shen Zhen XGCLED Technolgy Co., Ltd has been devoting to high -quality LED display designing & manufacturing for over 16 years since 2017.

Fully equipped with professional team and modern facilites to manufacture fine LED display products are widely spread across 100 conuntires all over world , covering Asia , Middle East , America ,Europe and Africa, from stadium to TV station , to conference & event , XGCLED provides a wide range of eye-casting and energy efficient LED screen solutions to industrial to industrial , commercial and government markets worldwide .

Technical Parameter and Quotation for PH10 Outdoor Perimeter Led Display
Module Specifications
1 Pixel Pitch 10mm
2 Led Type SMD3535
3 Module Size 320x160mm
4 Module Resolution 32x16 pixels
5 Driving IC MBI5124
6 LED lamp Nationstar
Cabinet Specification
1 Cabinet Size 960x960mm
2 Cabinet Resolution 96x96 pixels
3 Module Qty. 3x6pcs
4 Cabinet Materials Die-casting Aluminum
5 Cabinet Weight < 45Kg
Screen Parameters
1 Screen Size 432X0.96m
2 Screen Resolution 43200x160
3 Cabinet Qty. 450
4 Brightness ≥6500cd/m2
5 Scanning Mode 1/2scan
6 Viewing Angle H:140°;V:140°
7 Viewing Distance >10m
8 Gray Level 16 Bit
9 Refresh Frequency ≥1920 Hz
10 Power Input AC 220-240V
11 Power Comsuption Max: 900W/㎡ Average: 300W/㎡
12 MTBF--hours >10,000 hours
13 Life--hours ≥100,000 hours
14 IP Grade IP65
15 Operating Temperature -30℃~ 60℃
16 Storage Humidity 10℃~90℃RH
17 Control Syetem Novastar
18 Operating System Windows98/2000/NT/XP
19 Power Supply G-ENERGY
20 Maintance Access Back service

SMD3535 IP65 6500 Cd/M2 P10 Stage Stadium LED Screen

SMD3535 IP65 6500 Cd/M2 P10 Stage Stadium LED Screen

Service and Warranty

Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.

In-sale service:
1.Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.

After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual
and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
