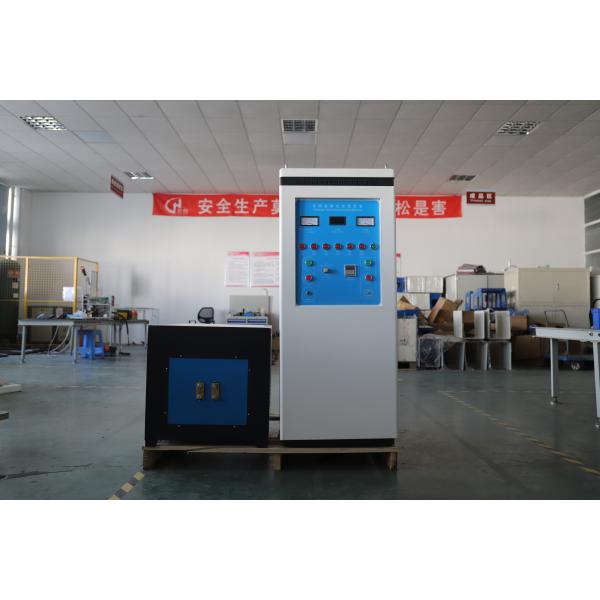

Intermediate Frequency Induction Heating Machine 120KW For Metal Forging
Intermediate Frequency Induction Heating Machine 120KW For Metal Forging
Specifications
Brand Name :
Hongchuang
Model Number :
ZP-120-SJ
Certification :
CE,ISO
Place of Origin :
Jiangsu,China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
Western Union, L/C, D/A, D/P, T/T, MoneyGram
Supply Ability :
100 Set/Sets per Month
Delivery Time :
3-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.
Packaging Details :
The normal package is plywood box.If need, we will pack it according to customers' special request.
Name :
Intermediate Frequency Induction Heating Machine For Metal Forging and Melting 120KW
Working Theory :
Electromagnetic Induction Heating
Voltage :
3 phase,380V,50-60Hz
Power :
120KW
Duty Cycle :
100%
Frequency :
0.5-10KHz
Water flow :
10-20m³/h
Cooling Method :
Water cooling
Applicable Industries :
Machinery Repair Shops, Manufacturing Plant
After Warranty Service :
Video technical support, Online support
Description

Intermediate Frequency Induction Heating Machine For Metal Forging and Melting 120KW

Main characteristics:

1.With high frequency up to 150KHZ , and very thin and tiny parts can be easily heated.


2.IGBT and current inverting technologies have been used; higher reliability and lower maintenace cost.


3.100% duty cycle, continuous working is allowed at maximum power output.


4.Constant current or constant power status can be selected accordingly to achieve higher heating efficiency;


5.Display of heating power and heating current and oscillating frequency.


6.Simple to install , installation can be done by unprofessional person very easily;


7.Light weight, small size;


8.different shape and size of induction coil can be changed easily to heat different parts.

9.Advantages of the model with timer: the power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability.

Technical parameters:

Item Model

ZP-120
Rated Voltage(V)

380V/50Hz
Input Power(kVA)

5~120
Input Oscillation Frequency(kHz)

3~19
Load Duration

100%
Cooling Water Pressure(Mpa)

0.25~0.4
Output Water Flow(L/Min)35

35~50

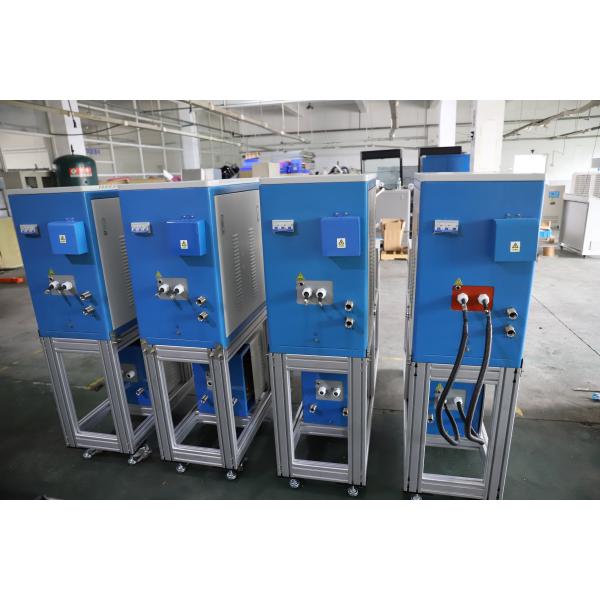

Intermediate Frequency Induction Heating Machine 120KW For Metal Forging

Intermediate Frequency Induction Heating Machine 120KW For Metal Forging

Main applications:

Medium frequency machines are usually used in the penetration heating occasions, for example, rod heating for forging rod end heating


Melting of almost all kinds of metals


Heating of stators or rotors for fitting


Heating of tube end for extrusion


Heating of moulds deep quenching of shafts and gears tempering or preheating of weld joint and so on

Intermediate Frequency Induction Heating Machine 120KW For Metal Forging

Intermediate Frequency Induction Heating Machine 120KW For Metal Forging
