IGBT Plating Rectifier For Chrome,Copper,Zinc,Nickel,Gold,Silver Anti-Corrosion
IGBT Plating Rectifier For Chrome,Copper,Zinc,Nickel,Gold,Silver Anti-Corrosion
Specifications
Brand Name :
Hongchuang
Certification :
ISO9001:2008
Place of Origin :
Jiangsu, China
MOQ :
1 set
Payment Terms :
D/A, D/P, Western Union, MoneyGram, T/T, L/C
Supply Ability :
300 Unit/Units per Month
Delivery Time :
7-15days after payment
Packaging Details :
Plywood case for export
Name :
IGBT Plating Rectifier For Chrome,Copper,Zinc,Nickel,Gold,Silver Anti-Corrosion
Output Type :
Single
Output Frequency :
20KHZ
Input Voltage :
380V
Input voltage :
Three phase AC220V/380V/415V/440V
Output current :
0-500A/1000A/2000A/3000A/5000A/8000A/10000A
Efficiency :
≥90%
Communication protocol :
MODBUS/PROFIBUS/PROFINET
Output Power :
>500W
Application :
Nickel copper zinc chrome plating;water treatment
Description

IGBT Plating Rectifier For Chrome,Copper,Zinc,Nickel,Gold,Silver Anti-Corrosion

Product Description of Chrome Plating Rectifier:

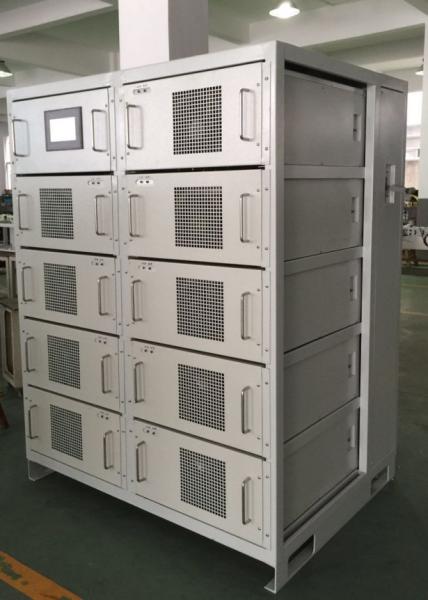

The main circuit of the rectifier cabinet adopts high-frequency rectification, and a rectifier cabinet is composed of 14 rectifier unit modules. Each unit module is mainly composed of circuit breakers, three-phase rectifier bridges, IGBTs, high-frequency transformers, diodes, etc. Input circuit breaker for overload or short circuit protection. The diode is connected in parallel with the RC absorption circuit to absorb the voltage peak during commutation to ensure the safe and reliable operation of the diode. The rectifier cabinet has two working modes, cross-current and constant voltage, which can be switched mutually. The output DC voltage and current are continuously adjustable within the range of 0-100% of the rated value. The local control mode is realized through the communication between the touch screen and the main board, and the remote control mode is realized through the analog signal.

Details of Chrome Plating Rectifier:

Item Content

Input voltage

1 phase 110V,220V;3 phase AC 380V, 480V, 415V, ±10%, 50-60Hz

Output DC current

Rated 500A~50KA

Output DC voltage

Rated 12V-48V

Protection class

Up to IP54 for water cooling, IP32 for air cooling

Efficiency

>90% @ rated output

Power factor

≥0.93 @ rated output

Ambient temp.

Max. 50°C

Cooling

Water or forced air cooling

Regulation range

Stepless at constant voltage or current 0-100%

Control precision

Voltage/current≤1%

Control mode

Constant current/voltage/power

Operation mode

Manual/remote

Manual control

Local digital panle Remote digital box

Relative humidity

15%-85%RH

PLC interface

RS485, 0-10V/4-20mA

Communication protocol

MODBUS,Profibus, Profinet

Process programming

Available

Polarity reverse

Available

Spare parts

Available

HMI

Touch panel or digital meters/buttons

Package

Plywood case for export

Advantages of Chrome Plating Rectifier:

High Power Rectifiers ensure your process operating under all conditions

High performance – the base for your productivity:

− High Reliability: every measure to ensure the reliability of the system, thyristor N-1 redundancy, heat exchanger redundancy.

− Power Saving: optimized design to get maximized efficiency

− High accuracy DC output current control

− Low output ripple

− High power factor

− Friendly HMI

Lowest total cost:

− Maximized availability

− Maximized electrical efficiency

− Minimized maintenance

− Highest personnel safety

− Longest lifetime: properly maintained rectifier system can last more than 25 years

− Shortest installation and commissioning

Smart digital control for immunity to interference, good automatic control system, for your easy operation and control

Life cycle service – for customer satisfaction: technical training, local service, always online

Production details of Chrome Plating Rectifier:

IGBT Plating Rectifier For Chrome,Copper,Zinc,Nickel,Gold,Silver Anti-Corrosion

IGBT Plating Rectifier For Chrome,Copper,Zinc,Nickel,Gold,Silver Anti-Corrosion
