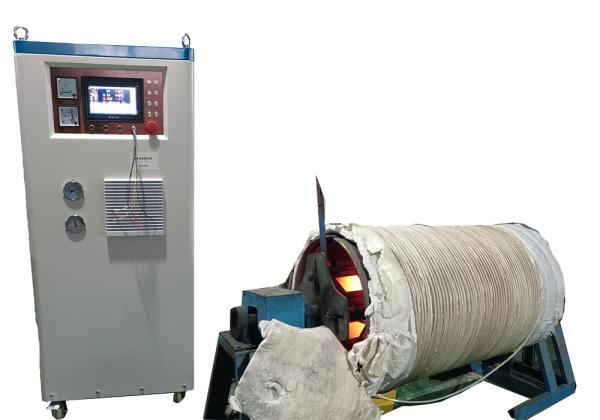

IGBT 300A Air Cooled Medium Frequency Heating Assembly And Disassembly Machine PWHT Induction Heater

Features:

1. Low Frequency good for metal's hot forging, melting. Fast Speed heating and melting.

2. Front Panel use the LCD Touch Screen, Key and Power Switch, all digital display, can use Switch Signal( Electrical frequency signal) to control the machine start and stop, and control the power via PLC.

Visual Human-computer Interface makes the operator feel more intimate and intuitive.

3. Induction Heating Machine have remote control function and adopt digital circuit control, power regulation can be adjusted from 1% to 100% resolution, and digital PID temperature control module can be configured to set the target temperature of workpiece (infrared temperature measurement automatically)

4. There are 5 working model, manual, timer, Fixed temperature, Constant temperature, section heating model.

5. Preheat, heat assembly and disassembly for shaft roll into the shaft sleeves.

6. Can connect big induction coils to work.

7. Infineon IGBT and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost.
8. 100% Duty cycle, continuous working is allowed at maximum power output.
9. Simple to install, Installation can be done by unprofessional person very easily;

10. Energy Saving Up to 20-30% compare with SCR machine.

11. Diode Rectification Technology Make sure high power factory—0.98.

12. Soft Switch Technology And prefect Protection system( Over Heat, Over Current, Under Voltage, Over Voltage, Phase Fail, Lack Water) enhance Good Reliability.

13. The machine has the Isolation Transfromer, will be very safe operate our machine.

Technical Parameters:

Application:

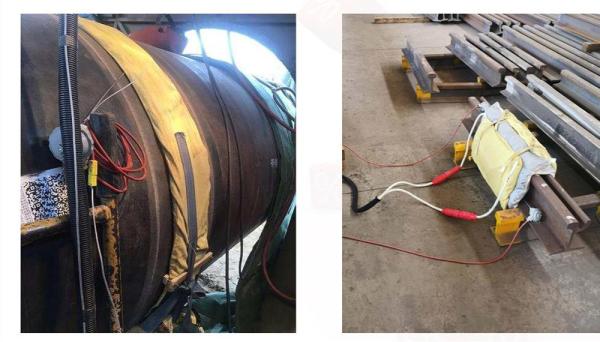

Preheating before welding, hydrogen elimination after welding, stress relief heat treatment, heat jacket heat removal, diathermy, hot forging, etc

Application Industries: Nuclear power, military, marine, chemical, power construction, vehicles, engineering machinery, pressure vessels, scientific research.

Advantage:

1. Easy to operate, can programme

2. High Waterproof.

3. Can bear high temperature, allow the max environment temperature reach to 180C.

4. High safety.

5. Full digital

6. Anti-interference.

Control Function:

Main wire Switch

Main Part Switch

Remote Switch

System safety Protection

Phase protection

Timmer Switch

Over-heating protection

Over-voltage protection

Over-current Protection

Phase Fail Protection

Power can programme

Display function:

Temperature Checking Display

Time setting Display

Working Model Display

Working state display

Failure inquire display
