30-80Khz High Frequency Induction Heating Machine HF-90AB Induction Brazing Machine
30-80Khz High Frequency Induction Heating Machine HF-90AB Induction Brazing Machine
30-80Khz High Frequency Induction Heating Machine HF-90AB Induction Brazing Machine
30-80Khz High Frequency Induction Heating Machine HF-90AB Induction Brazing Machine
30-80Khz High Frequency Induction Heating Machine HF-90AB Induction Brazing Machine
30-80Khz High Frequency Induction Heating Machine HF-90AB Induction Brazing Machine
30-80Khz High Frequency Induction Heating Machine HF-90AB Induction Brazing Machine
30-80Khz High Frequency Induction Heating Machine HF-90AB Induction Brazing Machine
Specifications
Brand Name :
ORD
Model Number :
HF-80AB
Certification :
CE,SGS,ISO
Place of Origin :
CHINA
MOQ :
1SET
Price :
USD3,820-USD4,850
Supply Ability :
200SET/Month Goods in Stock
Delivery Time :
1-2 Work days
Packaging Details :
Exported Wooden Box
Name :
High Frequency Induction Equipment
Model :
HF-90AB
Standard :
CE, SGS, ISO
Application :
Quenching, Hardening, Annealing, Brazing, Soldering
Work Voltage :
380V/ 415V* 3Phase 50-60Hz
Max Output Power :
90KW
Working Frequency :
30-80KHZ
Input Current :
90A
Duty cycle :
100% (40 degree room temperature)
Control Way :
Infineon IGBT
Protection System :
Over Current, Over Voltage, Phase Fail, Under Voltage, Over Heat, Water Lack
Description

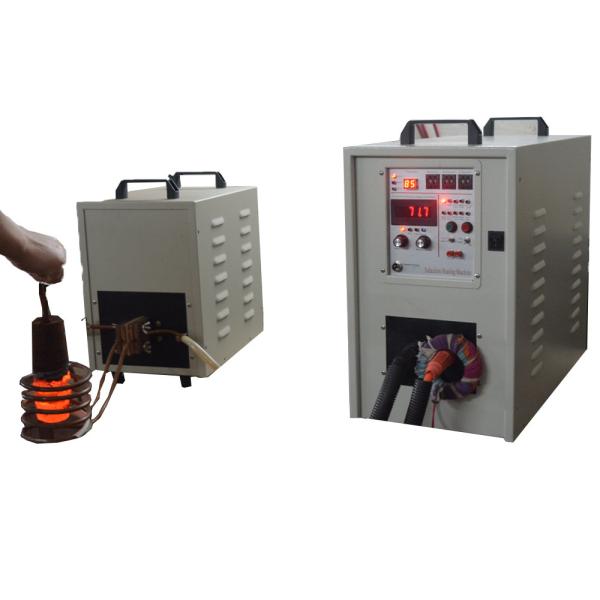

30-80Khz High Frequency Induction Heating Machine HF-90AB

Specfiction:

1. Non-contact Heating is the biggest Characteristic of the induction heating.

2. Small Size, light weight, it is easy to operate, no need professinal person to work it.

3. High Frequency, high speed heating, good for quenching, hardening, soldering and so on!

4. The temperature is easy to control and realize automatic control. It can ensure the consistency of product quality and aviod hidden dangers caused by human.

5. The machine has isolation transformer, output Voltage is safty voltage lower than 36V. Every safe to operate our machine.

6. Infineon IGBT module and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost.
7. 100% Duty cycle, continuous working is allowed at maximum power output.

8. Energy Saving Up to 20-30% compare with SCR machine.

9. Soft Switch Technology And prefect Protection system ( Over Heat, Over Current, Under Voltage, Over Voltage, Phase Fail, Lack Water) enhance Good Reliability.

Technical Parameters:

Type HF -90AB
Work power 380V*3phase 50-60HZ
The range of operating voltage 360-480VAC
Output power 90KW
Input current 90A
Fluctuating frequency 30-80KHZ
Timing (Heat time, Retain time , Cool time) 1-99S
The flow rate of cooling water 0.08-0.16 Mpa 11L/Min
Water temperature protection point 40℃
Duty cycle 100% (40degree room temperature)
Weight

Main parts: 65Kg

Transformer Parts:60kg
Size

Main parts:675*325*655mm

Transformer Part: 530*300*475mm

Application:

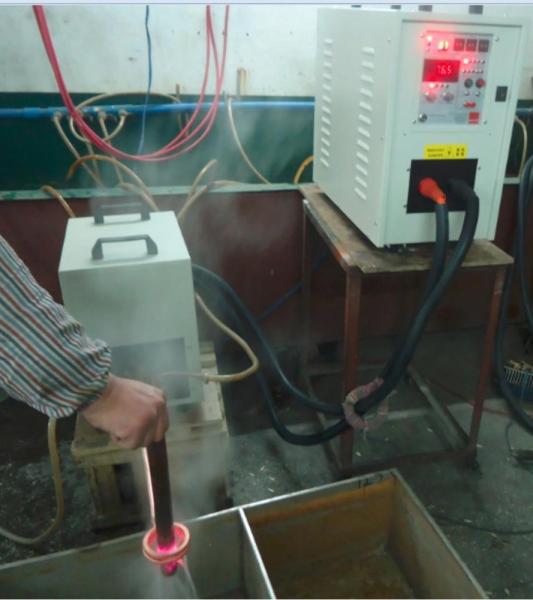

1. Heat Treatment All Kinds of the Metal, for example, shaft, gear, pipe and so on!

2. Soldering copper and copper fittings, Soldering Copper with Brass plate, Soldering Copper with S.S. Soldering Alum with Alum.

3. Annealing all kinds of the metal, S.S/ Copper / Alum pipe and Plate,Strip Online Annealing

4. Hot Forging for Copper and brass Fittings, Hot Forging for Steel Bar and steel Plate. Hot Forging before Stamp.

5. Melt Gold, Silver, Platium, Stainless Steel, Steel, Iron, Alum, Zinc and all kinds of metal.

Advantage:
1. Fast Delivering, we have goods in our stock, within 1-2 days can ship the goods to you!

2. 22 Years Experiences for such field, CE cerficated, High quality and stable performance!

3. 20-30% Energy saving compare with SCR machine!

4. Warranty time: Within 18 months from the date of delivering, 12months from date of receiving.
5. 24hours*7days Online Service, can solve the problem in time.

6. Within warranty all parts are free for customer for Quality problem.
