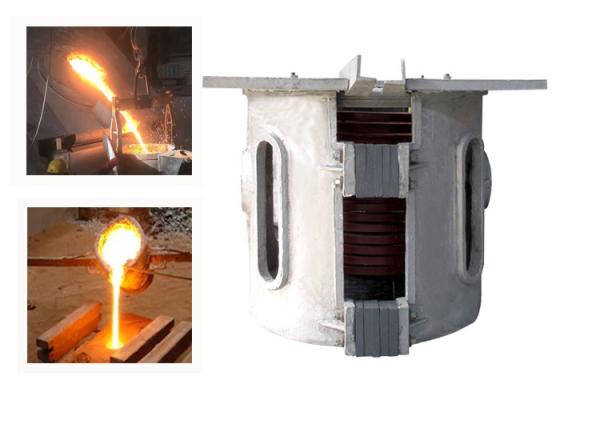

100kg 250kg 500kg 750kg 1T Tilting Furnace Electric Smelting Metal Melting Industrial Furnace
100kg 250kg 500kg 750kg 1T Tilting Furnace Electric Smelting Metal Melting Industrial Furnace
100kg 250kg 500kg 750kg 1T Tilting Furnace Electric Smelting Metal Melting Industrial Furnace
100kg 250kg 500kg 750kg 1T Tilting Furnace Electric Smelting Metal Melting Industrial Furnace
100kg 250kg 500kg 750kg 1T Tilting Furnace Electric Smelting Metal Melting Industrial Furnace
100kg 250kg 500kg 750kg 1T Tilting Furnace Electric Smelting Metal Melting Industrial Furnace
100kg 250kg 500kg 750kg 1T Tilting Furnace Electric Smelting Metal Melting Industrial Furnace
100kg 250kg 500kg 750kg 1T Tilting Furnace Electric Smelting Metal Melting Industrial Furnace
Specifications
Brand Name :
Lanshuo
Model Number :
KGPS-1T/800KW
Certification :
CE ISO EAC
Place of Origin :
China
MOQ :
1 set
Price :
USD 13000-20000 per set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 sets per year
Delivery Time :
7-10 working days
Packaging Details :
plywood case, about 9cbm, about 2.8T
Type :
Induction Melting Furnace
Power Source :
electricity
Melting Material :
500kg 750kg 1000kg Iron Steel Copper Aluminum Lead Gold Silver
Rated Temperature :
1800°c
Rated Power :
800KW
Voltage :
3-phase 380v, 50/60HZ
MF Frequency :
1KHZ
Medium Voltage :
750v Phase
DC Voltage :
500V Phase
DC Current :
1600A Phase
Color :
Customizable
Description

100kg 250kg 500kg 750kg 1000kg metal iron steel copper bronze aluminum scrap melting furnace industrial furnace

100kg 250kg 500kg 750kg 1T Tilting Furnace Electric Smelting Metal Melting Industrial Furnace

1. Brief Introduction of Medium Frequency Induction Melting Furnace:

Through long-term practical test, constant power (energy-saving) Intermediate frequency induction melting furnace has been widely praised among customers. What’s more, our melting furnace has made some improvements based on its original type, and its property is becoming more excellent.

2. Features of KGPS induction melting furnace:

a. High melting rate.

b. Good-quality molten steel, high casting product yield.
c. High power factor. During the machine’s operation, the power factor can reach over 97%.

d. No harm to the power gird.

e. Low power consumption, saving over 10% energy.

f. High start-up success rate. Under any load, the start-up success rate is 100%.

g. The main control panel adopts plug-in connector, easier maintenance.
h. Simple to install. Installation can be done by unprofessional workers very easily.
i. The melting furnace adopts series thyristor, making the SCR damage rate to a minimum.


3. Technical Parameter of Large Induction Melting Furnace:

Model KGPS-1T/800KW
Rated Power 800kw
Rated Capacity 1T
Matching transformer's capacity 1000KVA
Voltage 380V, 50/60HZ
MF Frequency 1KHZ
Medium Voltage 750V Phase
DC Voltage 500V Phase
DC Current 1600A Phase
Rated Temperature 1800°C
Closed Loop Water Cooling Tower LSN-80B

100kg 250kg 500kg 750kg 1T Tilting Furnace Electric Smelting Metal Melting Industrial Furnace

4. Large Induction Melting Furnace Application:

(1) iron, pig iron, cast iron;

(2) steel, stainless steel, cast steel, carbon steel and bearing steel;

(3) gold, silver, platinum;

(4) copper, brass, bronze;

(5) aluminum, aluminum alloy;

(6) zinc, lead, tin, magnesium, nickel, titanium.

100kg 250kg 500kg 750kg 1T Tilting Furnace Electric Smelting Metal Melting Industrial Furnace

5. Certificates

100kg 250kg 500kg 750kg 1T Tilting Furnace Electric Smelting Metal Melting Industrial Furnace

100kg 250kg 500kg 750kg 1T Tilting Furnace Electric Smelting Metal Melting Industrial Furnace

100kg 250kg 500kg 750kg 1T Tilting Furnace Electric Smelting Metal Melting Industrial Furnace
