50kw IGBT high frequency induction brazing/heating/welding/hardening/forging machine
50kw IGBT high frequency induction brazing/heating/welding/hardening/forging machine
50kw IGBT high frequency induction brazing/heating/welding/hardening/forging machine
50kw IGBT high frequency induction brazing/heating/welding/hardening/forging machine
50kw IGBT high frequency induction brazing/heating/welding/hardening/forging machine
50kw IGBT high frequency induction brazing/heating/welding/hardening/forging machine
50kw IGBT high frequency induction brazing/heating/welding/hardening/forging machine
50kw IGBT high frequency induction brazing/heating/welding/hardening/forging machine
50kw IGBT high frequency induction brazing/heating/welding/hardening/forging machine
50kw IGBT high frequency induction brazing/heating/welding/hardening/forging machine
50kw IGBT high frequency induction brazing/heating/welding/hardening/forging machine
50kw IGBT high frequency induction brazing/heating/welding/hardening/forging machine
Specifications
Brand Name :
ZHENGZHOU LANSHUO
Model Number :
LSW-50
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
2500USD
Payment Terms :
T/T
Delivery Time :
3-5 WORKING DAYS
Packaging Details :
WOODEN CASE
Power :
High Frequency
Oscillation Frequency :
18-25KHZ
Input voltage :
Three phase electricity 380V/50-60HZ
Rated power :
50KW
Description
Parameter
Rated power 50KW
Input voltage Three phase electricity 380V/50-60HZ
DC voltage 500V
DC current 75A
The heating frequency 18-25KHZ
Air switch 3*100A
Ground wire 1mm² copper core wire
Water pressure 0.15-0.2MPa
Weight(after packing) 140KG
Dimension(after packing) 670mm*820mm*1460mm
Cooling water requirement 2.5m³water tank or 4T closed cooling water tower

Electricity Installation
Input power cord 35mm² copper core wire
Input power control switch 3*150A
Equipment ground wire 1mm² copper core wire

Cooling water installation
Control cabinet water interface quantity water inlet:one water outlet:one
Auxiliary engine water interface quantity water inlet:one water outlet:one
Water pipe specification connecting equipment water intake pipe:internal diameter 25mm
Connecting equipment water outtake pipe:internal diameter 25mm

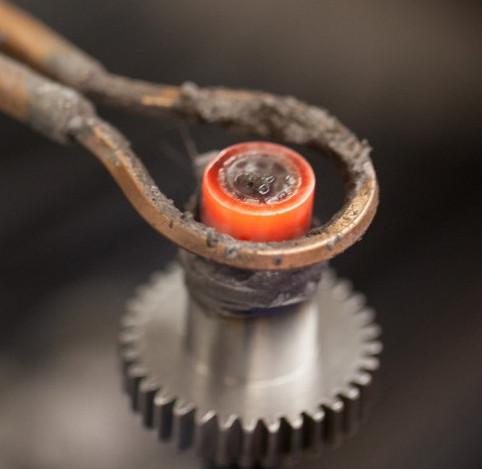

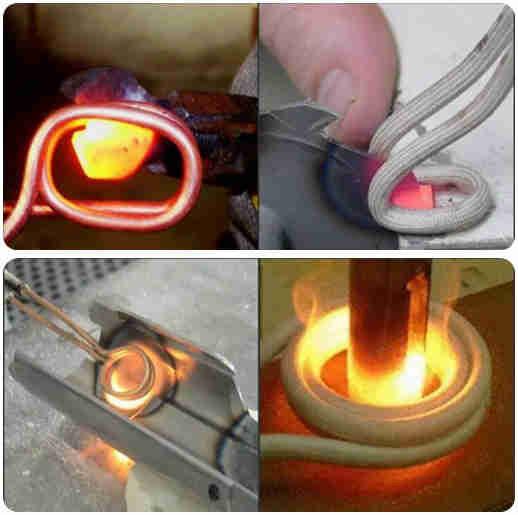

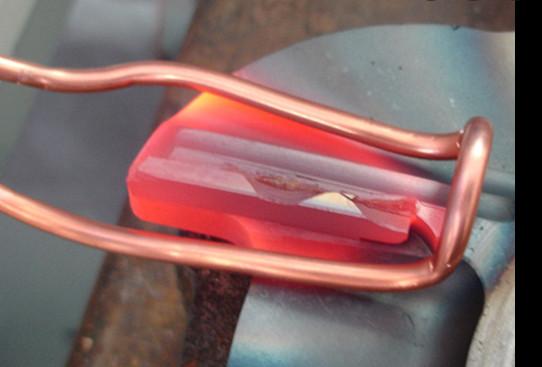

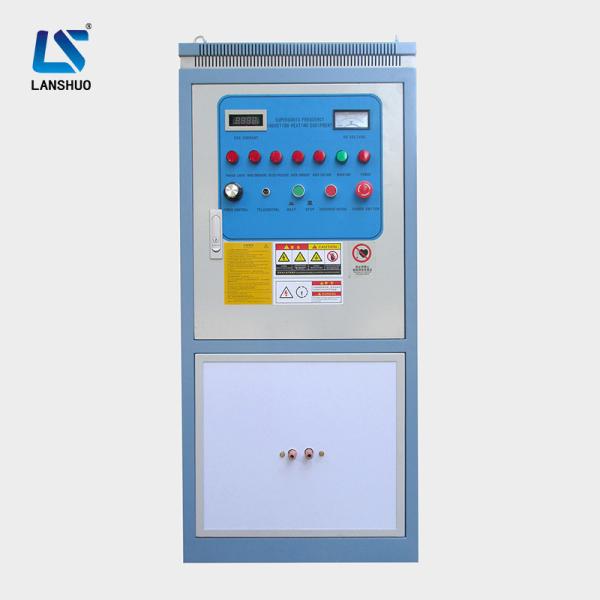

Pictures:

50kw IGBT high frequency induction brazing/heating/welding/hardening/forging machine

50kw IGBT high frequency induction brazing/heating/welding/hardening/forging machine

50kw IGBT high frequency induction brazing/heating/welding/hardening/forging machine

50kw IGBT high frequency induction brazing/heating/welding/hardening/forging machine
